Radio installation Help??

Post by Polo2007boi »

Heya guys newbie here, I don't suppose anyone can help me with my radio I'm trying to install?

I have a 2007 VW Polo and I'm trying to change the radio from the original to a 2 din one, I got the old one out but I'm having issues with the new one it. Keeps doing the following below..
it comes on won't go off though.....

second i cant get the speakers to work....

i am new at this and wish i never started now LOL...

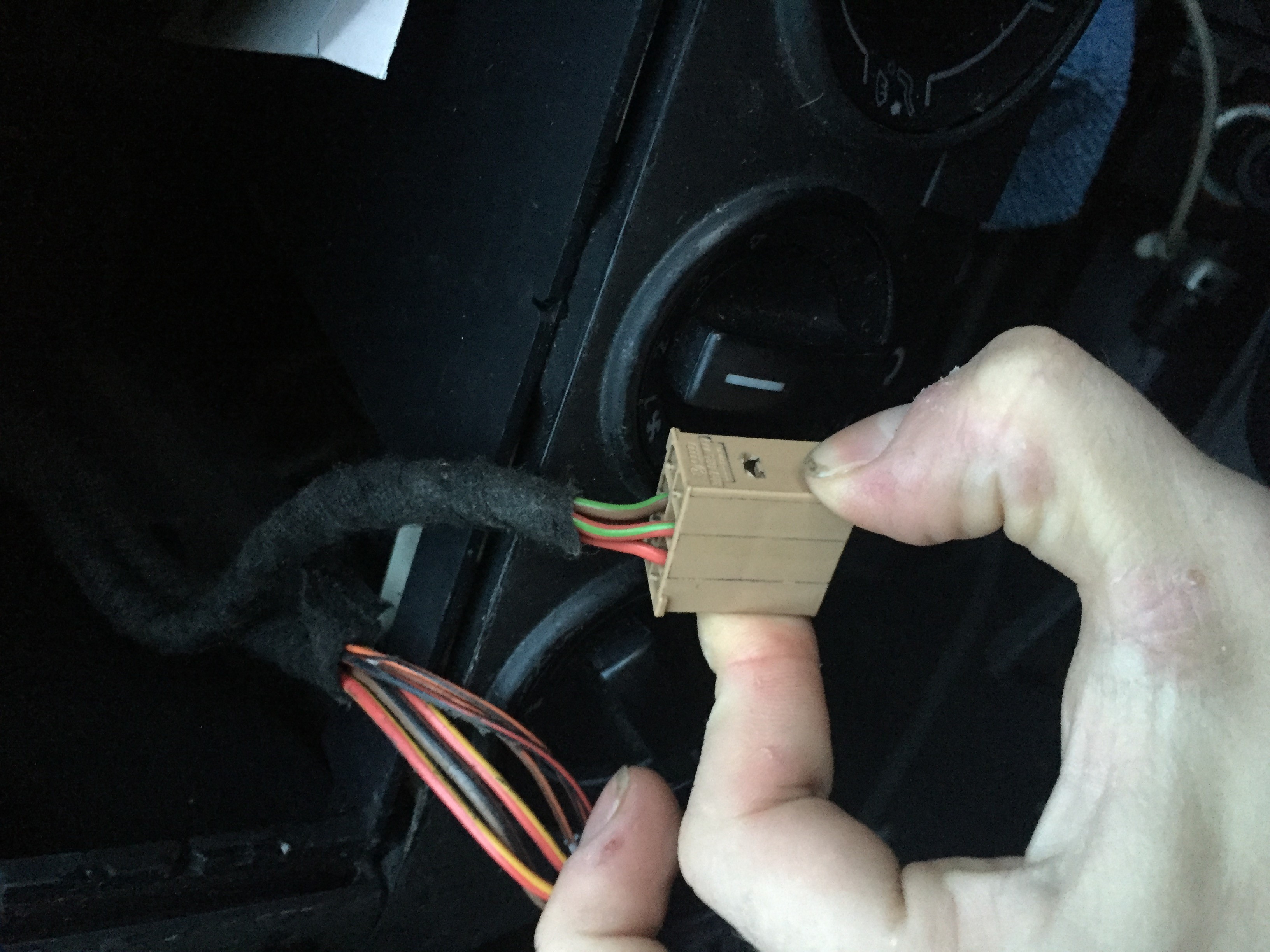

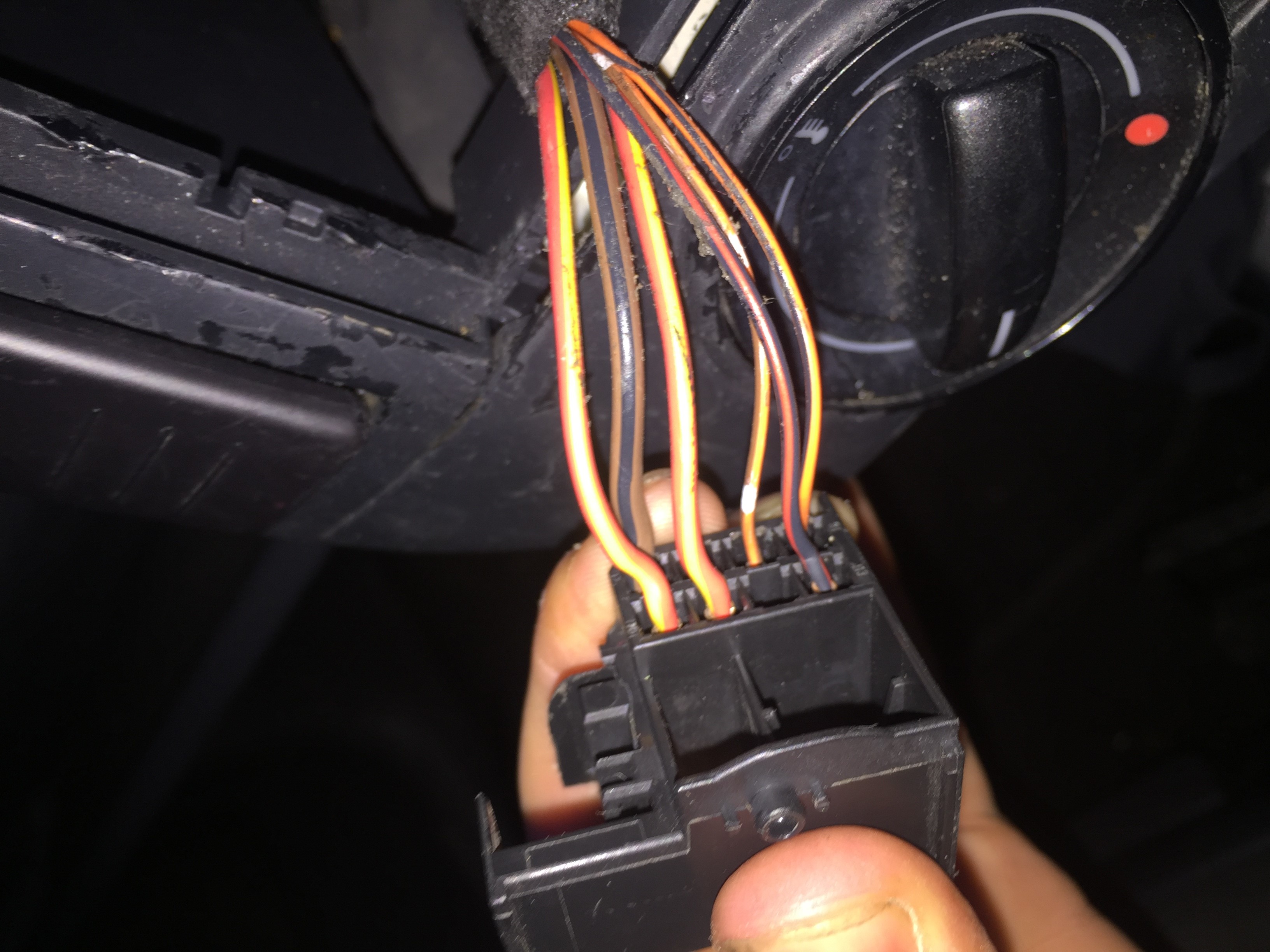

In the Brown box connector i only have 4 wires

pins
#5- empty. #1 - empty
#6 - wire - brown/red #2 - wire - red
#7 - wire- brown/green #3 - wire- red/green
#8 -empty. #4 - empty

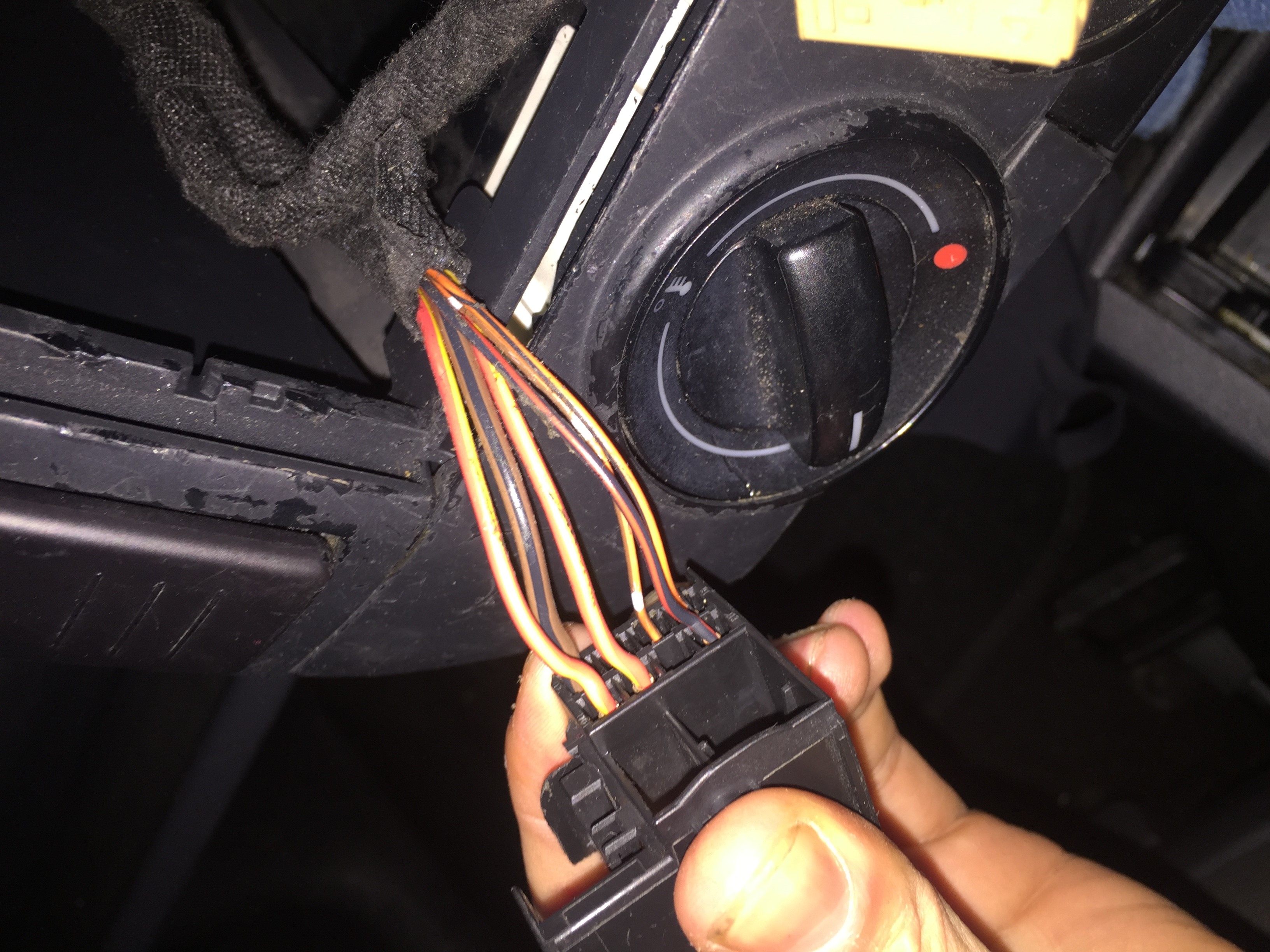

black box connector

pins
#9 - wire - orange/black. #13 - wire - red/black
#10 - wire - orange/black. #14 - empty
#11 - empty. #15 - yellow/red
#12 - wire -brown/black (ground) #16 - yellow/red


If anyone can help by telling me what colour goes in what pin that help me ;p, i'm using a ISO adapters but i also have the universal ones to if helps.


thanks again

Alex
Attachments
User avatar
alexperkins
Site Admin
Posts: 14867
Joined: Sat Nov 11, 2006 5:29 pm
Drives: 91 Golf GTI, 01 TT 225, 54 T5 174
Location: Poole, Dorset, UK.
Contact:

Re: Radio installation Help??

Post by alexperkins »

Oh no, you've made a bit of a mess there!!

You need a quad lock to ISO adapter loom - what you've done splitting the plugs won't help you at all

https://www.halfords.com/technology/car ... 81915.html

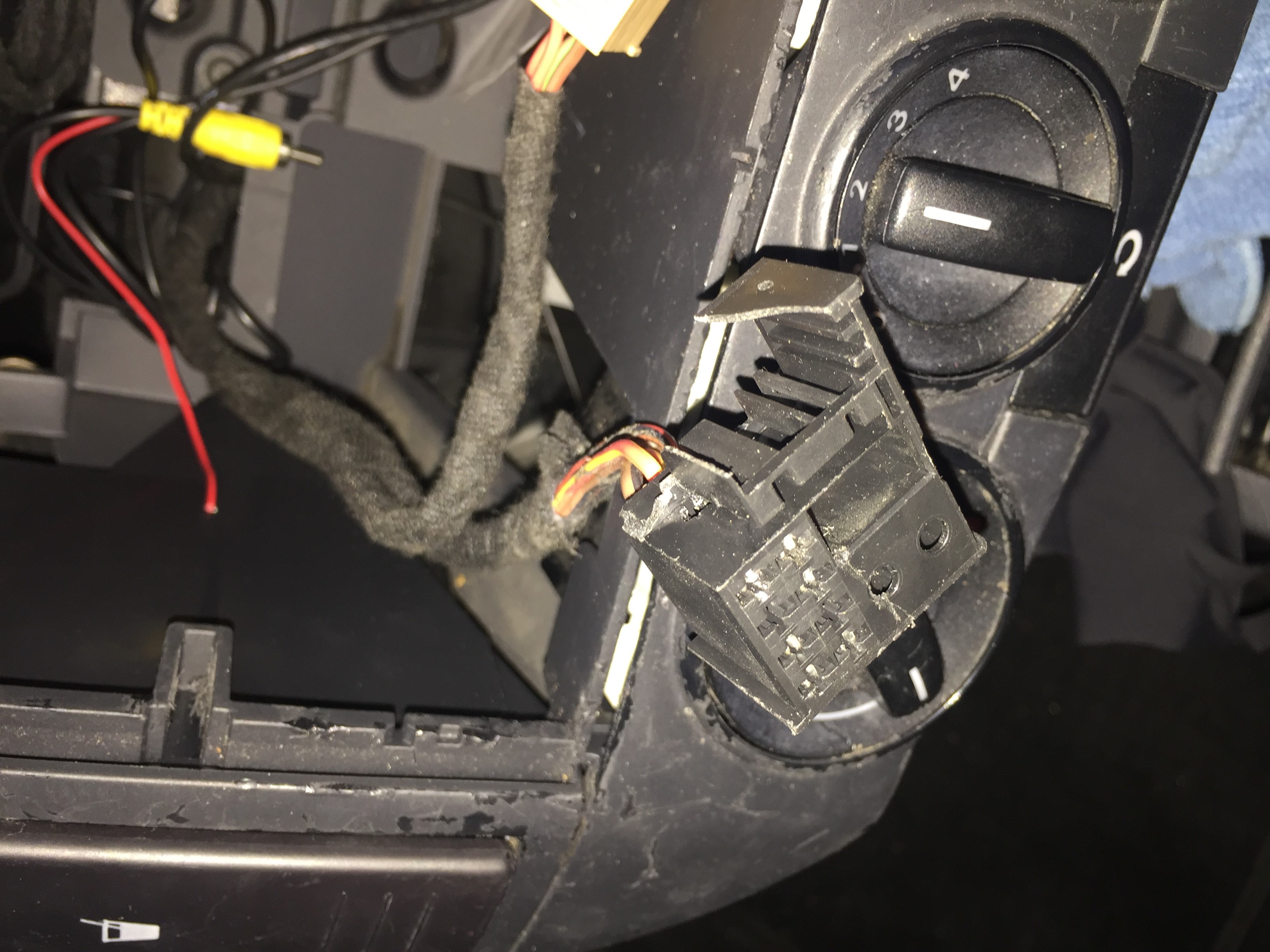

This will sort your issues out, but you'll need a new quad lock housing first which is probably 3B7035444 from the dealer - you should have it on the black plastic housing you have broken up

You'll also need a wiring tool to release and move the wires between the old and new housing like this https://www.amazon.co.uk/Laser-3932-Ter ... ive&sr=1-8
Polo2007boi
New
Posts: 5
Joined: Sat Oct 03, 2020 3:42 pm
Drives: 2007 VW POLO
Location: UK

Re: Radio installation Help??

Post by Polo2007boi »

LOL hey, i know mind you that plastic casing it had was already broken i think somoene else tried to do it then gave up :p

I have managed to get the radio to come on and go off with the ignition switch after having to re route the wire it to the cig lighter ignition, now i just trying to sort out the speakers as i'm getting no sound from them even with a ISO harness hmm
User avatar
alexperkins
Site Admin
Posts: 14867
Joined: Sat Nov 11, 2006 5:29 pm
Drives: 91 Golf GTI, 01 TT 225, 54 T5 174
Location: Poole, Dorset, UK.
Contact:

Re: Radio installation Help??

Post by alexperkins »

Ouch!

6 - wire - brown/red #2 - wire - red
#7 - wire- brown/green #3 - wire- red/green

On the above the brown/ wire is the negative speaker terminal

If you have no sound after wiring 6/2 to one side and 7/3 to the other, you may want to look to see if someone has kindly played with the door speakers for you!
Polo2007boi
New
Posts: 5
Joined: Sat Oct 03, 2020 3:42 pm
Drives: 2007 VW POLO
Location: UK

Re: Radio installation Help??

Post by Polo2007boi »

Awww cheers mate i will give it a try tomz and we shall see....Dum Dum Duuum LOL :P
Polo2007boi
New
Posts: 5
Joined: Sat Oct 03, 2020 3:42 pm
Drives: 2007 VW POLO
Location: UK

Re: Radio installation Help??

Post by Polo2007boi »

So still nothing just not getting any sound... think i might have to take it to a expert ...so bloody annoying as well because i'm like half way there it only these speakers URGHH!! lol
User avatar
alexperkins
Site Admin
Posts: 14867
Joined: Sat Nov 11, 2006 5:29 pm
Drives: 91 Golf GTI, 01 TT 225, 54 T5 174
Location: Poole, Dorset, UK.
Contact:

Re: Radio installation Help??

Post by alexperkins »

Does seem like it’s been played with. My caddy I bought recently had both speakers unplugged in the doors....no idea why!
