VW Sharan 7N MY 2011

WVWZZZ7NZB

It was bought in Germany 5 years ago ...

Hi again,

retrofitted done ... everything works perfect except one issue

When the ignition is ON and the headlamp switch is in the "0" position the DRL are activated ...

This only should occur in the "AUTO" position (DRL are activated in this position). I've cheked with my VW Sharan and with the ...

After reading some threads ...

is this the right coding once we have done the new installation???

6CB8697808410C0093A809316E8B86C4F8C2670F60851841B2A004000000

ciclo wrote: Thu Feb 20, 2020 8:22 am Hi Santos.
Thanks for the report.

So, is your Beetle with original LED License Plate Lights?

Not yet .....

I'm waiting for the new led license plate lights ... Then I'll recode the 09 module

Hello

After several days with the new coding ...

It works GREAT ...

No fault in the BCM

THX a lot ...

some pictures of what you asked ...






7fa0b295-59f9-4735-ad56-4113508d8653.jpg ...

Hi

First of all ... thanks a lot for your help ....

The car was manufactured september 2011

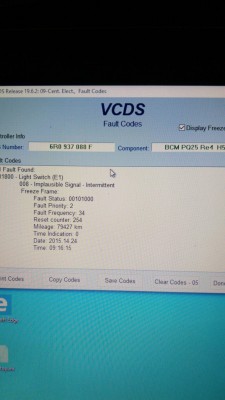

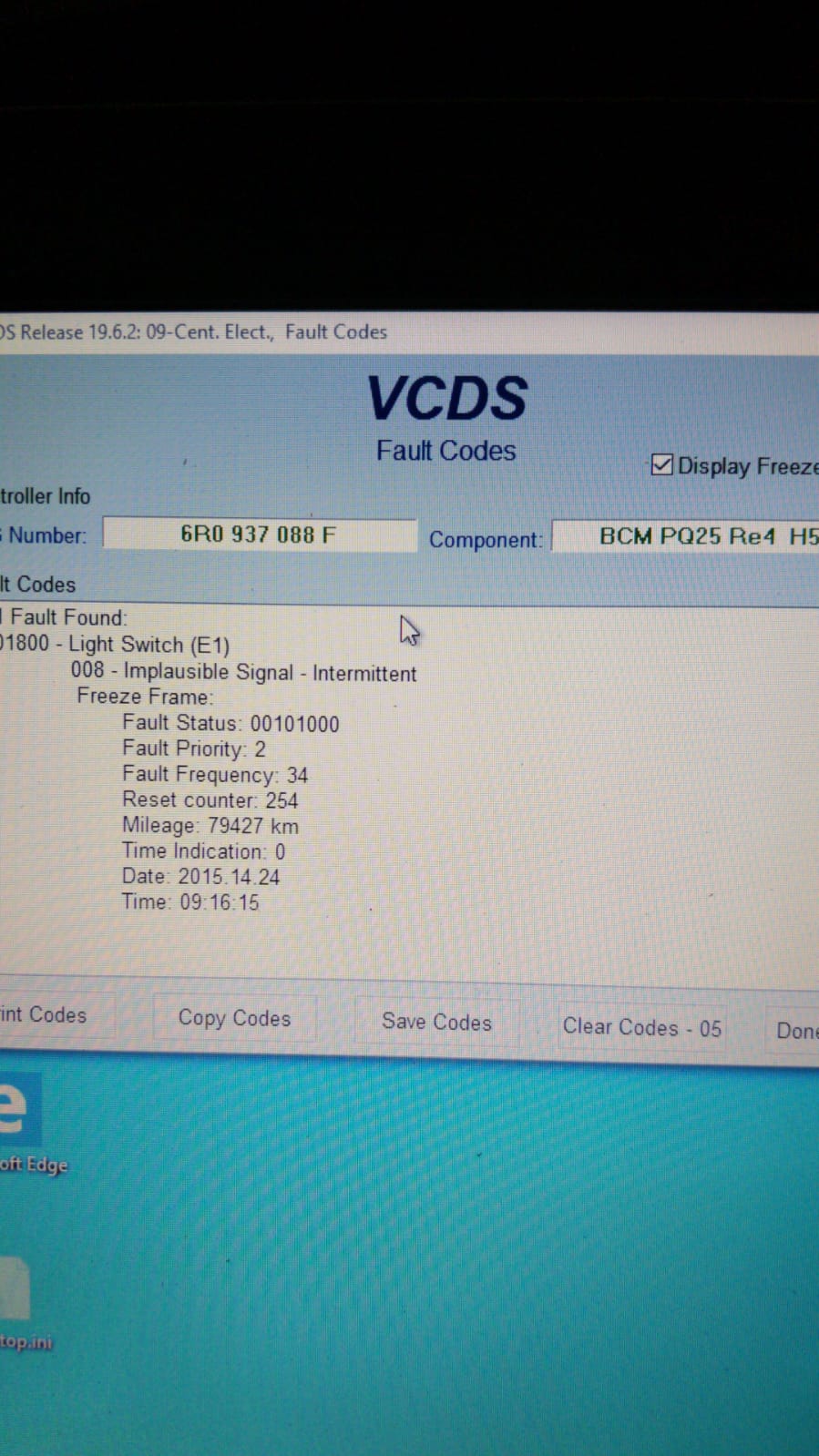

Today I'll try with the new coding, because we note there is an intermitent fault in the BCM ...

If I name the following connectors as

Original Connector ... as .... T17

New Auto Headlight connector ... as ... T10

BCM T73A ... as .... T73A

Relay Headlight ... as ... RH

Relay Fog Lights ... as ... RFL

Please, can you confirm the next electrical connexions???

T17
ORIGINAL CONNECTOR ...

Hi ciclo

THX a lot ..

I tried to upload an Autoscan, but the system says "Forbidden. Data submitted too often. Contains contacts."

Any case, you can check it here (even with the modification on BCM to retroffit OEM Bixenon)

https://forums.ross-tech.com/showthread.php?21777-Retrofit-OEM-Bixenon ...

I found this DIY in other web page

https://www.drive2.ru/l/8632361/

But the electrical diagram is very different from the one published in this forum by ciclo

The reference of the BCM is 6R0 937 088 F, and its coding is 6CB8697808410C0093A809306E0B86C4ADC2610F60840C41B2A004000000

I can't upload the autoscan we did before we retrofitted the OEM bixenon ...

These are the wiring of the actual light switch

01.- Black/Red
02.- Black/Red
03.- Yellow/Violet
04.- Black/White
05.- Empty
06.- Empty
07.- Empty
08.- Yellow/White
09.- Grey/Green
10.- Brown
11.- White/Black
12.- Empty
13.- Empty
14.- grey/red
15.- Red
16.- Empty
17.- grey

Hi,

I have a VW Bettle 5C (2012) which I want to retrofit with automatic lights.

I've studing the post and electrical wiring schemes published on this document

https://drive.google.com/file/d/0B2nv91 ... sp=sharing

But I am not sure if that scheme applies to my car ..
