Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Ibanezuv777 · Post by **Ibanezuv777** » Mon May 11, 2020 10:21 pm

iichel wrote: ↑Wed May 06, 2020 8:00 am try this please:

A0A0303A0E61242392284F702F6B8C55D680660F60871140300000000000

iichel, sorry for the late reply! That worked like a charm!
Thank you ever so much! They dim correctly, and all function well.

I’ve noticed that now the xenon lights are fitted, the bulb check warning is up for the sidelights and DRL’s, is this possible to code out? Am I right in saying that if the box is ticked, then it disables the check on that light?

Post by **iichel** » Mon May 11, 2020 10:44 pm

Box ticked means the diagnostics are active.

What error is vcds showing?

Limalex · Post by **Limalex** » Fri May 22, 2020 1:27 am

graylscott wrote: ↑Sat Dec 30, 2017 6:51 pm Hello

I'm hoping I don't get booted of here for posting this as I don't have a Polo, I have a 2013 VW Transporter T5GP.

I know they share electrical systems and I also know that this forum is where the knowledge is about these systems!

I am looking to retrofit auto-headlights and genuine bi-xenons, but I am stuck with the pesky 17pin headlight switch.

I have tried making a loom using instructions from ciclo I found on the internet.

I have changed my BCM for a 090-D as instructed to by ciclo and am now opening a new topic as requested

My problem is, that with the loom in place, everything but the main beam works.

In off position: DRLs work
In sidelight position: Sidelights work + if I pull the switch out to fogs, the foglights work.
Auto position: Nothing (no DRL and nothing when dark outside)
Main beam: Nothing (the light even goes off on the switch)
Full beam: Does not work on any switch setting
Full beam (flash): works on all settings.

The loom I made includes a fog light relay, but my fogs are factory so I'm not sure if it was needed. The fogs work as cornering lights with or without the new loom.

I'm really hoping you can help on this as everyone on the T5 forums just keep telling me to get one of those auto-headlight kits from ebay. I want OEM standard!!

Thanks in advance!

G

Sorry to jump in your post just like this, but I also a T5 owner and would love to ask you some question regarding the BCM upgrade If you do no mind.

I planning to upgrade my steering wheel and activate cruise control and maybe ACC from the steering wheel.

Is the D suffix BCM software number different or higher than this PQ25 Max4 H82 0752?

Have you had any issues with instrument lighting after upgrade?
Any issues with missing current supply?

Dazzyboy81 · Post by **Dazzyboy81** » Mon Jun 08, 2020 4:11 am

Hi ciclo,

Been a long time.... sorry to rake this thread back up but with work etc etc I’m now ready to finish what I started 18months ago.

I hope you are well and hope your still willing to assist??

Thanks

Post by **ciclo** » Mon Jun 08, 2020 6:58 am

Hi Darren, everything is fine for me, I hope you and your loved ones are fine.

We will try to help you in everything you need.

Fernando

Ibanezuv777 · Post by **Ibanezuv777** » Thu Jun 11, 2020 12:45 am

iichel wrote: ↑Mon May 11, 2020 10:44 pm Box ticked means the diagnostics are active.

What error is vcds showing?

Apologies for the very late reply iichel! Have been busy retrofitting power fold mirrors

I have cleared codes on the BCM and this has remained clear from codes for 2 days now, but still shows a bulb warning on the dash, presumably from the lower draw of the factory DRL’s? All bulbs are working fine, so I’m stumped

Post by **iichel** » Thu Jun 11, 2020 8:01 am

You can ask the bcm why it's unhappy about the lights. Or isn't there any error code?

Ibanezuv777 · Post by **Ibanezuv777** » Thu Jun 11, 2020 10:32 pm

iichel wrote: ↑Thu Jun 11, 2020 8:01 am You can ask the bcm why it's unhappy about the lights. Or isn't there any error code?

Yes that is correct, there are no errors in the BCM at all (am jumping for joy just saying that) unfortunately it does not help us in this instance.

Are you saying there is a way for the BCM to force a recheck?

reido80 · Post by **reido80** » Thu Jul 30, 2020 9:15 pm

Finally getting stuck into this........

I have most of the front end off for an EGR cooler and thermostat replacement, Not a nice job! Smoothed out a bit with the fitting a Wagner Intercooler though

I am deviating from the "plug and play" looms slightly,

I am trying to replicate the original VW wiring and fuse locations for xenon's as much as I can. (I have a copy of ERWIN to refer to) I have not worked out how to get photos from my new phone onto the PC yet but I am taking loads of pictures as I go and will get them up here.

Anyway while the front end is in the service position I thought I would get stuck in, I am replacing the loom behind the bumper from the Left headlamp to the T14 & T10bl sockets with a new VW loom, so that is sorted.

From the T14 & T10bl sockets behind the bumper, I will replace wires as needed to reach the BCM and fuse box.
Right hand headlamp same as above. It is just the wiring that goes to SB6 & SB28 fuses from the headlamps I am not sure about. for example,

It looks like I will need to use fuse SB6 for left headlamp which is a Terminal 56a feed where as the original fuse was SB5 which was a 56b terminal. Im not sure what the difference is between 56a/56b?

So far....
I have ran a new 6mm2 wire from a spare location in the "A" fuse box which I have fused with a 30amp midi fuse (its all I have at the moment) This is ran into a spare grommet behind the scuttle and will be split into 2 x 2.5mm2 wires. These will then feed fuses SC12 and SC14. These will also be fused at 30amp and then feed the BCM T73a/63 & T73b/68. The original wires for these locations will be isolated.

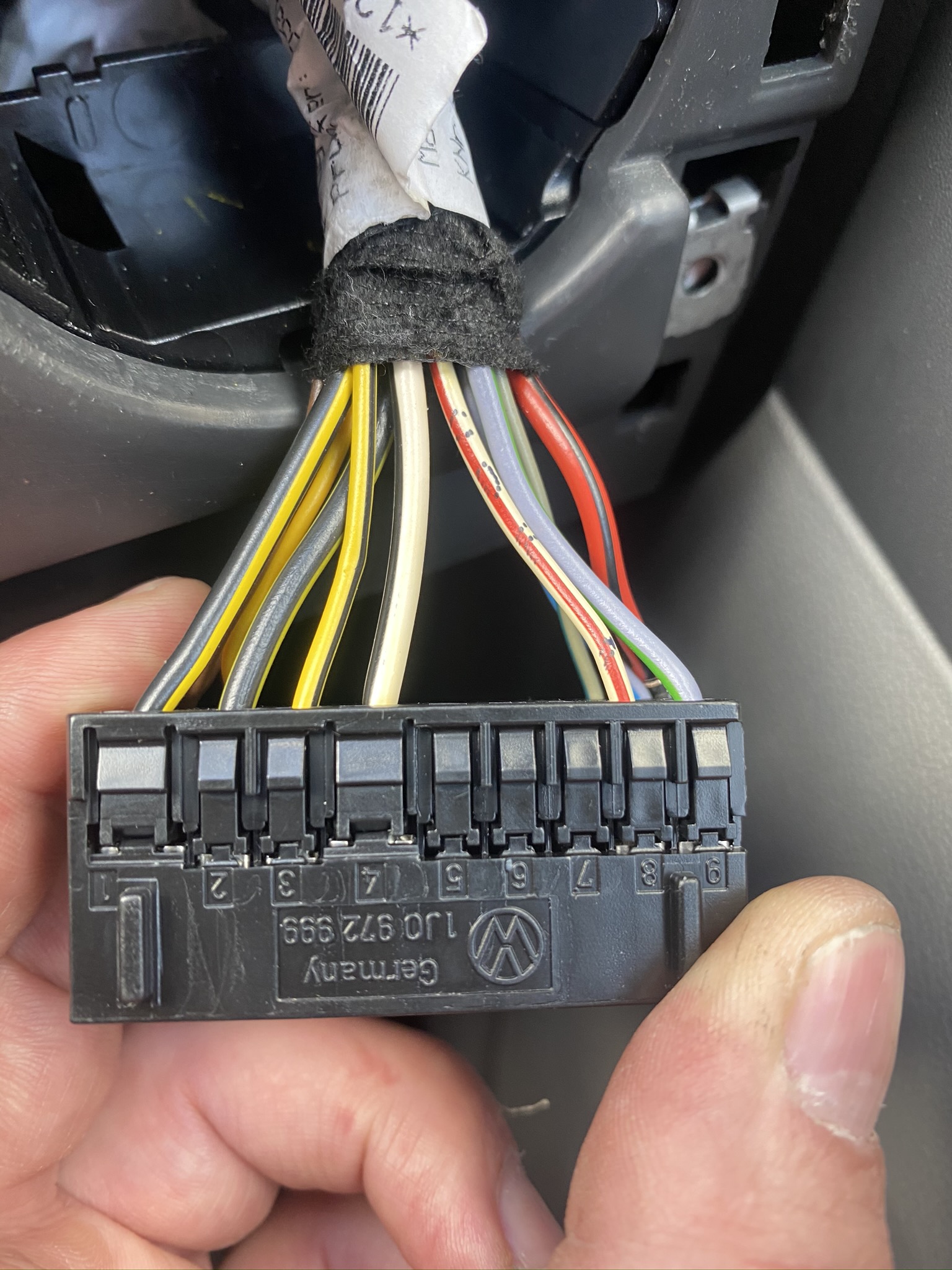

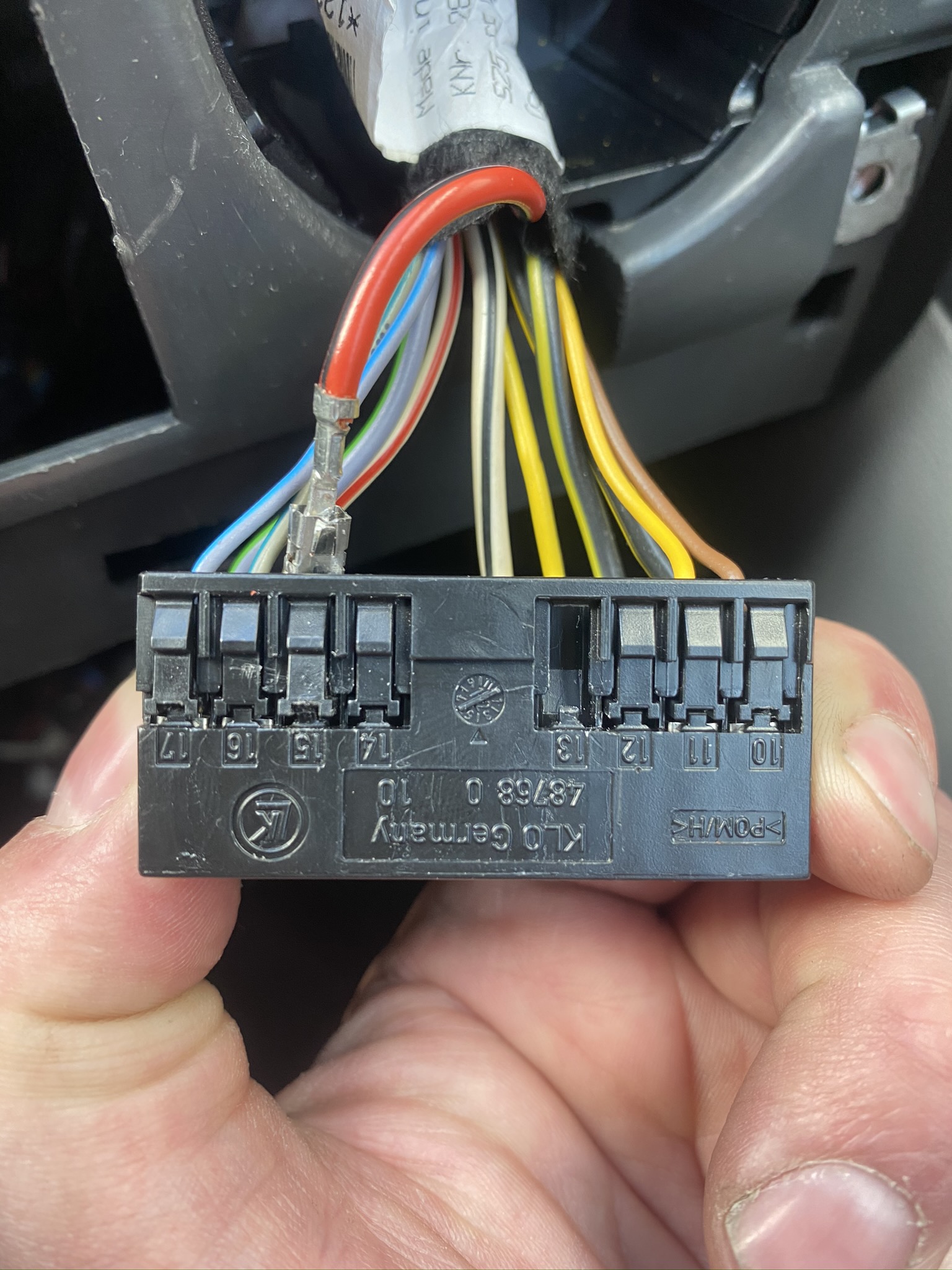

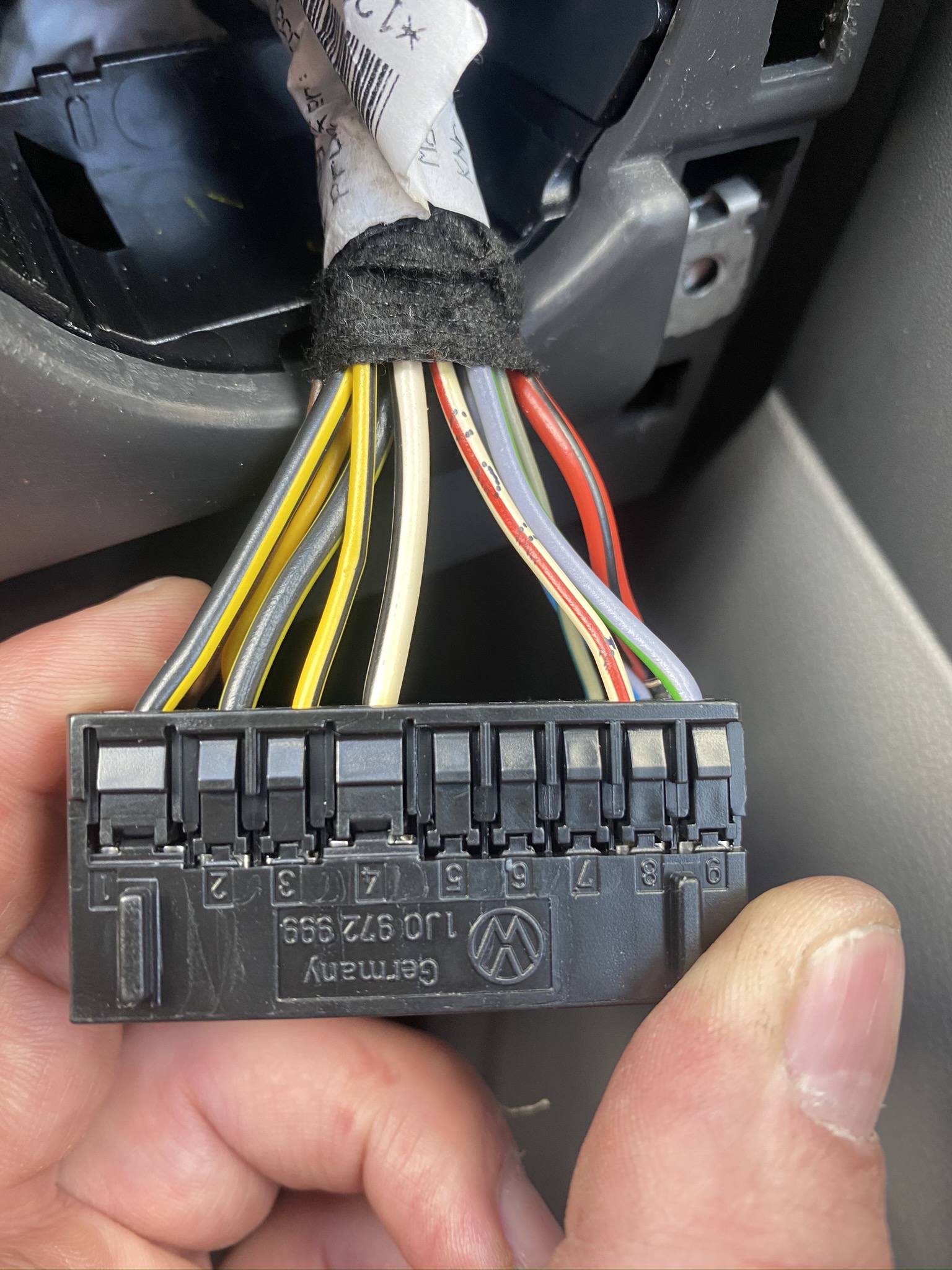

I am struggling to get the pins out of the original T17 switch plug, I have Laser terminal removal tools but they seem to be impossible to use on this plug. This kit-- https://www.lasertools.co.uk/product/7293
I have lifted the little tabs up while using the tool but It took me an hour just to get one out! I think Its going to get cut off tbh! The tools work ok on other sockets so far, just this one that's giving me problems.

Tomorrows job will be remove front seats, carpet and A pillar trim and so I can make a start on laying the wiring for Rain & light sensors and front/rear level sensors.

reido80 · Post by **reido80** » Thu Jul 30, 2020 9:30 pm

I have to recommend this website for plug/socket terminals and connectors,
https://www.automotive-connectors.com/

It is easy to search for different sizes types etc. For example, I struggled to find somewhere that differentiated between sealed and unsealed terminals and I struggled to find a site that I could buy everything "in one place" as it were. This site does that and also shows you related products which makes it easy to add other parts as needed.
Even through they ship from Germany and I ordered at the start of most counties being in the midst of lockdown, they still reached me in a few days.

Post by **ciclo** » Thu Jul 30, 2020 9:43 pm

Hello reido80 I have superficially read what you have commented in your post.
I will try to help you with all your concerns, I have to study what you have said step by step. (with diagrams, etc)

In complete agreement with you, it is difficult to remove the terminals from the T17 light switch connector. Some experience with this connector is necessary to find the trick to easily remove the terminals.
The LASER tools you have are totally correct.

The easiest and fastest way to transfer the photos taken on the phone to your PC is to connect the phone to a USB port on the PC. Find the folder with the photos on your phone and transfer them to a new folder on your PC. (it's just a suggestion)

Now we must be a little more patient in the shipments, although the majority of transport companies work perfectly and the delivery deadlines are met.

reido80 · Post by **reido80** » Thu Jul 30, 2020 11:04 pm

Thank you so much for your offer of help @ciclo, it is much appreciated.
Once I get the photo situation sorted I can put up the pics of my current fuse box, etc.
I have VCDS so I can post up scans etc. Although the first scan may be an old one but still relevant.
I can put up the full information of vehicle, equipment levels and what i intend to retrofit etc.

I have a load of parts which I think are correct for following your normal plug and play method, in case they are required. Eg I will need the 10 pin plug/socket for converting some wires for the light switch. - for this I have mk2 golf parts 191 prefix part number. I have a few different crimp tools, including the Engineer PA tool you recommend.

I was at my wits end with the T17 lol I think the laser tool pins are slightly too small a diameter and a bit to bendy for it to work first time.

Post by **ciclo** » Fri Jul 31, 2020 10:38 am

reido80 wrote: ↑Thu Jul 30, 2020 9:15 pm From the T14 & T10bl sockets behind the bumper, I will replace wires as needed to reach the BCM and fuse box.
Right hand headlamp same as above. It is just the wiring that goes to SB6 & SB28 fuses from the headlamps I am not sure about. for example,

It looks like I will need to use fuse SB6 for left headlamp which is a Terminal 56a feed where as the original fuse was SB5 which was a 56b terminal. Im not sure what the difference is between 56a/56b?

♦ Terminal 56a - Main beam and main beam warning lamp
♦ Terminal 56b - Dipped beam

Please make no mistake with the fuses, SB6 is not related to SB5, please check the diagrams again.

reido80 wrote: ↑Thu Jul 30, 2020 11:04 pm Thank you so much for your offer of help @ciclo, it is much appreciated.
Once I get the photo situation sorted I can put up the pics of my current fuse box, etc.
I have VCDS so I can post up scans etc. Although the first scan may be an old one but still relevant.
I can put up the full information of vehicle, equipment levels and what i intend to retrofit etc.

I have a load of parts which I think are correct for following your normal plug and play method, in case they are required. Eg I will need the 10 pin plug/socket for converting some wires for the light switch. - for this I have mk2 golf parts 191 prefix part number. I have a few different crimp tools, including the Engineer PA tool you recommend.

I was at my wits end with the T17 lol I think the laser tool pins are slightly too small a diameter and a bit to bendy for it to work first time.

That old VCDS Autoscan is the most important thing right now. Highly relevant.

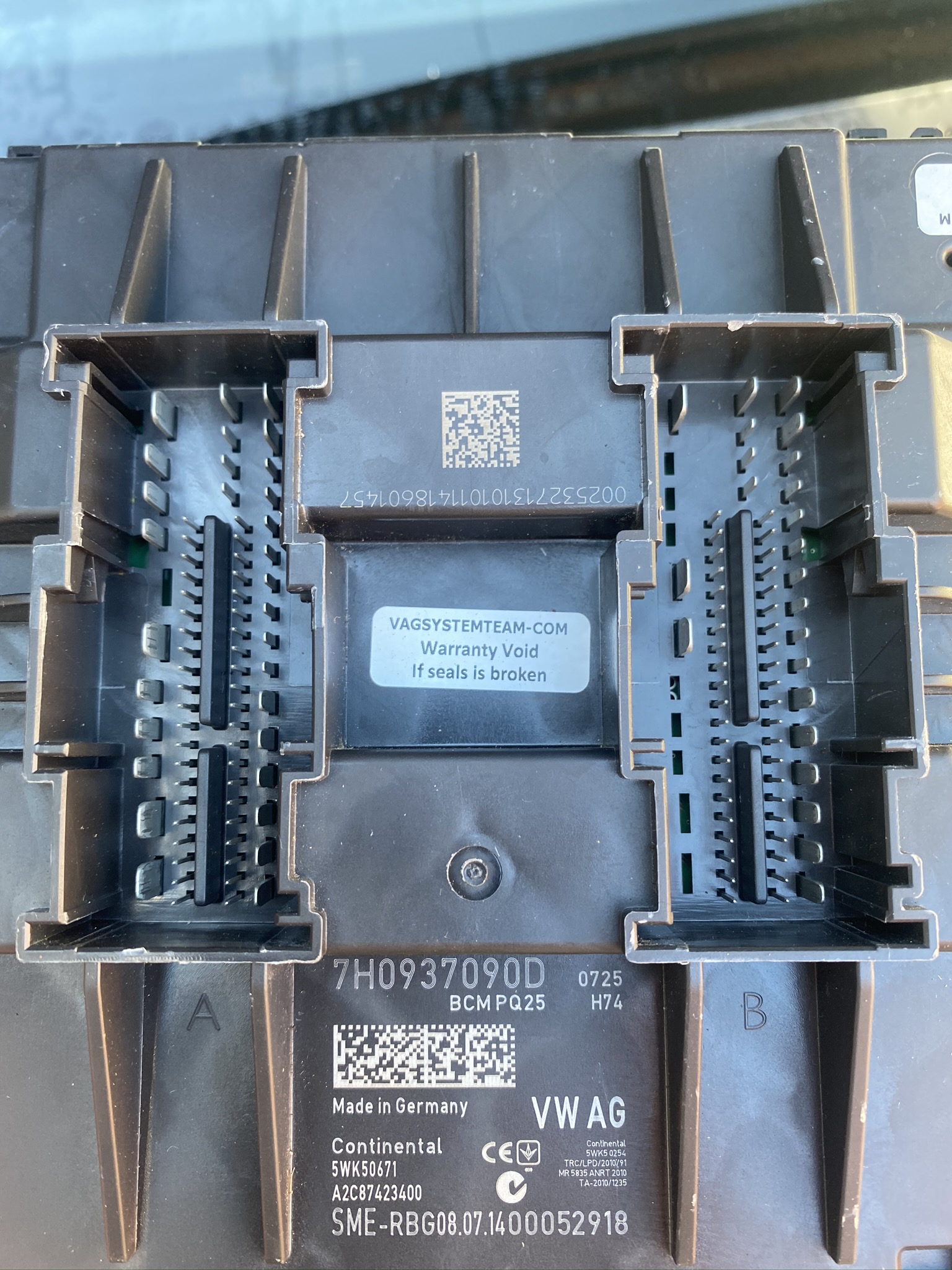

Also the reference number of the new BCM Max, as well as the images of the wires (colors) that reach the T17 light switch connector.

...and also a VCDS Autoscan with the BCM Max installed (the more faults the better) in case you have it.

reido80 · Post by **reido80** » Fri Jul 31, 2020 12:18 pm

Hope this works...Before I get to stuck into this and cant connect the battery.
Plenty faults

Some things not plugged in, I have not had much of a play with the 090 bcm yet.

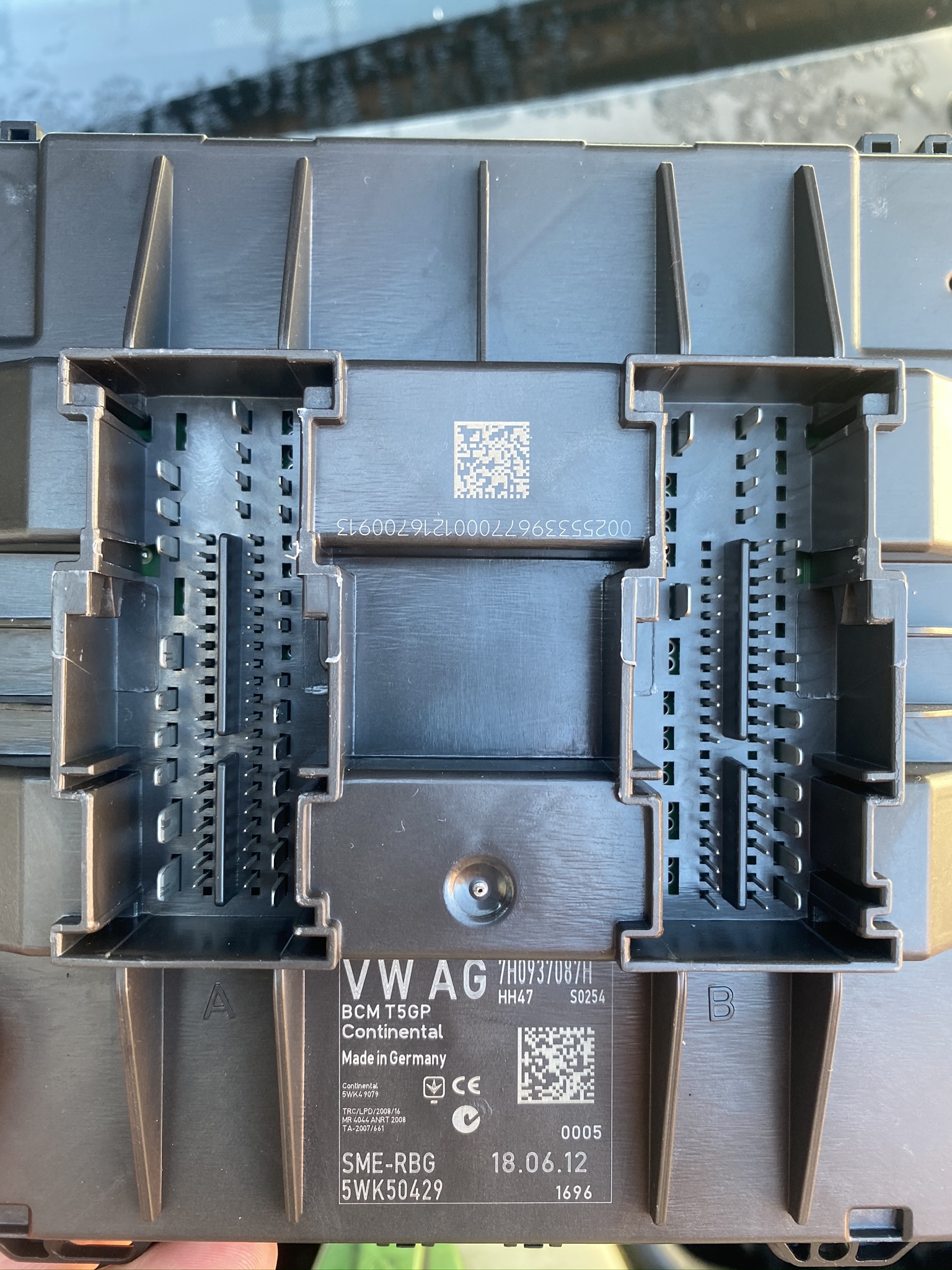

BCM 087H

Code: Select all

Friday,31,July,2020,11:56:28:03258
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.1.0 (x64)  HEX-V2 CB: 0.4508.4
Data version: 20200331 DS317.0
www.Ross-Tech.com


VIN: WV2ZZZ7HZDH   License Plate: BCM087H
Mileage: 130870km-81318mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (6N0)
Scan: 01 03 04 08 09 10 15 17 18 19 22 25 69 0B

VIN: WV2ZZZ7HZDH0   Mileage: 130870km-81318miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CFCA)       Labels:. 03L-906-022-CFC.clb
   Part No SW: 03L 906 019 GK    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H37 3566
   Revision: 22H37---    Serial number: 00000000000000
   Coding: 0119401A233600080000
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_ECM20BTD01103L906019GK 003003
   ROD: EV_ECM20BTD01103L906019GK_003.rod
   VCID: 7AADF0A04C5F927B1DF-802E

5 Faults Found:
5568 - Sensor for Ambient Air Temperature (G17)
          P0073 00 [175] - Signal too High
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 13:21:10

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 22 °C
                    Intake air temperature: 17 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.120 V
                    Unlearning counter according OBD: 40
                    Exh.gas temp.sen 1: 25.7 °C
                    Exh.gas temp.sen 2: -0.0 °C
                    Exh.gas temp.sen 3: 20.0 °C
                    Exh.gas temp.sen 4: 20.0 °C
                    Shut-off timer: last engine shut-off time: 4395 s

10065 - Mass Air Flow Sensor (G70)
          P0104 00 [167] - Intermittent
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2020.07.31
                    Time: 00:01:26

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 16 °C
                    Intake air temperature: 18 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 11.280 V
                    Unlearning counter according OBD: 40
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    Standardized airflow ratio: filtered: 3.9999
                    EGR Solen.val.: actual value: 99.82 %
                    Throttle valve adapter: actual value: 104.27 %
                    Charge air pressure specified value: 1020 hPa
                    Charge air pressure: actual value: 994.4 hPa
                    Mean injection quantity: 0.00 mg/stroke

4881 - EGR Valve (N18)
          P1440 00 [032] - Open Circuit
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2020.07.24
                    Time: 16:22:58

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 18 °C
                    Intake air temperature: 19 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.280 V
                    Unlearning counter according OBD: 36
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    EGR Vacuum Regulator Solen.val.: activation: 100.00 %
                    EGR Solen.val.: actual value: 100.00 %
                    EGR valve: offset closed: -1.07 %
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    Actuator for high pressure EGR: status-Bits 0-7: 55
                    Actuator for high pressure EGR: status-Bits 0-7: 2
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    High press EGR actuator: actual unconditioned volt val: 9.6 mV

4900 - EGR Sensor 1
          P0405 00 [032] - Signal too Low
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 130876 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 18 °C
                    Intake air temperature: 19 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.320 V
                    Unlearning counter according OBD: 36
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    EGR Vacuum Regulator Solen.val.: activation: 100.00 %
                    EGR Solen.val.: actual value: 100.00 %
                    EGR valve: offset closed: -1.07 %
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    Actuator for high pressure EGR: status-Bits 0-7: 55
                    Actuator for high pressure EGR: status-Bits 0-7: 2
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    High press EGR actuator: actual unconditioned volt val: 8.6 mV

9531 - Manifold / Barometric Pressure Sensor (G71) / (F96)
          P0105 00 [039] - Malfunction
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 14 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.260 V
                    Unlearning counter according OBD: 40
                    Charge air pressure: actual value: 998.8 hPa
                    Intake air pressure sensor after air cleaner: raw value: 1150 hPa
                    Sensor for charge pressure between turbochargers: raw value: 995.6 hPa
                    Engine status: COENG_STANDBY
                    Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 0

Readiness: 1 1 0 0 0

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 J    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0109
   Revision: 00H43001
   Coding: 108764AD19A6089626A99878AA6610
   Shop #: WSC 02756 790 49152
   VCID: 392F2FAC09595963545-806C

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E5 907 047 BG    HW: 7E5 907 047 BG
   Component: Climatic-T5   H20 0505
   Revision: 00001010
   Coding: 0000000002
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 75B7E39C6541FD0370D-8020

2 Faults Found:
9581169 - Positioning Motor for Center and Side Air Distribution Flap
          B1232 71 [008] - Actuator stuck
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 220
                    Mileage: 129609 km
                    Date: 2020.05.24
                    Time: 07:22:27

13701968 - Function Restriction due to Faults in Other Modules
          U1113 00 [009] - -
          [Steuergerät im Schalttafeleinsatz - bitte Fehlerspeicher auslesen]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 13
                    Reset counter: 202
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 13:21:17


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
   Part No SW: 7H0 937 087 H    HW: 7H0 937 087
   Component: BCM T5GP H+4  H47 0254
   Revision: BO047001    Serial number: 0429 167120913
   Coding: B8B079B80E61241192284E106E6985550080430F60844040320000000000
   Shop #: WSC 02756 790 12345
   VCID: 392F2FAC09595963545-806C

   Subsystem 1 - Part No SW: 7E0 959 801 C    HW: 7E0 959 801 C  Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  003 3313
   Serial number: --------------------
   Coding: 050000

   Subsystem 2 - Part No SW: 7E0 959 802 C    HW: 7E0 959 802 C  Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  003 3313
   Serial number: --------------------
   Coding: 050000

   Subsystem 3 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 4 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

   Subsystem 5 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 6 - Part No SW: 5K0 959 542 A    HW: 5K0 959 542 A
   Component: E221__MFL-TAS  H09 0013
   Serial number: 0390005
   Coding: 820000

3 Faults Found:
03428 - Activation of Left Adaptive Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Time Indication: 0
                    Date: 2014.12.14
                    Time: 12:07:06

03429 - Activation of Right Adaptive Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Time Indication: 0

03591 - Control Circuit for Horn
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 197
                    Mileage: 130876 km
                    Time Indication: 0
                    Date: 2014.12.18
                    Time: 18:28:22


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 J    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0105
   Revision: --------    Serial number: 28261217200384
   Coding: 118001
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_VW75XParkAssis8K 001003
   ROD: EV_VW75XParkAssis8K_001_VN75.rod
   VCID: 392F2FAC09D95963545-806C

4 Faults Found:
1111828 - Front Left Parking Aid Sensor
          B10F7 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:07:16

1112596 - Front Right Parking Aid Sensor
          B10FA 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:07:16

1112084 - Front Left Center Parking Aid Sensor
          B10F8 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 197
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 14:47:40

1112340 - Front Right Center Parking Aid Sensor
          B10F9 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 197
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 14:47:40


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
   Component: VW10Airbag009 H07 0013
   Revision: --------    Serial number: 003HL00CRH9K
   Coding: 000000000000000000000000000000003039
   Shop #: WSC 02754 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3537239C25C1BD03B0D-8060

1 Fault Found:
9442836 - Front Passenger's Airbag Disabled Indicator Lamp
          B1016 14 [137] - Open or Short to Ground
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 130877 km
                    Date: 2020.07.31
                    Time: 00:01:27


-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 970 G    HW: 7E0 920 970 G
   Component: KOMBI         H06 0605
   Serial number: 00000000000000
   Coding: 160E00
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04716
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 2E050CF0C0978EDBF17-807A

1 Fault Found:
9453330 - Outside temperature sensor
          B103F 1B [009] - Resistance Too High
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:40:36


-------------------------------------------------------------------------------
Address 18: Aux. Heat        Labels: None
   Part No: 7E0 815 071 B
   Component: J737__Standheizung  0605
   Revision: 00085000    Serial number: 09019275F00000
   Coding: 0000031
   Shop #: WSC 02757 790 00000
   VCID: 2411EED892DB348B173-8070

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 7H0 937 087
   Component: GW-K-CAN TP20 H47 0254
   Revision: BO047001
   Coding: 042300
   Shop #: WSC 02756 790 12345
   VCID: 70B9D2881AA3D82BA3B-8024

1 Fault Found:
01044 - Control Module Incorrectly Coded
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 123596 km
                    Time Indication: 0
                    Date: 2014.02.15
                    Time: 15:15:30


-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 09N 907 554 B    HW: 09N 907 554 B
   Component: Haldex 4Motion      6008
   Coding: 0000007
   Shop #: WSC 02756 790 00000
   VCID: 372B2994334D4F13A21-8062

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H06 0605
   Serial number:
   Coding: 000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03709
   ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
   VCID: 6A8DC0E03CFF22FBEDF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 G    HW: 1K0 907 383 G
   Component: Anhaenger     H10 0110
   Revision: 3B001001    Serial number: 00008030224120
   Coding: 410D000101000000
   Shop #: WSC 02756 790 00000
   VCID: 313F178CD1299123EC5-8064

No fault code found.

End----------(Elapsed Time: 01:57, VBatt start/end: 12.1V/12.1V)-----------

BCM 090D

Code: Select all

Friday,31,July,2020,12:05:01:03258
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.1.0 (x64)  HEX-V2 CB: 0.4508.4
Data version: 20200331 DS317.0
www.Ross-Tech.com


VIN: WV2ZZZ7HZDH0   License Plate: BCM090D
Mileage: 130870km-81318mi   Repair Order:


Chassis Type: 7H-VN75 (6N0)
Scan: 01 03 04 08 09 10 15 17 18 19 22 25 2E 56 61 69 0B

VIN: WV2ZZZ7HZDH0   Mileage: 130870km-81318miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: Sporadic communication error 1000
08-Auto HVAC -- Status: Malfunction 1010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Cannot be reached 1100
56-Radio -- Status: Cannot be reached 1100
61-Battery Regul. -- Status: Malfunction 0010
69-Trailer -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CFCA)       Labels:. 03L-906-022-CFC.clb
   Part No SW: 03L 906 019 GK    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H37 3566
   Revision: 22H37---    Serial number: 00000000000000
   Coding: 0119401A233600080000
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_ECM20BTD01103L906019GK 003003
   ROD: EV_ECM20BTD01103L906019GK_003.rod
   VCID: 7AADF0A04C5F927B1DF-802E

5 Faults Found:
5568 - Sensor for Ambient Air Temperature (G17)
          P0073 00 [175] - Signal too High
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 13:21:10

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 22 °C
                    Intake air temperature: 17 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.120 V
                    Unlearning counter according OBD: 40
                    Exh.gas temp.sen 1: 25.7 °C
                    Exh.gas temp.sen 2: -0.0 °C
                    Exh.gas temp.sen 3: 20.0 °C
                    Exh.gas temp.sen 4: 20.0 °C
                    Shut-off timer: last engine shut-off time: 4395 s

10065 - Mass Air Flow Sensor (G70)
          P0104 00 [167] - Intermittent
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 16 °C
                    Intake air temperature: 19 °C
                    Ambient air pressure: 980 mbar
                    Voltage terminal 30: 11.360 V
                    Unlearning counter according OBD: 40
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    Standardized airflow ratio: filtered: 3.9999
                    EGR Solen.val.: actual value: 99.89 %
                    Throttle valve adapter: actual value: 104.19 %
                    Charge air pressure specified value: 1020 hPa
                    Charge air pressure: actual value: 994.4 hPa
                    Mean injection quantity: 0.00 mg/stroke

4881 - EGR Valve (N18)
          P1440 00 [032] - Open Circuit
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2020.07.24
                    Time: 16:22:58

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 18 °C
                    Intake air temperature: 19 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.280 V
                    Unlearning counter according OBD: 36
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    EGR Vacuum Regulator Solen.val.: activation: 100.00 %
                    EGR Solen.val.: actual value: 100.00 %
                    EGR valve: offset closed: -1.07 %
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    Actuator for high pressure EGR: status-Bits 0-7: 55
                    Actuator for high pressure EGR: status-Bits 0-7: 2
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    High press EGR actuator: actual unconditioned volt val: 9.6 mV

4900 - EGR Sensor 1
          P0405 00 [032] - Signal too Low
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 130876 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 18 °C
                    Intake air temperature: 19 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 12.320 V
                    Unlearning counter according OBD: 36
                    Air mass: actual value (mg/stroke): 0.0 mg/stroke
                    EGR Vacuum Regulator Solen.val.: activation: 100.00 %
                    EGR Solen.val.: actual value: 100.00 %
                    EGR valve: offset closed: -1.07 %
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    Actuator for high pressure EGR: status-Bits 0-7: 55
                    Actuator for high pressure EGR: status-Bits 0-7: 2
                    Actuator for high pressure EGR: status-Bits 0-7: 0
                    High press EGR actuator: actual unconditioned volt val: 8.6 mV

9531 - Manifold / Barometric Pressure Sensor (G71) / (F96)
          P0105 00 [039] - Malfunction
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 0 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 14 °C
                    Ambient air pressure: 990 mbar
                    Voltage terminal 30: 12.260 V
                    Unlearning counter according OBD: 40
                    Charge air pressure: actual value: 998.8 hPa
                    Intake air pressure sensor after air cleaner: raw value: 1150 hPa
                    Sensor for charge pressure between turbochargers: raw value: 995.6 hPa
                    Engine status: COENG_STANDBY
                    Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 0

Readiness: 1 1 0 0 0

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 J    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0109
   Revision: 00H43001
   Coding: 108764AD19A6089626A99878AA6610
   Shop #: WSC 02756 790 49152
   VCID: 392F2FAC09595963545-806C

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E5 907 047 BG    HW: 7E5 907 047 BG
   Component: Climatic-T5   H20 0505
   Revision: 00001010
   Coding: 0000000002
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 75B7E39C6541FD0370D-8020

3 Faults Found:
9581169 - Positioning Motor for Center and Side Air Distribution Flap
          B1232 71 [008] - Actuator stuck
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 220
                    Mileage: 129609 km
                    Date: 2020.05.24
                    Time: 07:22:27

13701456 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergerät im Schalttafeleinsatz - kein Signal/Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 232
                    Date: 2000.00.00
                    Time: 00:00:00

13701968 - Function Restriction due to Faults in Other Modules
          U1113 00 [008] - -
          [Steuergerät im Schalttafeleinsatz - bitte Fehlerspeicher auslesen]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 13
                    Reset counter: 17
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 13:21:17


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
   Part No SW: 7H0 937 090 D    HW: 7H0 937 090
   Component: BCM PQ25 Max4 H74 0725
   Revision: B9074001    Serial number: 0671 186141457
   Coding: B8B079B80E61241192284E506E699551008043FF60844040320000000000
   Shop #: WSC 02739 790 12345
   VCID: 2F3B11F4C71D87D3FA1-807A

   Subsystem 1 - Part No SW: 7E0 959 801 C    HW: 7E0 959 801 C  Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  003 3313
   Serial number: --------------------
   Coding: 050000

   Subsystem 2 - Part No SW: 7E0 959 802 C    HW: 7E0 959 802 C  Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  003 3313
   Serial number: --------------------
   Coding: 050000

   Subsystem 3 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 4 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

   Subsystem 5 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 6 - Part No SW: 5K0 959 542 A    HW: 5K0 959 542 A
   Component: E221__MFL-TAS  H09 0013
   Serial number: 0390005
   Coding: 820000

4 Faults Found:
01179 - Incorrect Key Programming
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 16
                    Time Indication: 0

03591 - Control Circuit for Horn
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 232
                    Time Indication: 0

01516 - Terminal 30; Left
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 9
                    Reset counter: 232
                    Time Indication: 0

00927 - Terminal 30 (Right)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 9
                    Reset counter: 232
                    Time Indication: 0


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 J    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0105
   Revision: --------    Serial number: 28261217200384
   Coding: 118001
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_VW75XParkAssis8K 001003
   ROD: EV_VW75XParkAssis8K_001_VN75.rod
   VCID: 392F2FAC09D95963545-806C

4 Faults Found:
1111828 - Front Left Parking Aid Sensor
          B10F7 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:07:16

1112596 - Front Right Parking Aid Sensor
          B10FA 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:07:16

1112084 - Front Left Center Parking Aid Sensor
          B10F8 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 197
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 14:47:40

1112340 - Front Right Center Parking Aid Sensor
          B10F9 14 [008] - Open or Short to Ground
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 197
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 14:47:40


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
   Component: VW10Airbag009 H07 0013
   Revision: --------    Serial number: 003HL00CRH9K
   Coding: 000000000000000000000000000000003039
   Shop #: WSC 02754 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3537239C25C1BD03B0D-8060

1 Fault Found:
9442836 - Front Passenger's Airbag Disabled Indicator Lamp
          B1016 14 [137] - Open or Short to Ground
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 130877 km
                    Date: 2020.07.31
                    Time: 00:01:27


-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 970 G    HW: 7E0 920 970 G
   Component: KOMBI         H06 0605
   Serial number: 00000000000000
   Coding: 160E00
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04716
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 2E050CF0C0978EDBF17-807A

2 Faults Found:
9453330 - Outside temperature sensor
          B103F 1B [009] - Resistance Too High
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 196
                    Mileage: 130876 km
                    Date: 2020.07.23
                    Time: 12:40:36

12664832 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Steuergerät für BCM / Bordnetz / el. ZE: keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 232
                    Mileage: 0 km
                    Date: 2000.00.00
                    Time: 00:00:00


-------------------------------------------------------------------------------
Address 18: Aux. Heat        Labels: None
   Part No: 7E0 815 071 B
   Component: J737__Standheizung  0605
   Revision: 00085000    Serial number: 09019275F00000
   Coding: 0000031
   Shop #: WSC 02757 790 00000
   VCID: 2411EED892DB348B173-8070

3 Faults Found:
00625 - Vehicle Speed Signal
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 255
                    Time Indication: 0

             Freeze Frame:
                        OFF
                    Temperature: 17.0°C
                    Voltage: 11.83 V
                    Temperature: 77.5°C

00667 - Ambient Temperature Signal
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 255
                    Time Indication: 0

             Freeze Frame:
                        OFF
                    Temperature: 17.0°C
                    Voltage: 11.83 V
                    Temperature: 77.5°C

01317 - Control Module in Instrument Cluster (J285)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 255
                    Time Indication: 0

             Freeze Frame:
                        OFF
                    Temperature: 17.0°C
                    Voltage: 11.83 V
                    Temperature: 77.5°C


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 7H0 937 090
   Component: GW-K-CAN TP20 H74 0725
   Revision: B9074001
   Coding: 042200
   Shop #: WSC 02739 790 12345
   VCID: 70B9D2881AA3D82BA3B-8024

8 Faults Found:
01312 - Powertrain Data Bus
            014 - Defective - Intermittent
             Freeze Frame:
                    Fault Status: 00101110
                    Fault Priority: 1
                    Fault Frequency: 4
                    Reset counter: 15
                    Mileage: 86251 km
                    Time Indication: 0
                    Date: 2016.10.05
                    Time: 04:19:40

00778 - Steering Angle Sensor (G85)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 16
                    Mileage: 86647 km
                    Time Indication: 0
                    Date: 2016.10.07
                    Time: 00:01:32

01320 - Control Module for Climatronic (J255)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 16
                    Mileage: 86647 km
                    Time Indication: 0
                    Date: 2016.10.07
                    Time: 00:01:33

01304 - Radio
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 232
                    Mileage: 86646 km
                    Time Indication: 0
                    Date: 2016.10.07
                    Time: 10:36:06

02078 - Media Player Position 3 (R120)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 232
                    Time Indication: 0

02830 - CAN-Extended Separator for Driver Assistance Systems
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 16
                    Mileage: 86251 km
                    Time Indication: 0
                    Date: 2016.10.05
                    Time: 04:19:40

00381 - Databus Instrument Cluster
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 1
                    Fault Frequency: 12
                    Reset counter: 232
                    Time Indication: 0

03406 - Control Module for Battery Monitoring
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 16
                    Time Indication: 0


-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 09N 907 554 B    HW: 09N 907 554 B
   Component: Haldex 4Motion      6008
   Coding: 0000007
   Shop #: WSC 02756 790 00000
   VCID: 372B2994334D4F13A21-8062

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H06 0605
   Serial number:
   Coding: 000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03709
   ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
   VCID: 6A8DC0E03CFF22FBEDF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3
Cannot be reached

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7H0 907 534     HW: 7H0 937 090
   Component: Batt.regelung H74 0725
   Serial number: 0671 186141457
   Coding: 530B7A73
   Shop #: WSC 02737 790 00000
   VCID: 6B83C5E433853BF3969-803E

2 Faults Found:
00458 - Control Module for Battery Monitoring (J367)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 232
                    Time Indication: 0

02252 - Generator
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 232
                    Time Indication: 0


-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 G    HW: 1K0 907 383 G
   Component: Anhaenger     H10 0110
   Revision: 3B001001    Serial number: 00008030224120
   Coding: 410D000101000000
   Shop #: WSC 02756 790 00000
   VCID: 313F178CD1299123EC5-8064

1 Fault Found:
01317 - Control Module in Instrument Cluster (J285)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 232
                    Mileage: 0 km
                    Time Indication: 0


End----------(Elapsed Time: 02:31, VBatt start/end: 11.9V/12.1V)-----------

reido80 · Post by **reido80** » Fri Jul 31, 2020 2:11 pm

(first time posting photos on here) I have another post with vcds scans which is currently pending approval.

Headlamp switch plug T17

BCM 's

UK-POLOS.NET - THE VW Polo Forum

Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)

Re: Auto headlight retrofit. VW Transporter. T5 (2010-2015)
