Posted: **Thu Feb 18, 2021 10:41 am**

The height leveling of the bi-xenon headlamps only works if you have the 55 unit installed ... magic has its limits.
Interior lights for switches viewtopic.php?p=580205#p580205

61

I am not asking you for a complete autoscan because post it only depends on you.

Posted: **Thu Feb 18, 2021 11:53 am**

Ahh thought so, well 55 will be a spring project

Interior wires are done like
viewtopic.php?p=580205#p580205

61 will be enable in the weekend, ran out of connectors for the lin wire

Posted: **Thu Feb 18, 2021 7:19 pm**

Connectors came early

61

is now enabled -- But start/stop would be nice to have permanently off

Interior lights working

Its more or less only high beam and cornering lights I would like to have fixed

Latest autoscan with a new error code for high beam

Code: Select all


VIN: WVWZZZ6RZCY508726   Mileage: 200180km-124386miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAYB)       Labels:. 03L-906-023-CAY.clb
   Part No SW: 03L 906 023 ME    HW: 03L 907 425 B
   Component: R4 1.6l TDI   H33 9978
   Revision: --H33---    Serial number:
   Coding: 00114016002401080000
   Shop #: WSC 00788 648 00255
   ASAM Dataset: EV_ECM16TDI02103L906023ME 003014
   ROD: EV_ECM16TDI02103L906023PL.rod
   VCID: 75B7E3E0754F3FF3504-8020

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 6R0-907-37x-ESP82.clb
   Part No SW: 6R0 907 379 AK    HW: 6R0 907 379 AF
   Component: ESP8.2i front H05 0001
   Revision: --------
   Coding: 210228E3416D00BA842C14E482D700521300
   Shop #: WSC 00788 648 00255
   VCID: 074B99281F633D63328-8052

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 H    HW: 6R0 907 044 H
   Component: Climatronic   H11 0711
   Revision: V0000000
   VCID: 38292AD4225D829B8B2-806C

1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
            013 - Check DTC Memory - Intermittent
             Freeze Frame:
                    Fault Status: 00101101
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 101
                    Mileage: 200183 km
                    Time Indication: 0
                    Date: 2015.07.12
                    Time: 00:04:51


-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 320160060
   Coding: 3CB02FB848210000213807B17DEB1FD85A80672F600530C1200000030000
   Shop #: WSC 00763 204 00001
   VCID: 2A0D009CECF1200B0D6-807E

   Subsystem 1 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 270611 05  54  0403
   Coding: 06302D

   Subsystem 2 - Part No SW: 6R0 959 801 AB    HW: 6R0 959 801 AB  Labels: 6R0-959-801.CLB
   Component: J386__TSG_FT  008 1611
   Serial number: KU0KU014061100017565
   Coding: 58BC30

   Subsystem 3 - Part No SW: 6R0 959 802 AD    HW: 6R0 959 802 AD  Labels: 6R0-959-802.CLB
   Component: J387__TSG_BT  008 1611
   Serial number: KU0KU015061100015010
   Coding: 48BC30

   Subsystem 4 - Part No SW: 2H0 959 442     HW: 2H0 959 442
   Component: E221__MFL-DC1  H02 0103
   Serial number: 39180000235390058087
   Coding: A4FFFF

   Subsystem 5 - Part No SW: 6R0 959 811 G    HW: 6R0 959 811 G
   Component: J388__TSG_HL  008 1611
   Serial number: KU0KU018061100010892
   Coding: 48BC32

   Subsystem 6 - Part No SW: 6R0 959 812 G    HW: 6R0 959 812 G
   Component: J389__TSG_HR  008 1611
   Serial number: KU0KU010061100016888
   Coding: 48BC32

1 Fault Found:
03906 - Control Circuit for High Beam Relay
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 61
                    Mileage: 200183 km
                    Time Indication: 0
                    Date: 2015.07.12
                    Time: 00:58:21


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 L    HW: 6R0 959 655 L
   Component: VW10Airbag022 H09 0020
   Revision: --------    Serial number: 003GY003PE4D
   Coding: 003232
   Shop #: WSC 00788 648 00255
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250_VW25.rod
   VCID: 4BC36518434B1903D60-801E

   Crash sensor for side airbag: driver side:
   Serial number: 3575HRB404R0H4DK41GD

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3585HRB40650CTC46HJI

   Rear Side Airbag Crash Sensor (on driver's side):
   Serial number: 3515RRB404R0M8GCLH4%

   Passenger side rear thorax airbag crash sensor:
   Serial number: 3525RRB404V0M8GC28O$

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 6R0 920 861 H    HW: 6R0 920 861 H
   Component: KOMBI         H03 0505
   Serial number: 00000000000000
   Coding: 540E01
   Shop #: WSC 12345 123 61029
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
   VCID: 3A2D30DC1CD1908B7D6-806E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H81 0744
   Revision: B9081001
   Coding: 2500C2
   Shop #: WSC 00763 204 00001
   VCID: 6889BA94327DD21BDB2-803C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 0505
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
   ROD: EV_Immo_UDS_VDD_RM09_VW23.rod
   VCID: 6A8DC09C2CF1E00BCD6-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: None
   VCID: 55F783609C4F5FF3704-8000

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-STD2.clb
   Part No SW: 5K7 035 200 L    HW: 5K7 035 200 L
   Component: MU-S--ER      H41 0478
   Serial number: VWZAZ2U0687010
   Coding: 065700003C00000011110001000808001F0100C40020010002
   Shop #: WSC 00763 204 00001
   ASAM Dataset: EV_MUStd4CTSAT 001022
   ROD: EV_MUStd4CTSAT_VW26.rod
   VCID: 2D070B80DD9F3733E84-8078

3 Faults Found:
1555 - Check Software Version Management
          B201A 00 [009] - -
          [Check software version management]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 61
                    Mileage: 200183 km
                    Date: 2021.02.18
                    Time: 00:04:48

                    Voltage terminal 30: 12.0 V
                    Status_Software_Version_Management-module_name:

15360256 - Component Protection
          U1101 00 [009] - Active
          [Anti-theft protection - component protection active (0xEA6100)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 61
                    Mileage: 200183 km
                    Date: 2021.02.18
                    Time: 00:04:48

                    Voltage terminal 30: 12.0 V

7178 - Function Restricted due to Missing Message(s)
          U1111 00 [009] - -
          [Park assist OPS (0x0A) - function restriction due to communication error - BapErr_retry not successful]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 61
                    Mileage: 200183 km
                    Date: 2021.02.18
                    Time: 00:04:51

                    Voltage terminal 30: 11.7 V
                    BAP-BAP_Function_ID: 02


-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H81 0744
   Serial number: 0982 320160060
   Coding: 030B1A5A
   Shop #: WSC 12345 123 12345
   VCID: 6889BA94327DD21BDB2-803C

   Subsystem 1 - Part No SW: 6R0 915 181 D    HW: 6R0 915 181
   Component: J367-BDM  H07 0180
   Serial number: 00000000008900687690

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached

End----(Elapsed Time: 01:23, VBatt start/end: 12.9V/12.0V. VIgn 12.0V)-----

Posted: **Fri Feb 19, 2021 5:51 am**

Due to the autoscan, who made and installed your wiring for automatic lights?
Check it.

Posted: **Fri Feb 19, 2021 6:41 am**

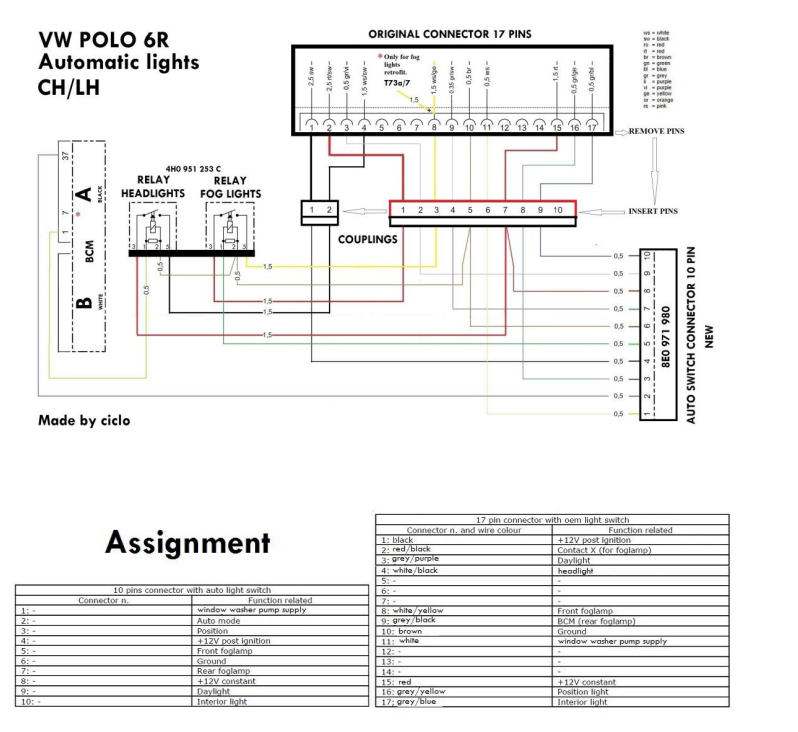

Did it myself according to your diagram, will double check later today

: t17 to t10 alw.PNG (257.1 KiB) Viewed 783 times

Posted: **Sat Feb 20, 2021 6:13 pm**

ciclo wrote: Fri Feb 19, 2021 5:51 am Due to the autoscan, who made and installed your wiring for automatic lights?
Check it.

Of course! it was my error.. It's fixed now, and everything works perfectly!!!

Thank you for all of your help! It's much appreciated !

Two quick follow-up questions:

Is it possible to code Reverse gear, to turn both cornering lights on?
and
is it possible to turn them manually on, maybe via a lightswitch with front fog lights, this is of course not for public road.
(I live down a 1km long gravel road, where the extra light could useful to spot animals)

Otherwise just very thank for your help!
