Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ag69 »

ciclo wrote: Mon Jul 15, 2019 7:02 am
You have to send me a photo/image of your PAN Card or Driving license to my email. It's required for package content declaration at the India customs.
Soon I will contact you by private message. Wait please.
seems ciclo, you have known custom procedures too ;)
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

ciclo wrote: Mon Jul 15, 2019 7:02 am BCM Max wiring adaptation (specific for patil 6R)

plus

FGTech Galleto V54 0386 (clone) to activate the Gra_High in your ECU 1.2 TSI Simos10.x
Thanks a lot Master, I am overwhelmed by your help. :D

Today, I spent most of the time in rechecking the wiring installation of TPMS along with CAN lines(for both TPMS and OPS) thoroughly. It appears, everything is correct and checked the continuity of the lines with multimeter wherever possible, everything seems to be ok.

As you pointed out, the coding for Fatigue detection in Gateway was incorrect. I rectified it, and please verify that its correct Master. Below is VCDS autoscan report:

Code: Select all

Monday,15,July,2019,22:01:23:09269
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 19.6.0.2 (x64)  HEX-V2 CB: 0.4505.4
Data version: 20190529 DS308.0
www.Ross-Tech.com


VIN: MEXL15606GT048293   License Plate:


Chassis Type: 60-VW25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 44 56 65

VIN: MEXL15606GT048293   Mileage: 42790km-26588miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: Cannot be reached 1100
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
65-Tire Pressure -- Status: Cannot be reached 1100
-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB)       Labels:. 03F-906-070-CBZ.clb
   Part No SW: 03F 906 070 KC    HW: 03F 907 309 AJ
   Component: SIMOS10.22AH10 6270
   Revision: --H10---    Serial number: 00000000000000
   Coding: 00250056232400080000
   Shop #: WSC 53863 002 1048576
   ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
   ROD: EV_ECM12TFS02103F906070FP.rod
   VCID: 6D84C0CEAD13BD3F117-8038

No fault code found.
Readiness: 0110 0101

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 065 N    HW: 0AM 927 769 D
   Component: GSG DSG AG7     431 6502
   Revision: 00043014    Serial number: CU501508317273
   Coding: 0000020
   Shop #: WSC 01260 002 1048576
   VCID: 3A2E3B92A05DDA87C45-806E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 6R0-907-37x-ESP90.clb
   Part No SW: 6R0 907 379 BN    HW: 6R0 907 379 AS
   Component: ESP9.0i front H03 0001
   Serial number: --------------
   Coding: 62DD2463422703C8461624724254C0800908
   Shop #: WSC 29230 002 1048576
   ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
   ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
   VCID: 0B40AE56B3C7130FAF3-805E

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 10051504650275
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA6F782F07536A7B8D-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 Q    HW: 6R0 907 044 Q
   Component: Climatronic   H12 0615
   Revision: V0000000
   VCID: 41DC4C7EC18B895F85F-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 D    HW: 7E0 937 090 D
   Component: BCM PQ25 Max4 H82 0762
   Revision: B9082001    Serial number: 8601 222180475
   Coding: 3AB02BFF08A10000003800C07C2B9490F0C041FF608C0000200400000000
   Shop #: WSC 00046 123 12345
   VCID: 2C020DCA56097437469-8078

   Subsystem 1 - Part No SW: 6R0 959 802 BH    HW: 6R0 959 802 BH  Labels: 6R0-959-802.CLB
   Component: J386__TSG_FT  003 8612
   Serial number: KU0KU015041441050460
   Coding: 1400B3

   Subsystem 2 - Part No SW: 6R0 959 801 BC    HW: 6R0 959 801 BC  Labels: 6R0-959-801.CLB
   Component: J387__TSG_BT  003 8612
   Serial number: KU0KU014041441047765
   Coding: 0400B3

   Subsystem 3 - Part No SW: 6C0 959 442     HW: 6C0 959 442
   Component: E221__MFL-TAT  H04 0019
   Serial number: 1971517275001536AB2B
   Coding: 240000

   Subsystem 4 - Part No SW: 6R0 959 811 L    HW: 6R0 959 811 L
   Component: -------------  006 5550
   Serial number: 13102580150623202239
   Coding: 020000

   Subsystem 5 - Part No SW: 6R0 959 812 L    HW: 6R0 959 812 L
   Component: -------------  006 5550
   Serial number: 13202581150812164218
   Coding: 020000

4 Faults Found:
03431 - Activation of Left Parking Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:27

03432 - Activation of Right Parking Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:27

01516 - Terminal 30; Left
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 9
                    Reset counter: 8
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:26

00927 - Terminal 30 (Right)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 9
                    Reset counter: 8
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:26


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 J    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0105
   Revision: --------    Serial number: 28261224902578
   Coding: 108101
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_VW75XParkAssis8K 001003
   ROD: EV_EPHVA18VW250GPCS_VW25.rod
   VCID: 392C249EA9DBD19FCDF-806C

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 J    HW: 6R0 959 655 J
   Component: VW10AirbagU06 H10 0020
   Revision: --------    Serial number: 003GW0118WCJ
   Coding: 003036
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250.rod
   VCID: 49CC545EF93B411F5DF-801C

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 6RD 920 870 A    HW: 6RD 920 870 A
   Component: KOMBI         H05 0805
   Serial number: 00000000000000
   Coding: 140C01
   Shop #: WSC 00046 123 12345
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW23.rod
   VCID: 47C85266EF2FB76F4BB-8012

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 D
   Component: GW-K-CAN TP20 H82 0762
   Revision: B9082001
   Coding: 002305
   Shop #: WSC 00046 123 12345
   VCID: 688AB1DA82719817621-803C

2 Faults Found:
03075 - Parallel Parking Assistance Control Module (J791)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:26

01325 - Control Module for Tire Pressure Monitoring (J502)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 42791 km
                    Time Indication: 0
                    Date: 2019.07.15
                    Time: 00:06:26


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 0805
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09.rod
   VCID: 6A8ECBD29CFDAA07745-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 1Sx-909-144-44.clb
   Part No SW: 1S2 909 144 P    HW: 1S2 909 144 P
   Component: EPS_ECU       H61 1702
   Coding: 0001000000000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SteerAssisNSK 014008
   ROD: EV_SteerAssisNSK_014.rod
   VCID: 41DC4C7EC10B895F85F-8014

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
   Part No SW: 6RD 035 187 A    HW: 6RD 035 187 A
   Component: MIB2-S-R-CN   025 0210
   Revision: -----001    Serial number: 01855GD0000318
   Coding: 00000440010001
   Shop #: WSC 00081 790 00118
   VCID: 45D4586ED5A3A57FB97-8010

2 Faults Found:
02873 - Control Module for Back-Up Camera (J772)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 0
                    Mileage: 42759 km
                    Time Indication: 0
                    Date: 2019.07.09
                    Time: 00:34:34

01327 - Control Module for Parking Aid (J446)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 0
                    Mileage: 42759 km
                    Time Indication: 0
                    Date: 2019.07.09
                    Time: 00:34:32


-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 3AA 907 273 F    HW: 5Q0 907 273
   Component: RDKBERU30     H04 0011
   Serial number: 40000000058983
   ASAM Dataset: EV_RDKBERU30 005005
   ROD: EV_RDKBERU30_005.rod
   VCID: 372822A69FCFC7EF3BB-8062

No fault code found.

End----------(Elapsed Time: 01:11, VBatt start/end: 13.7V/13.6V)-----------
And I am eagerly waiting for your PM. :D
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

ag69 wrote: Mon Jul 15, 2019 2:45 pm seems ciclo, you have known custom procedures too ;)
:wink:
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

Hi patil, I regret that you have had to spend most of the day doing these checks and we have not been able to solve it (thanks for doing these checks), but we already know with complete certainty that it is not a fault in the CAN lines wires.

Just out of curiosity, from where have you extracted the power/feed for modules 10 and 65? Is it a +15 or +30 signal?

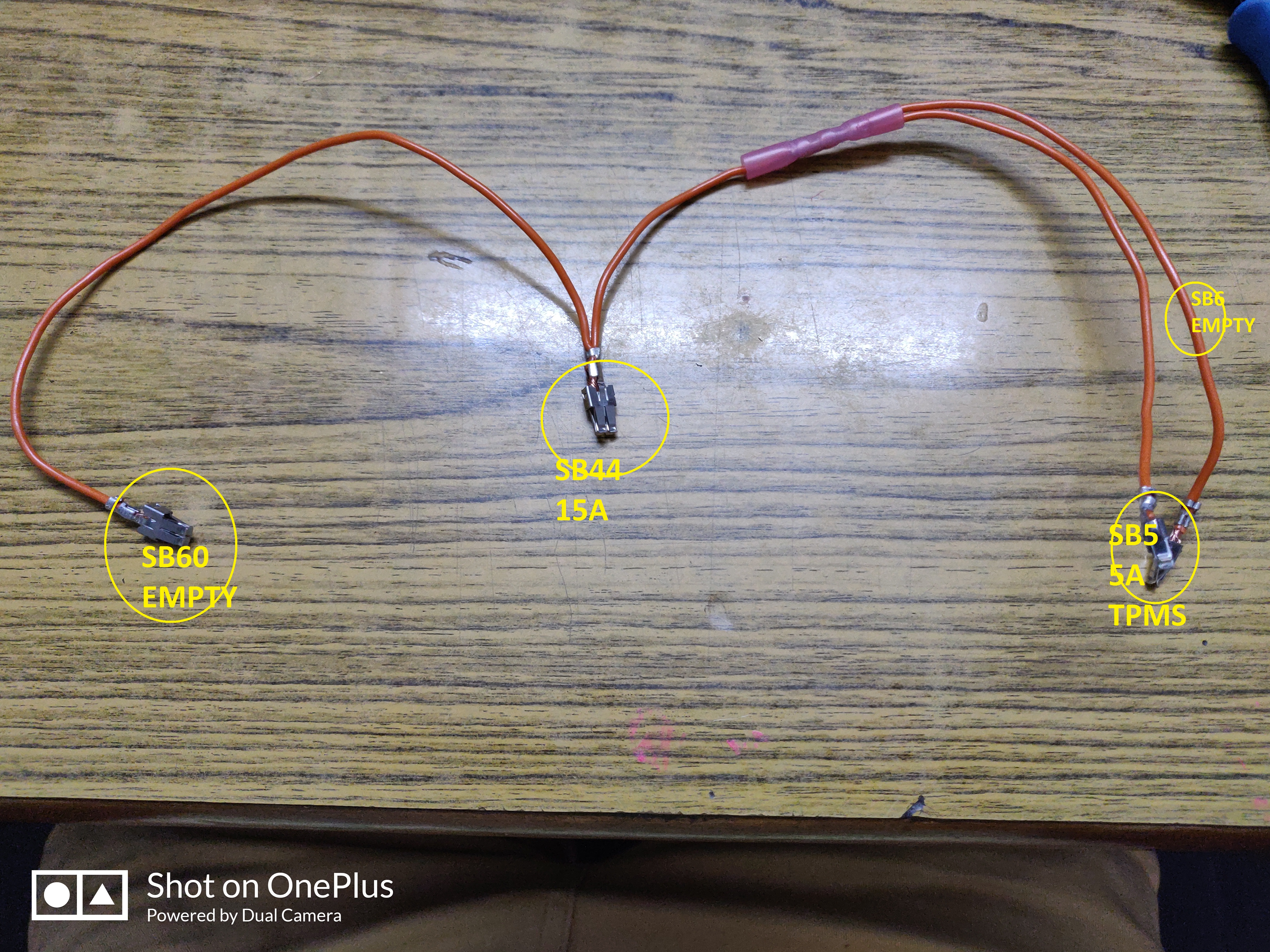

- For module 65 it must be +30. e.g. viewtopic.php?f=56&t=58703&p=517343#p517336
- For module 10 it must be +15. (usually 16 fuse in the PQ25 6R family, 4K 5Amp, 8K 10Amp) https://drive.google.com/file/d/1cfvI43 ... sp=sharing

In your case, the Gateway coding for fatigue detection activation must be 002304

I hope that when you receive my wiring these problems of the CAN lines can be solved, apart from current 4 faults in the BCM.

I send you my email address by PM, please contact me as soon as possible so I can send you the wires, etc, ...as soon as possible. Thank you. :wink:
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

ciclo wrote: Tue Jul 16, 2019 4:23 am
Just out of curiosity, from where have you extracted the power/feed for modules 10 and 65? Is it a +15 or +30 signal?
- For module 65 it must be +30. e.g. viewtopic.php?f=56&t=58703&p=517343#p517336
- For module 10 it must be +15. (usually 16 fuse in the PQ25 6R family, 4K 5Amp, 8K 10Amp) https://drive.google.com/file/d/1cfvI43 ... sp=sharing
The power supply for OPS module was already present in my stock harness(T1/T16, Black/Green wire). I just changed the module to 8k, added CAN lines from IC T28/T32(CAN high), T29/T32(CAN low) to T6/T16(High) and T15/T16(low). There was a wire(Black/Blue) in T6/T16 in stock harness(function???), which I removed and isolated to add CAN high wire.

Everything was working perfectly untill BCM Max was installed.


The power supply for TPMS, I tapped +30 from SB44 which was unused in my car.
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

ciclo wrote: Tue Jul 16, 2019 4:23 am
In your case, the Gateway coding for fatigue detection activation must be 002304
I am little confused on this one. :roll:

Fatigue detection was activated with Gateway coding 002304 only initially. You pointed out that, some bytes for Fatigue detection are not activated. So I researched a bit, and changed the Gateway coding to 002305 after reading here: https://www.drive2.ru/l/533203766917202038/

And thank you for shipping the package very fast. :mrgreen: 8)
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

patil wrote: Tue Jul 16, 2019 4:40 pm
ciclo wrote: Tue Jul 16, 2019 4:23 am
Just out of curiosity, from where have you extracted the power/feed for modules 10 and 65? Is it a +15 or +30 signal?
- For module 65 it must be +30. e.g. viewtopic.php?f=56&t=58703&p=517343#p517336
- For module 10 it must be +15. (usually 16 fuse in the PQ25 6R family, 4K 5Amp, 8K 10Amp) https://drive.google.com/file/d/1cfvI43 ... sp=sharing
The power supply for OPS module was already present in my stock harness(T1/T16, Black/Green wire). I just changed the module to 8k, added CAN lines from IC T28/T32(CAN high), T29/T32(CAN low) to T6/T16(High) and T15/T16(low). There was a wire(Black/Blue) in T6/T16 in stock harness(function???), which I removed and isolated to add CAN high wire.[/b]

Everything was working perfectly untill BCM Max was installed.
edited,

My eyesight gets worse every day.

Your blue/black wire was in T16/6.

Now I remember that there are different Low OPS modules for Russia, India, etc ... from factory.

It is the reverse signal for the 'low' OPS modules (eg, your original 4K, ). The 'high' OPS modules (e.g., your current 8K) receive this signal through the CAN lines.
It is correct to isolate the black/blue T16/6 wire for your upgrade.


Note: there are also 'high' OPS modules 4K (CAN lines).

Sorry. Totally guilty :lol:

---

https://drive.google.com/drive/folders/ ... 0hSiE1mZCP

I have taken the firm decision to uninstall ELSAWIN from my laptop.
From now on I will only use ERWIN.
patil wrote: Tue Jul 16, 2019 5:07 pm
ciclo wrote: Tue Jul 16, 2019 4:23 am
In your case, the Gateway coding for fatigue detection activation must be 002304
I am little confused on this one. :roll:

Fatigue detection was activated with Gateway coding 002304 only initially. You pointed out that, some bytes for Fatigue detection are not activated. So I researched a bit, and changed the Gateway coding to 002305 after reading here: https://www.drive2.ru/l/533203766917202038/
Why do you think that the publication by Madwarlock in Drive2 is correct and what I published in uk-polos is wrong? ... :lol:

By email, in our research process to activate fatigue detection, I was the one who told Madwarlock (Slavik) that the coding in the gateway for Byte2 should be 05 or other HEX values, but later, once I uploaded the data set I discovered that only the HEX 04 value is necessary.

Image ... :lol:
patil wrote: Tue Jul 16, 2019 5:07 pm And thank you for shipping the package very fast. :mrgreen: 8)
🏎 :lol:
I have added some small things inside the package. Wait to receive it to know what it is.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

Previous post edited.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

patil wrote: Tue Jul 16, 2019 5:07 pm I am little confused on this one. :roll:

Fatigue detection was activated with Gateway coding 002304 only initially. You pointed out that, some bytes for Fatigue detection are not activated. So I researched a bit, and changed the Gateway coding to 002305 after reading here: https://www.drive2.ru/l/533203766917202038/
Let's go with the explanations:

- First you post this autoscan viewtopic.php?f=56&t=73189&start=15#p558198 and the image of driver alert. In this autoscan the coding of your gateway is 002300.
- Then I post this viewtopic.php?f=56&t=73189&start=30#p558238 relative to some things that your autoscan does not include.
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

In the package I sent you, in a small sealed bag, there are three additional wires that you do not need to install due to your current NO-OEM lights configuration, ... headlights, taillights, mirror without RLS holder/support, + Chinese Kit for automatic lights.

These wires are:

1- Blue/black wire (0.5mm2): this wire is for DRLs signal, to be installed from the T17/3 lights switch connector to T73b/29 BCM MAX white connector.
It would be necessary to do the electrical installation from BCM connectors to the new DRLs.

2- Gray/black wire (0.5 mm2): this wire is for rear foglight signal, to be installed from the T17/9 lights switch connector to T73b/43 BCM MAX white connector. Remove original T17/9 to be spliced later.
3- Black wire (1.5 mm2): this wire is for feeding the rear foglight, to be installed from T73a/6 BCM MAX black connector to the original wire T17/9 (splice with the blue Butt terminal).

These three wires only should be installed in case of installing the 'original' automatic lighting system, RLS with auto dimming mirror, Light Switch AUTO, wiring for automatic lights with two relays, ... or original Bixenon/LED headlights.

Please copy and save this info.
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

ciclo wrote: Tue Jul 16, 2019 4:23 am
edited,

My eyesight gets worse every day.

Your blue/black wire was in T16/6.

Now I remember that there are different Low OPS modules for Russia, India, etc ... from factory.

It is the reverse signal for the 'low' OPS modules (eg, your original 4K, ). The 'high' OPS modules (e.g., your current 8K) receive this signal through the CAN lines.
It is correct to isolate the black/blue T16/6 wire for your upgrade.


Note: there are also 'high' OPS modules 4K (CAN lines).

Sorry. Totally guilty :lol:
Master, don't be sorry and your Eye sight is perfect, as an Eye Specialist I can say that. :mrgreen: :D

Actually you are the one who suggested to someone sometime back in your thread to isolate the T16/6 wire from the factory harness to add CAN lines to upgrade the OPS module. I too followed the same then, and as expected it was perfect and correct suggestion. :D
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

ciclo wrote: Wed Jul 17, 2019 3:59 am
patil wrote: Tue Jul 16, 2019 5:07 pm I am little confused on this one. :roll:

Fatigue detection was activated with Gateway coding 002304 only initially. You pointed out that, some bytes for Fatigue detection are not activated. So I researched a bit, and changed the Gateway coding to 002305 after reading here: https://www.drive2.ru/l/533203766917202038/
Let's go with the explanations:

- First you post this autoscan viewtopic.php?f=56&t=73189&start=15#p558198 and the image of driver alert. In this autoscan the coding of your gateway is 002300.
- Then I post this viewtopic.php?f=56&t=73189&start=30#p558238 relative to some things that your autoscan does not include.
Master, I am really sorry on this one. :oops:

My bad, I posted the VCDS auto scan after installing BCM Max and before activating the Fatigue detection. And then I posted picture of activated Fatigue detection. I confused myself on this. :(

Now I corrected the Gateway coding, thanks. :D

ciclo wrote: Wed Jul 17, 2019 6:34 am In the package I sent you, in a small sealed bag, there are three additional wires that you do not need to install due to your current NO-OEM lights configuration, ... headlights, taillights, mirror without RLS holder/support, + Chinese Kit for automatic lights.

Please copy and save this info.
Ok Master, thanks a lot. :D :D
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

patil wrote: Wed Jul 17, 2019 5:05 pm
Master, don't be sorry and your Eye sight is perfect, as an Eye Specialist I can say that. :mrgreen: :D

Actually you are the one who suggested to someone sometime back in your thread to isolate the T16/6 wire from the factory harness to add CAN lines to upgrade the OPS module. I too followed the same then, and as expected it was perfect and correct suggestion. :D
Thank you Doctor, it is clear that you know that a good vision is better than a good eyesight. :lol:



---
:mrgreen:
patil
Gold Member
Posts: 502
Joined: Wed Dec 07, 2016 8:34 pm
Drives: Polo6r/1.2TSI/DSG7, T-roc'20 1.5TSI/DSG7
Location: Foothills of Nilgiris, India

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by patil »

This post is to admit my mistake :oops:

During BCM Max upgrade, I had connected the new CAN lines (for BCM Max, CAN extended) to black T3 connector, through which I had(previously) tapped CAN lines for 8k OPS(later TPMS ) and lines for IC, instead of connecting the new CAN lines(CAN extended) directly to IC, T32/28 and T32/29. I over looked the wiring connection at that time. :|

Realizing my mistake, I reconnected the old isolated CAN lines(CAN powertrain) to OPS CAN lines(and TPMS). :D

The result, all error codes in addresses 10,19, 56 and 65 disappeared. :mrgreen: Only Central Electrical errors persist.

8K OPS display is working correctly now, and I have disabled the back up camera in address 56 for time being till BCM Max wiring is done.

Master, I am extremely sorry for misleading you(unintentional) with wiring connections and wasting your time unnecessarily. :(

VCDS autoscan after wiring correction:

Code: Select all

Saturday,20,July,2019,19:48:36:09269
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 19.6.1.0 (x64)  HEX-V2 CB: 0.4505.4
Data version: 20190529 DS308.0
www.Ross-Tech.com


VIN: MEXL15606GT048293   License Plate:


Chassis Type: 60-VW25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 44 56 65

VIN: MEXL15606GT048293   Mileage: 42920km-26669miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CBZB)       Labels:. 03F-906-070-CBZ.clb
   Part No SW: 03F 906 070 KC    HW: 03F 907 309 AJ
   Component: SIMOS10.22AH10 6270
   Revision: --H10---    Serial number: 00000000000000
   Coding: 00250056232400080000
   Shop #: WSC 53863 002 1048576
   ASAM Dataset: EV_ECM12TFS02103F906070KC 004006
   ROD: EV_ECM12TFS02103F906070FP.rod
   VCID: 6D84C0CEAD13BD3F11F-8038

No fault code found.
Readiness: 0110 0101

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 065 N    HW: 0AM 927 769 D
   Component: GSG DSG AG7     431 6502
   Revision: 00043014    Serial number: CU501508317273
   Coding: 0000020
   Shop #: WSC 01260 002 1048576
   VCID: 3A2E3B92A05DDA87C4D-806E

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 6R0-907-37x-ESP90.clb
   Part No SW: 6R0 907 379 BN    HW: 6R0 907 379 AS
   Component: ESP9.0i front H03 0001
   Serial number: --------------
   Coding: 62DD2463422703C8461624724254C0800908
   Shop #: WSC 29230 002 1048576
   ASAM Dataset: EV_Brake1ESP90iBOSCH 003031
   ROD: EV_Brake1ESP90iBOSCH_003_VW21.rod
   VCID: 0B40AE56B3C7130FAFB-805E

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 10051504650275
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA6F782F07536A7B85-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6R0-907-044.clb
   Part No SW: 6R0 907 044 Q    HW: 6R0 907 044 Q
   Component: Climatronic   H12 0615
   Revision: V0000000
   VCID: 41DC4C7EC18B895F857-8014

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 D    HW: 7E0 937 090 D
   Component: BCM PQ25 Max4 H82 0762
   Revision: B9082001    Serial number: 8601 222180475
   Coding: 3AB02BFF08A10000003800C07C2B9490F0C041FF608C0000200400000000
   Shop #: WSC 00046 123 12345
   VCID: 2C020DCA56097437461-8078

   Subsystem 1 - Part No SW: 6R0 959 802 BH    HW: 6R0 959 802 BH  Labels: 6R0-959-802.CLB
   Component: J386__TSG_FT  003 8612
   Serial number: KU0KU015041441050460
   Coding: 1400B3

   Subsystem 2 - Part No SW: 6R0 959 801 BC    HW: 6R0 959 801 BC  Labels: 6R0-959-801.CLB
   Component: J387__TSG_BT  003 8612
   Serial number: KU0KU014041441047765
   Coding: 0400B3

   Subsystem 3 - Part No SW: 6C0 959 442     HW: 6C0 959 442
   Component: E221__MFL-TAT  H04 0019
   Serial number: 1971517275001536AB2B
   Coding: 240000

   Subsystem 4 - Part No SW: 6R0 959 811 L    HW: 6R0 959 811 L
   Component: -------------  006 5550
   Serial number: 13102580150623202239
   Coding: 020000

   Subsystem 5 - Part No SW: 6R0 959 812 L    HW: 6R0 959 812 L
   Component: -------------  006 5550
   Serial number: 13202581150812164218
   Coding: 020000

4 Faults Found:
03431 - Activation of Left Parking Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 18
                    Mileage: 42927 km
                    Time Indication: 0
                    Date: 2019.07.20
                    Time: 01:58:04

03432 - Activation of Right Parking Light
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 18
                    Mileage: 42927 km
                    Time Indication: 0
                    Date: 2019.07.20
                    Time: 01:58:04

01516 - Terminal 30; Left
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 18
                    Mileage: 42927 km
                    Time Indication: 0
                    Date: 2019.07.20
                    Time: 01:55:58

00927 - Terminal 30 (Right)
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 3
                    Fault Frequency: 2
                    Reset counter: 18
                    Mileage: 42927 km
                    Time Indication: 0
                    Date: 2019.07.20
                    Time: 01:55:58


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 J    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0105
   Revision: --------    Serial number: 28261224902578
   Coding: 108101
   Shop #: WSC 02756 790 50316
   ASAM Dataset: EV_VW75XParkAssis8K 001003
   ROD: EV_EPHVA18VW250GPCS_VW25.rod
   VCID: 392C249EA9DBD19FCD7-806C

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 6R0 959 655 J    HW: 6R0 959 655 J
   Component: VW10AirbagU06 H10 0020
   Revision: --------    Serial number: 003GW0118WCJ
   Coding: 003036
   Shop #: WSC 01234 785 00200
   ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
   ROD: EV_AirbaVW10BPAVW250.rod
   VCID: 49CC545EF93B411F5D7-801C

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 6RD 920 870 A    HW: 6RD 920 870 A
   Component: KOMBI         H05 0805
   Serial number: 00000000000000
   Coding: 140C01
   Shop #: WSC 00046 123 12345
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW23.rod
   VCID: 47C85266EF2FB76F4B3-8012

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 D
   Component: GW-K-CAN TP20 H82 0762
   Revision: B9082001
   Coding: 002304
   Shop #: WSC 00046 123 12345
   VCID: 688AB1DA82719817629-803C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 0805
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09.rod
   VCID: 6A8ECBD29CFDAA0774D-803E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 1Sx-909-144-44.clb
   Part No SW: 1S2 909 144 P    HW: 1S2 909 144 P
   Component: EPS_ECU       H61 1702
   Coding: 0001000000000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_SteerAssisNSK 014008
   ROD: EV_SteerAssisNSK_014.rod
   VCID: 41DC4C7EC10B895F857-8014

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
   Part No SW: 6RD 035 187 A    HW: 6RD 035 187 A
   Component: MIB2-S-R-CN   025 0210
   Revision: -----001    Serial number: 01855GD0000318
   Coding: 00000400010001
   Shop #: WSC 00081 790 00118
   VCID: 45D4586ED5A3A57FB9F-8010

No fault code found.

-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 3AA 907 273 F    HW: 5Q0 907 273
   Component: RDKBERU30     H04 0011
   Serial number: 40000000058983
   ASAM Dataset: EV_RDKBERU30 005005
   ROD: EV_RDKBERU30_005.rod
   VCID: 372822A69FCFC7EF3B3-8062

No fault code found.

End----------(Elapsed Time: 01:46, VBatt start/end: 13.5V/13.7V)-----------
User avatar
ciclo
Bling Bling Diamond Member
Posts: 7851
Joined: Sun Feb 24, 2013 10:20 am
Drives: 6R'13/G7.5'19
Location: Earth ♥, sPAIN, Magiclands (Mordor).
Contact:

Re: INSTALLING DIRECT TPMS IN POLOGT 6R RHD IND

Post by ciclo »

Excellent patil! 🤟 you rock!

If we did not make mistakes, we would not be so f*****g smart ... LOL! ...we call it 'experience'...

Thanks for the clarifications. Do not worry about my time, learning from the mistakes of others is a super free experience. :lol:

You know that everything I written above is to joke.

Notes:
The badly named 'CAN extended' in PQ25 is officially named 'dash panel insert CAN Bus', to make clear that only the instrument cluster is connected these CAN lines, ... although it is possible to connect some type of radio that was sold in China (OEM) and other experiments ... hahaha

The whole mystery of BCM Max adaptation lies precisely in isolating the instrument cluster from 'powertrain CAN Bus'. It's one of the first images in the multiple installation guides that I made during these years.
Once you did it everything goes smoothly. 8)

Your RVC will work once the BCM Max adaptation wires are installed, as we saw earlier it is due to the way in which the new BCM Max supplies power to the reversing light wire.
The 4 faults in BCM will disappear as well. (or so I think, :mrgreen:, ... chinese kit, etc)
Post Reply
