Good morning Fernando, today is the day .
One last question.
In screen shot 3c in blue connector you wrote facilate the installation, what do you mean by this?
The wire isn't connected with this connector?
Forgive me for the foolish question, but I have to be sure.
Best regards
Vasileios
Skoda Fabia VRS 2012. Auto lights retrofit OEM
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
If one day in the future you need to uninstall the wiring looms for automatic lights or BCM adaptation, the blue connector will make it easier for you to remove the wiring without having to disassemble the steering wheel, airbag, etc. ... because the black wire is connected to the T41 connector and the T2 connector of the image will be fixed / connected to the original harness with the T17/1 terminal ... or it also serves not to have to remove the contact terminal from black connector T2 with terminal removal tool.

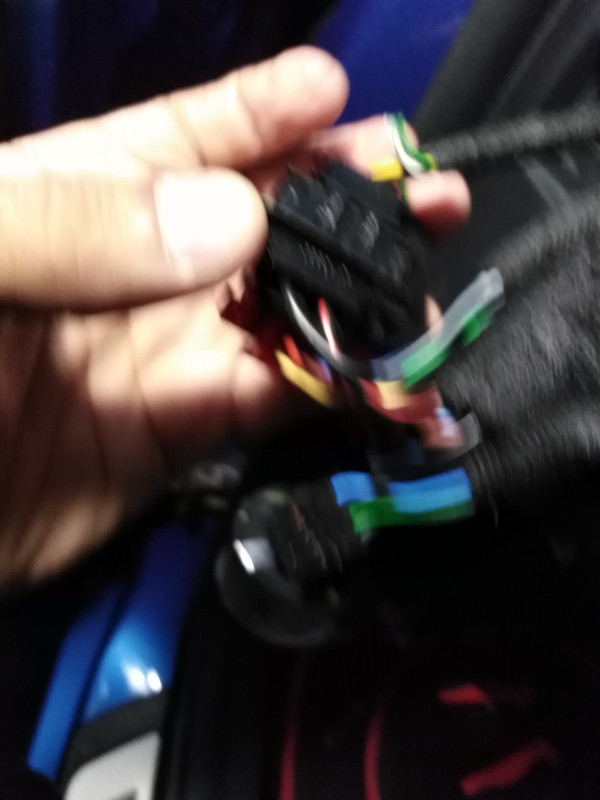

Blue connector is Plug & Play, easy.
For the installation, when you are doing the installation you will realize the utility the blue connector, it facilitates the placement of wiring looms.
I hope you understand what I mean
, it is a simple connector to separate wires/wiring if necessary.
This blue connector must always be connected for everything to work properly.
---
3c image.
I added this black wire thicker than the original to avoid possible problems if you change the headlights (you made a comment about it), and other technical reasons that I prefer not to explain, I don't want others to be angry with me.
This electrical installation was changed/modifyed in SK Fabia models after yours (2013 ->), by adding a relay.
My wiring looms always have to work 100%, I cannot allow them to fail.
Blue connector is Plug & Play, easy.
For the installation, when you are doing the installation you will realize the utility the blue connector, it facilitates the placement of wiring looms.
I hope you understand what I mean
, it is a simple connector to separate wires/wiring if necessary.This blue connector must always be connected for everything to work properly.
---
3c image.
I added this black wire thicker than the original to avoid possible problems if you change the headlights (you made a comment about it), and other technical reasons that I prefer not to explain, I don't want others to be angry with me.
This electrical installation was changed/modifyed in SK Fabia models after yours (2013 ->), by adding a relay.
My wiring looms always have to work 100%, I cannot allow them to fail.
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit

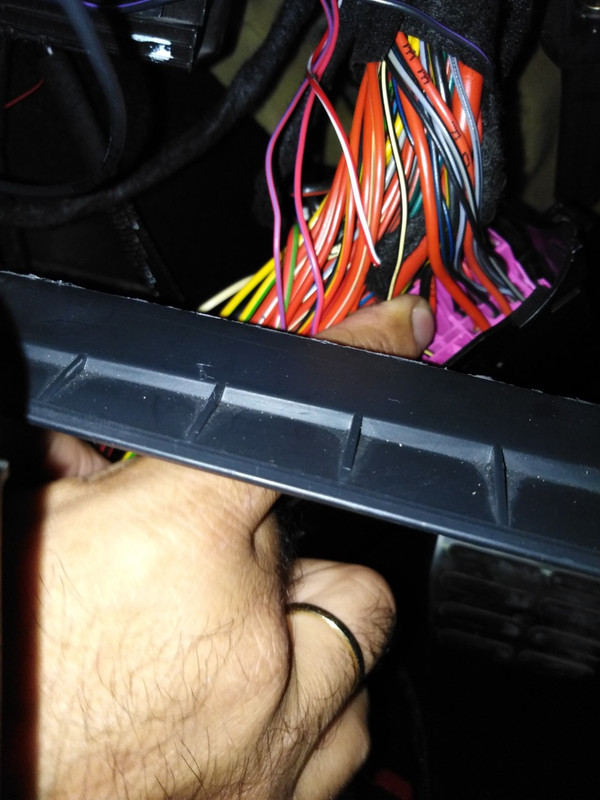

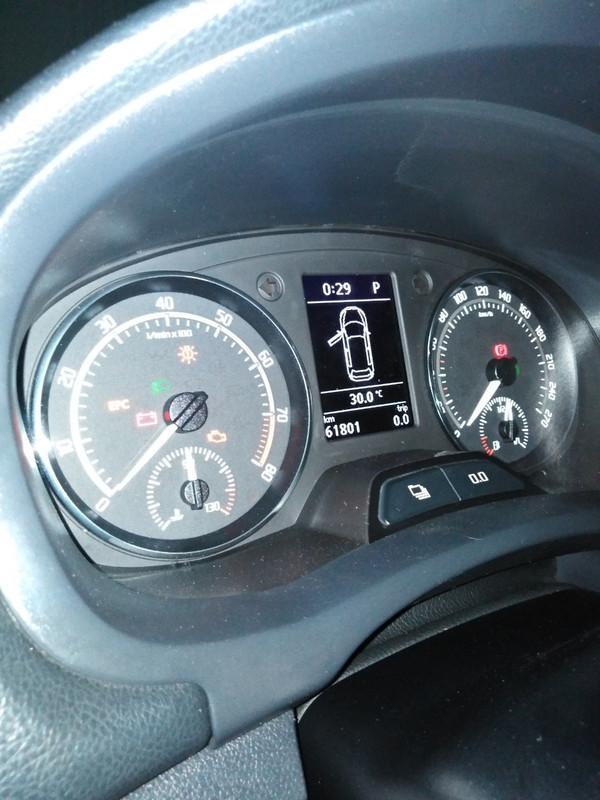

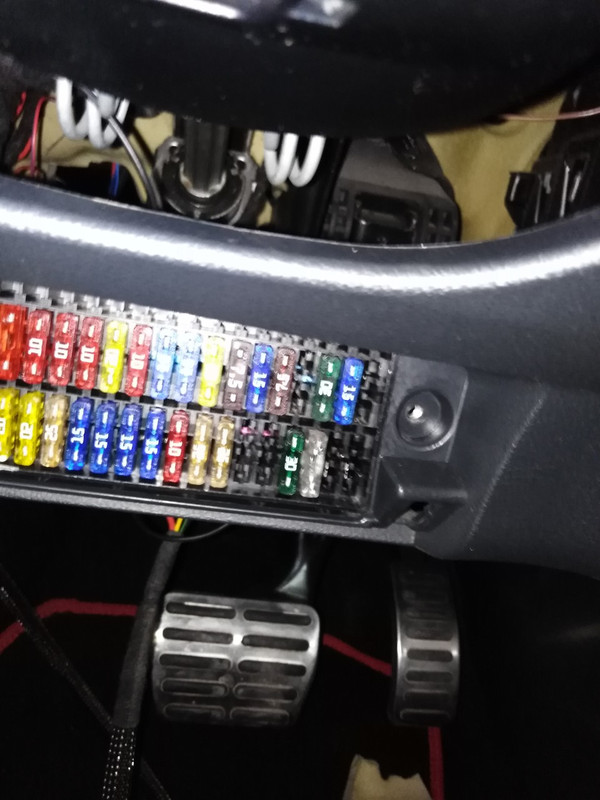

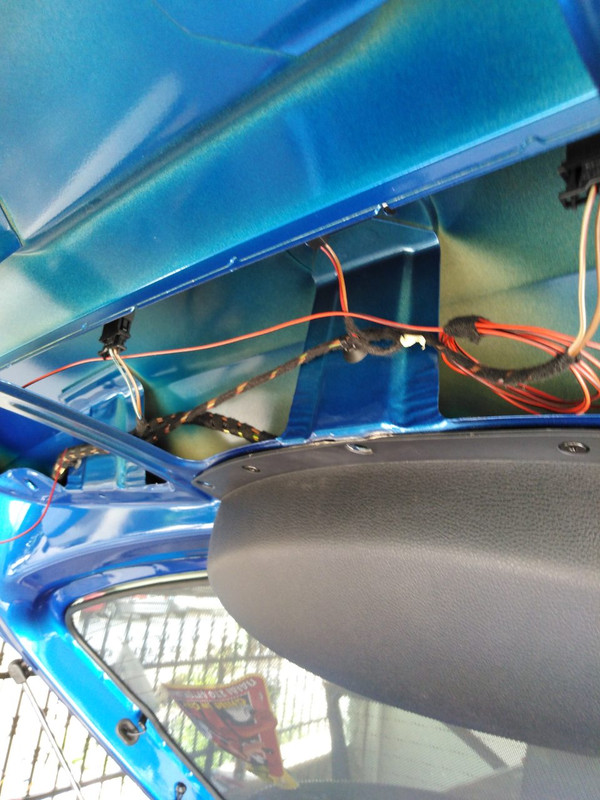

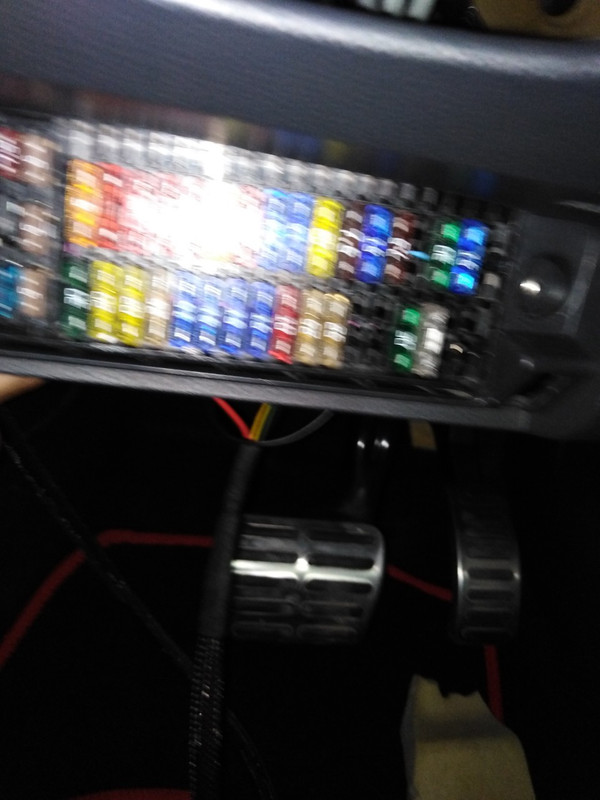

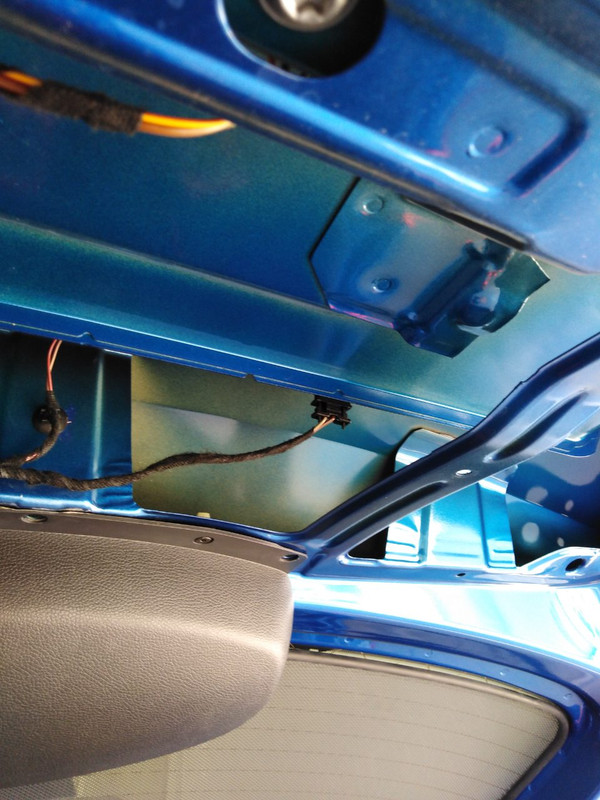

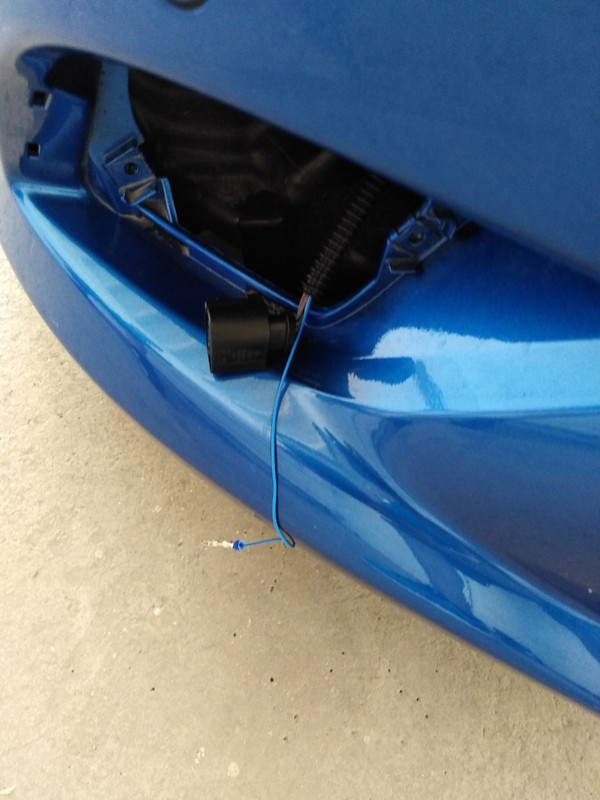

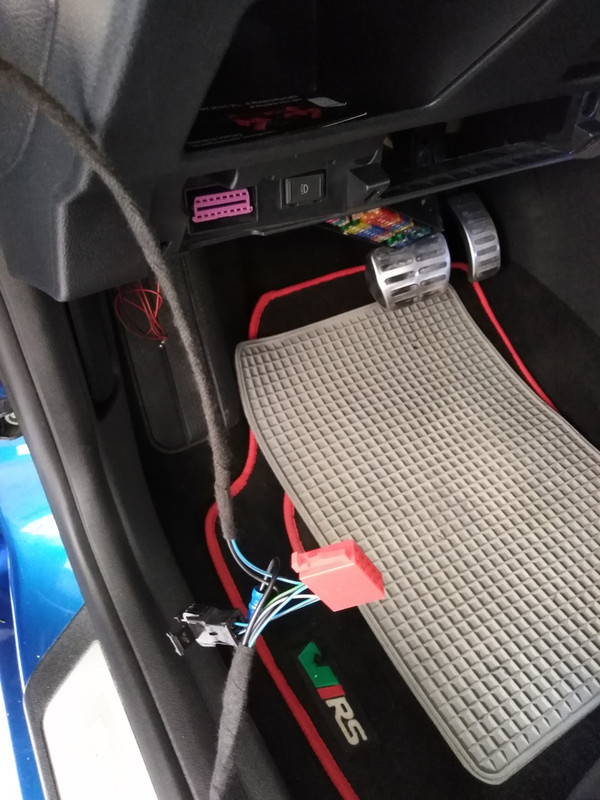

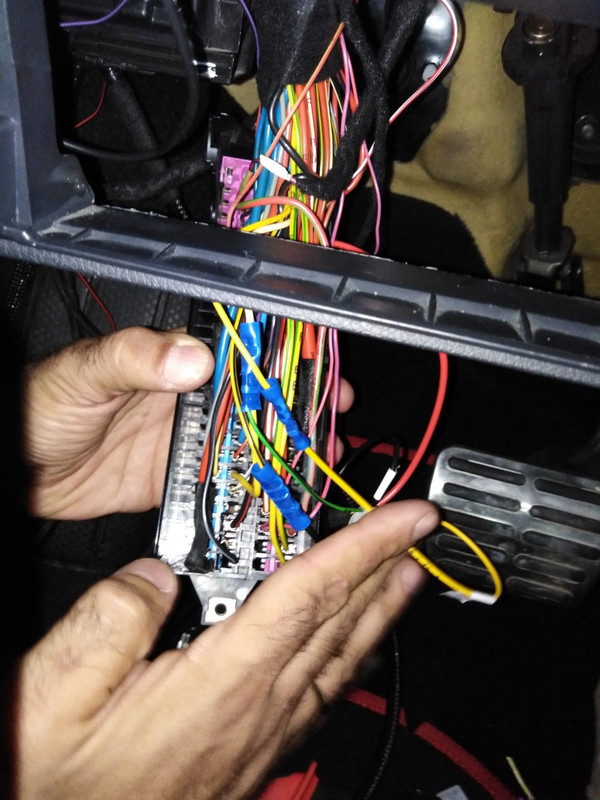

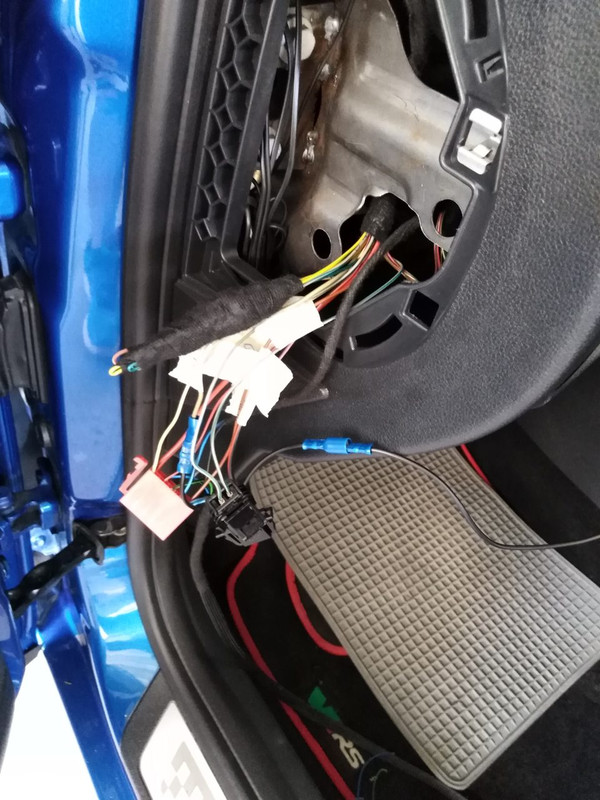

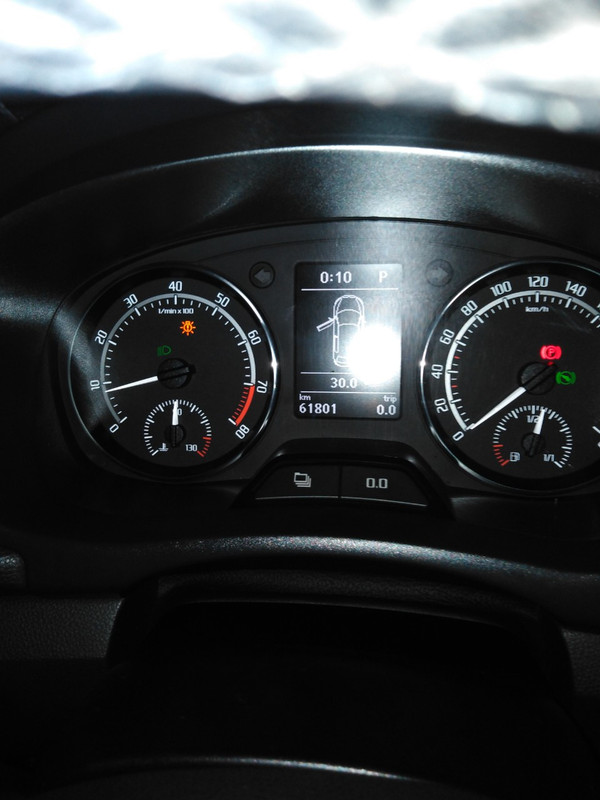

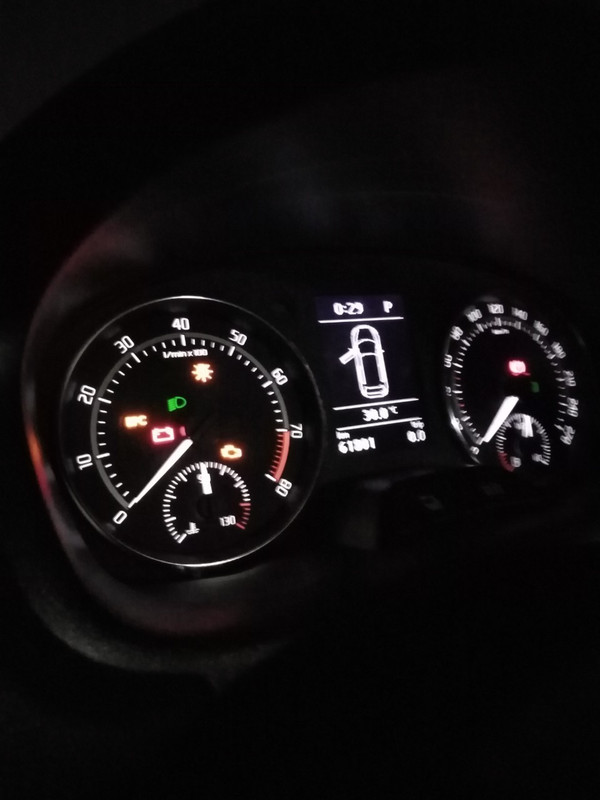

Hello Fernando the installation completed , but I do not have headlights , plate lights and I have lamp error in dash board , but I have daylights and taillights
my autoscan above , help my wife is gone kill me
Friday,30,August,2019,20:22:18:38567
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
Dealer/Shop Name: MT SKODA SERVICE
Workshop Code: 231 44700 072242
VIN: TMBEP25XXXXXXXXXX License Plate:
Mileage: 61800km-38400mi Repair Order: bcm max errors
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 5J-SK25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 37 44 56
VIN: TMBEP25XXXXXXXXXX Mileage: 61800km-38400miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 CE HW: 03C 906 027 CE
Component: 1.4l R4 TSI H15 9971
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 53850 001 1048576
ASAM Dataset: EV_ECM14TSI01103C906027CE 001013
ROD: EV_ECM14TSI01103C906027CE.rod
VCID: 66C3ED1499F16A7F03-8032
No fault code found.
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 060 A HW: 0AM 927 769 D
Component: GSG DSG AG7 431 6563
Revision: 00043014 Serial number: TFK01108310139
Coding: 0000020
Shop #: WSC 53850 001 1048576
VCID: 285FA32C9B65BC0FF1-807C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AL HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 410148DB437300B3822712E9C2D200411700
Shop #: WSC 13765 790 00049
VCID: 081FC3ACBFA59C0FD1-805C
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 25021504650800
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3A574E161D2BFEB-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6Q0-907-044.lbl
Part No SW: 5J0 907 044 C HW: 5J0 907 044 C
Component: Climatronic H08 0103
Revision: K0000000
VCID: 2A5B592445698E1FE7-807E
1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
013 - Check DTC Memory
Freeze Frame:
Fault Status: 01101101
Fault Priority: 6
Fault Frequency: 2
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:19
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 122170091
Coding: 7A980B3848010000013806B03EEB9BC052C0621F60002041200400020000
Shop #: WSC 00046 648 00255
VCID: 2B555C204A9397171C-807E
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 230714 05 54 0403
Coding: 0330AD
Subsystem 2 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 3 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 4 - Part No SW: 3T0 959 537 E HW: 3T0 959 537 E
Component: E221__MFL-URO H07 0012
Serial number: 2164426
Coding: 810000
Subsystem 5 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 6 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3211
Serial number: --------------------
Coding: 020000
3 Faults Found:
01516 - Terminal 30; Left
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
00927 - Terminal 30 (Right)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 2
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:. 7E0-919-475.clb
Part No SW: 7E0 919 475 S HW: 7N0 919 475
Component: PARKHILFE 8K H06 0210
Revision: -------- Serial number: 28261530202208
Coding: 108101
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParkAssis8K 001011
ROD: N/A
VCID: 428B1184D519765FCF-8016
No ASAM data for: "EV_VW75XParkAssis8K" (SK25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagT20 H09 0020
Revision: -------- Serial number: 003GX00UUUCP
Coding: 003230
Shop #: WSC 13765 790 00049
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B39A4ED29AE1F07-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40590NHDIJH62
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40590NHDIAOG2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5J0 920 841 F HW: 5J0 920 841 F
Component: KOMBI H04 0305
Serial number: 00000000000000
Coding: 120C01
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2D5152387C87992702-8078
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 032204
Shop #: WSC 00046 648 00255
VCID: 68DFE32C9BE57C0F31-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0305
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADB99248DE94E1F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 5JA 035 193 E HW: 5JA 035 193 E
Component: RNS315-EU H85 0501
Serial number: SKZAZ2R0659899
Coding: 040004110400000000000000
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_RNS315EUV2UDS 001705
ROD: EV_RNS315EUV2UDS.rod
VCID: 3A7B6964BDC93E9F97-806E
Data medium:
Subsystem 1 - Part No: 3AA 919 866
Component: EUR_W_V11 0073
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 13765
VCID: 2F6D4830EA8BEB3730-807A
No fault code found.
End-------------------------(Elapsed Time: 02:56)--------------------------
my autoscan above , help my wife is gone kill me
Friday,30,August,2019,20:22:18:38567
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
Dealer/Shop Name: MT SKODA SERVICE
Workshop Code: 231 44700 072242
VIN: TMBEP25XXXXXXXXXX License Plate:
Mileage: 61800km-38400mi Repair Order: bcm max errors
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 5J-SK25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 37 44 56
VIN: TMBEP25XXXXXXXXXX Mileage: 61800km-38400miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 CE HW: 03C 906 027 CE
Component: 1.4l R4 TSI H15 9971
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 53850 001 1048576
ASAM Dataset: EV_ECM14TSI01103C906027CE 001013
ROD: EV_ECM14TSI01103C906027CE.rod
VCID: 66C3ED1499F16A7F03-8032
No fault code found.
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 060 A HW: 0AM 927 769 D
Component: GSG DSG AG7 431 6563
Revision: 00043014 Serial number: TFK01108310139
Coding: 0000020
Shop #: WSC 53850 001 1048576
VCID: 285FA32C9B65BC0FF1-807C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AL HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 410148DB437300B3822712E9C2D200411700
Shop #: WSC 13765 790 00049
VCID: 081FC3ACBFA59C0FD1-805C
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 25021504650800
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3A574E161D2BFEB-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6Q0-907-044.lbl
Part No SW: 5J0 907 044 C HW: 5J0 907 044 C
Component: Climatronic H08 0103
Revision: K0000000
VCID: 2A5B592445698E1FE7-807E
1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
013 - Check DTC Memory
Freeze Frame:
Fault Status: 01101101
Fault Priority: 6
Fault Frequency: 2
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:19
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 122170091
Coding: 7A980B3848010000013806B03EEB9BC052C0621F60002041200400020000
Shop #: WSC 00046 648 00255
VCID: 2B555C204A9397171C-807E
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 230714 05 54 0403
Coding: 0330AD
Subsystem 2 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 3 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 4 - Part No SW: 3T0 959 537 E HW: 3T0 959 537 E
Component: E221__MFL-URO H07 0012
Serial number: 2164426
Coding: 810000
Subsystem 5 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 6 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3211
Serial number: --------------------
Coding: 020000
3 Faults Found:
01516 - Terminal 30; Left
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
00927 - Terminal 30 (Right)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 2
Reset counter: 132
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.20
Time: 00:04:54
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:. 7E0-919-475.clb
Part No SW: 7E0 919 475 S HW: 7N0 919 475
Component: PARKHILFE 8K H06 0210
Revision: -------- Serial number: 28261530202208
Coding: 108101
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParkAssis8K 001011
ROD: N/A
VCID: 428B1184D519765FCF-8016
No ASAM data for: "EV_VW75XParkAssis8K" (SK25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagT20 H09 0020
Revision: -------- Serial number: 003GX00UUUCP
Coding: 003230
Shop #: WSC 13765 790 00049
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B39A4ED29AE1F07-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40590NHDIJH62
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40590NHDIAOG2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5J0 920 841 F HW: 5J0 920 841 F
Component: KOMBI H04 0305
Serial number: 00000000000000
Coding: 120C01
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2D5152387C87992702-8078
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 032204
Shop #: WSC 00046 648 00255
VCID: 68DFE32C9BE57C0F31-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0305
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADB99248DE94E1F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 5JA 035 193 E HW: 5JA 035 193 E
Component: RNS315-EU H85 0501
Serial number: SKZAZ2R0659899
Coding: 040004110400000000000000
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_RNS315EUV2UDS 001705
ROD: EV_RNS315EUV2UDS.rod
VCID: 3A7B6964BDC93E9F97-806E
Data medium:
Subsystem 1 - Part No: 3AA 919 866
Component: EUR_W_V11 0073
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 13765
VCID: 2F6D4830EA8BEB3730-807A
No fault code found.
End-------------------------(Elapsed Time: 02:56)--------------------------
Last edited by VASILEIOS1972 on Sat Oct 12, 2019 2:01 pm, edited 1 time in total.
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit
plus I don't have reverse light , fog light
best regards
vv
best regards
vv
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit

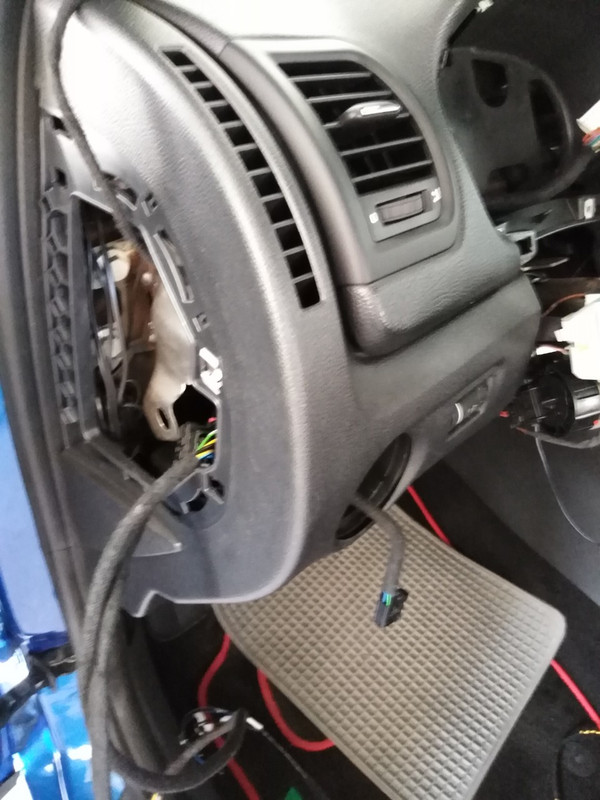

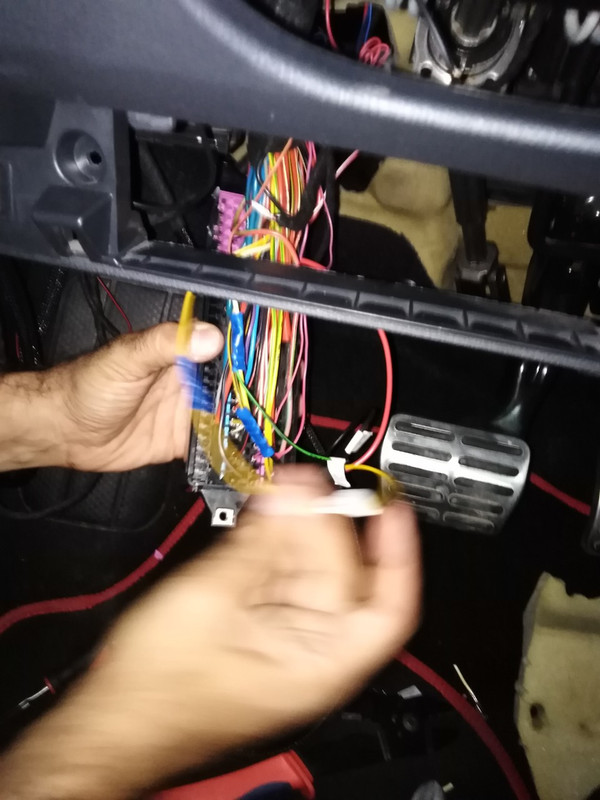

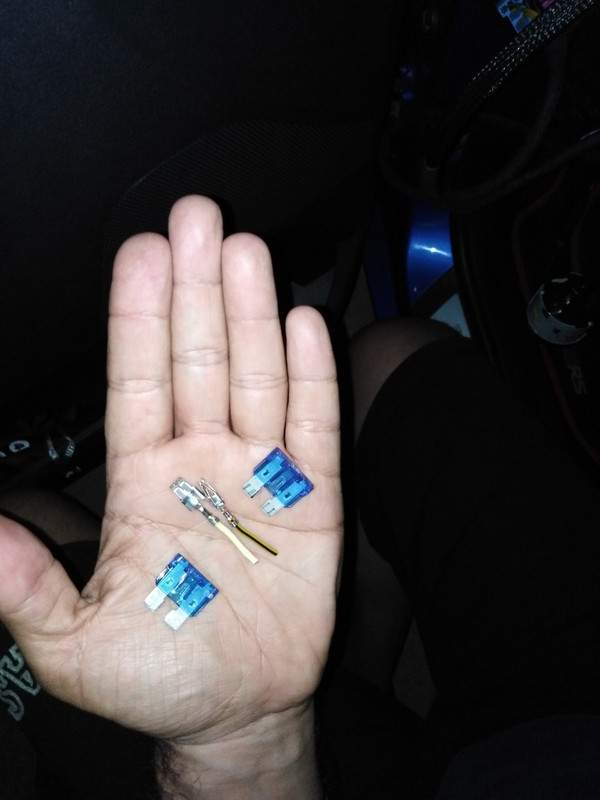

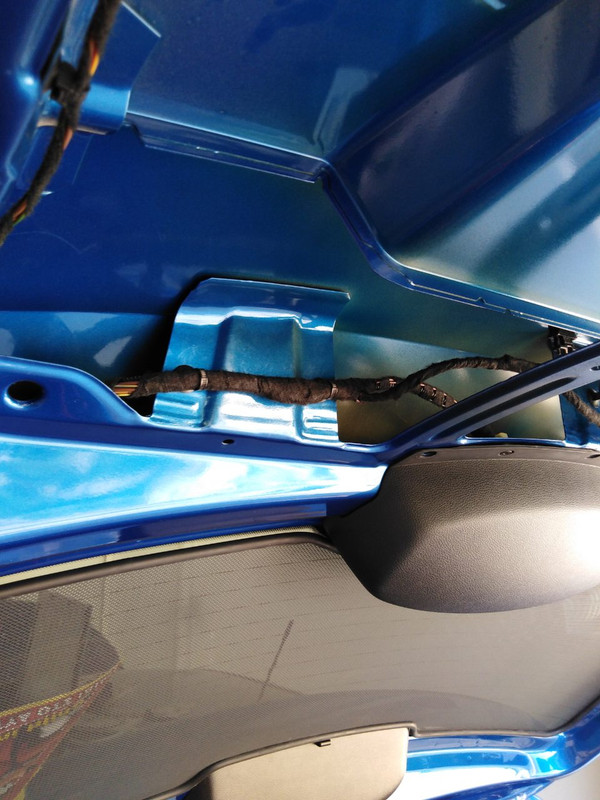

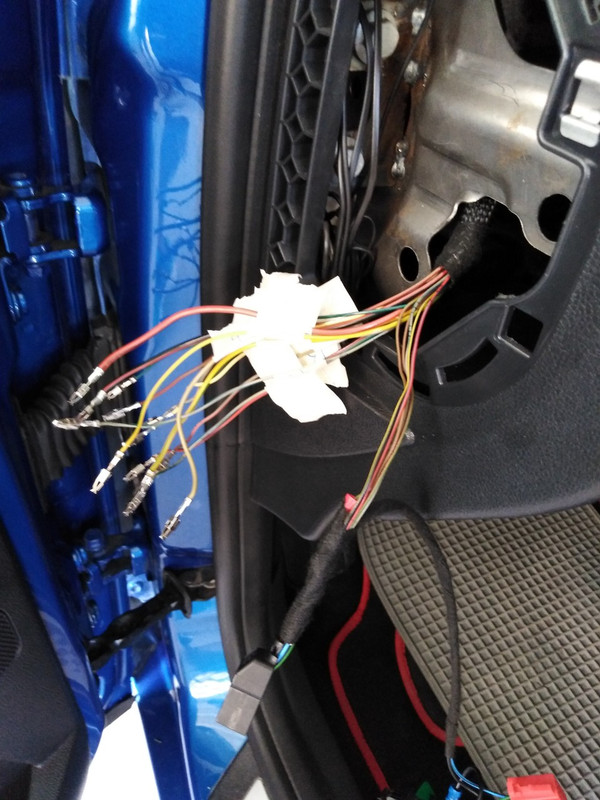

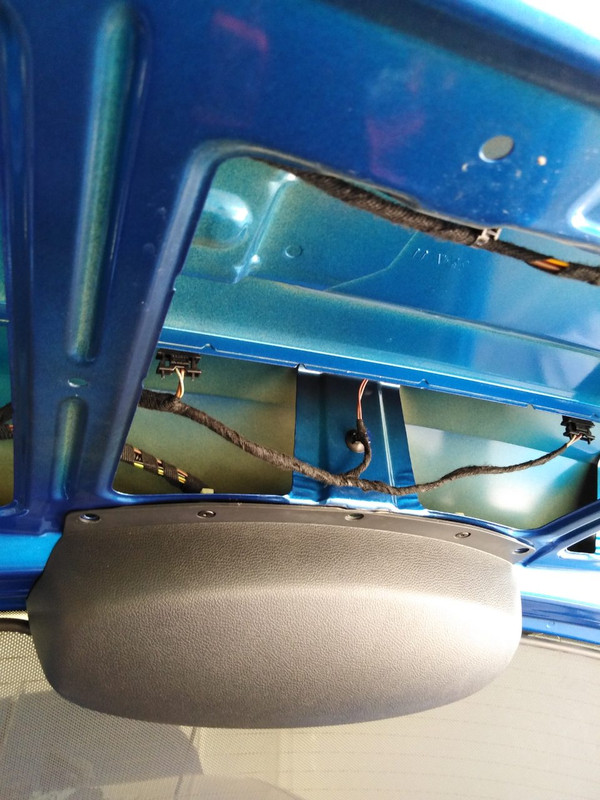

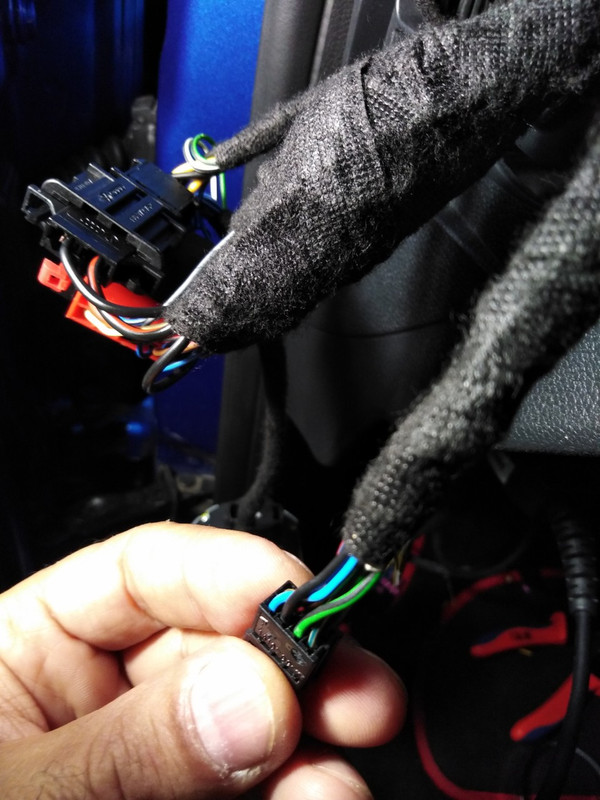

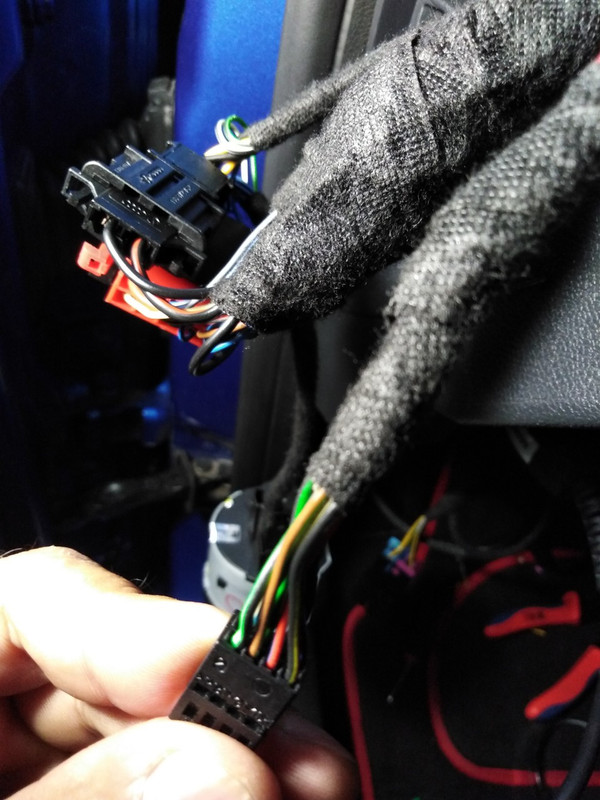

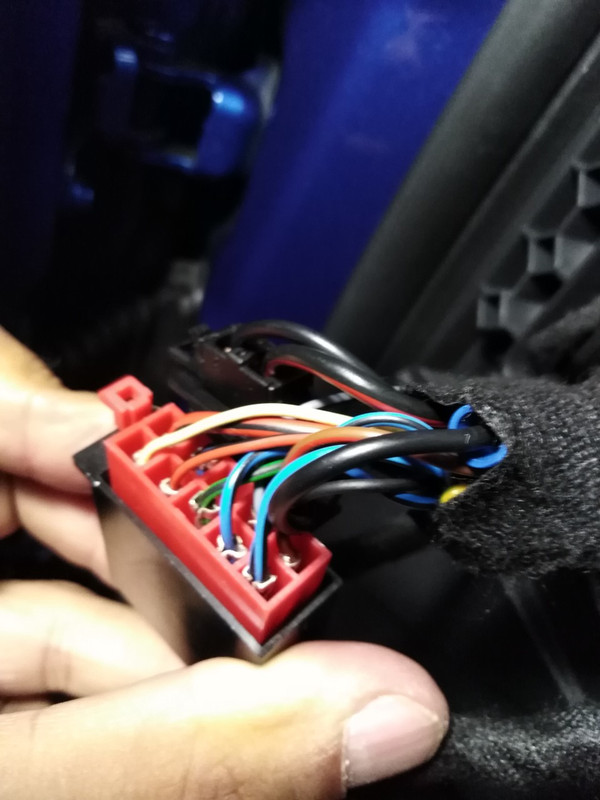

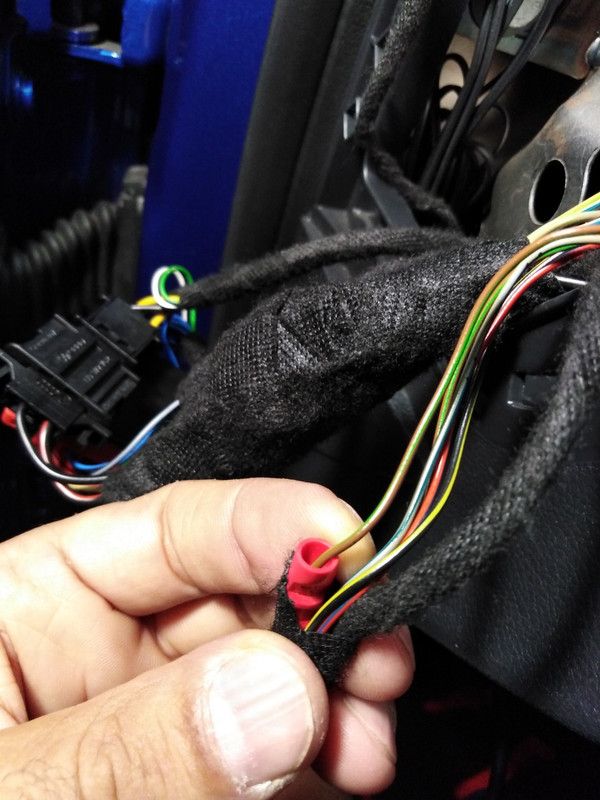

some installation photos
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
There is only one fault that causes all the others.
The power does not reach the BCM!
Red wires - green fuse 30A. viewtopic.php?f=41&t=73355&start=45#p559179
The power does not reach the BCM!
Red wires - green fuse 30A. viewtopic.php?f=41&t=73355&start=45#p559179
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
To insert the terminal of the red wire into the SB20 slot, it is necessary to move the PINK locking mechanism.
Have you done this before insert the terminal?
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit

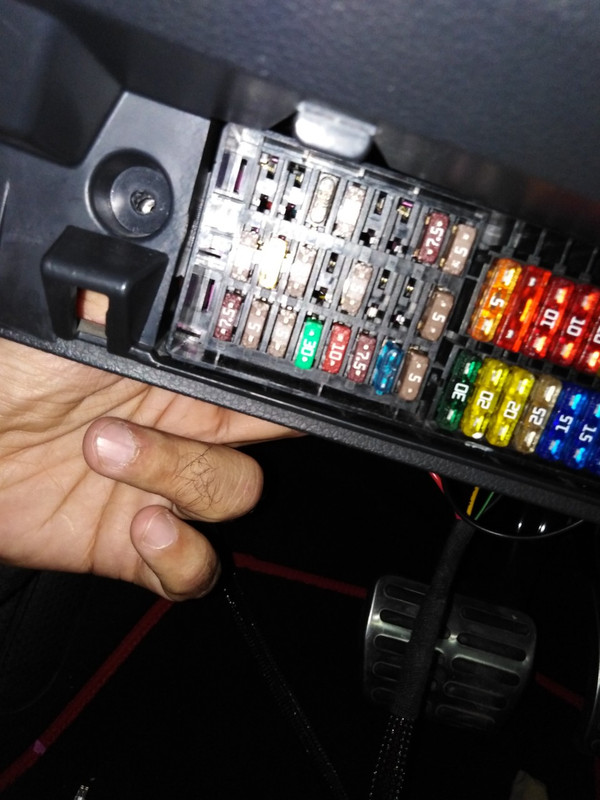

In your fuse box it's something like this:
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit
Exactly the same my friend
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
Check the green fuse.
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit
I am happy that the problem is so simple
I will check it tomorrow because I am very tired
I was working on fabia for four and a half hours
With the help of a very good friend professional
Mechanic and electrician on Vag group
I have two days to complete the installation with success only Saturday and Sunday
Best regards
Vasileios
I will check it tomorrow because I am very tired
I was working on fabia for four and a half hours
With the help of a very good friend professional
Mechanic and electrician on Vag group
I have two days to complete the installation with success only Saturday and Sunday
Best regards
Vasileios
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit
Good morning Fernando, you have absolutely right about fuse 30 and red wire everything works great!!!
But dimmer switch dimming by himself and no other light in interior, look the auto scan above
Saturday,31,August,2019,09:09:22:38567
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
Dealer/Shop Name: MT SKODA SERVICE
Workshop Code: 231 44700 072242
VIN: TMBEP25XXXXXXXXXX License Plate:
Mileage: 61800km-38400mi Repair Order: dimmer switch fault
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 5J-SK25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 37 44 56
VIN: TMBEP25XXXXXXXXXX Mileage: 61800km-38400miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 CE HW: 03C 906 027 CE
Component: 1.4l R4 TSI H15 9971
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 53850 001 1048576
ASAM Dataset: EV_ECM14TSI01103C906027CE 001013
ROD: EV_ECM14TSI01103C906027CE.rod
VCID: 66C3ED1499F16A7F03-8032
No fault code found.
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 060 A HW: 0AM 927 769 D
Component: GSG DSG AG7 431 6563
Revision: 00043014 Serial number: TFK01108310139
Coding: 0000020
Shop #: WSC 53850 001 1048576
VCID: 285FA32C9B65BC0FF1-807C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AL HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 410148DB437300B3822712E9C2D200411700
Shop #: WSC 13765 790 00049
VCID: 081FC3ACBFA59C0FD1-805C
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 25021504650800
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3A574E161D2BFEB-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6Q0-907-044.lbl
Part No SW: 5J0 907 044 C HW: 5J0 907 044 C
Component: Climatronic H08 0103
Revision: K0000000
VCID: 2A5B592445698E1FE7-807E
1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 2
Reset counter: 173
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.21
Time: 09:02:48
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 122170091
Coding: 7A980B3848010000013806B03EEB9BC052C0621F60002041200400020000
Shop #: WSC 44700 231 72242
VCID: 2B555C204A9397171C-807E
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 230714 05 54 0403
Coding: 0330AD
Subsystem 2 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 3 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 4 - Part No SW: 3T0 959 537 E HW: 3T0 959 537 E
Component: E221__MFL-URO H07 0012
Serial number: 2164426
Coding: 810000
Subsystem 5 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 6 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3211
Serial number: --------------------
Coding: 020000
1 Fault Found:
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 173
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.21
Time: 09:04:03
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:. 7E0-919-475.clb
Part No SW: 7E0 919 475 S HW: 7N0 919 475
Component: PARKHILFE 8K H06 0210
Revision: -------- Serial number: 28261530202208
Coding: 108101
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParkAssis8K 001011
ROD: N/A
VCID: 428B1184D519765FCF-8016
No ASAM data for: "EV_VW75XParkAssis8K" (SK25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagT20 H09 0020
Revision: -------- Serial number: 003GX00UUUCP
Coding: 003230
Shop #: WSC 13765 790 00049
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B39A4ED29AE1F07-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40590NHDIJH62
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40590NHDIAOG2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5J0 920 841 F HW: 5J0 920 841 F
Component: KOMBI H04 0305
Serial number: 00000000000000
Coding: 120C01
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2D5152387C87992702-8078
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 032204
Shop #: WSC 44700 231 72242
VCID: 68DFE32C9BE57C0F31-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0305
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADB99248DE94E1F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 5JA 035 193 E HW: 5JA 035 193 E
Component: RNS315-EU H85 0501
Serial number: SKZAZ2R0659899
Coding: 040004110400000000000000
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_RNS315EUV2UDS 001705
ROD: EV_RNS315EUV2UDS.rod
VCID: 3A7B6964BDC93E9F97-806E
Data medium:
Subsystem 1 - Part No: 3AA 919 866
Component: EUR_W_V11 0073
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 13765
VCID: 2F6D4830EA8BEB3730-807A
No fault code found.
End-------------------------(Elapsed Time: 02:52)--------------------------
what must do my friend
Best regards
vv
But dimmer switch dimming by himself and no other light in interior, look the auto scan above
Saturday,31,August,2019,09:09:22:38567
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 19.6.1.0
Data version: 20190529 DS308.0
www.Ross-Tech.com
Dealer/Shop Name: MT SKODA SERVICE
Workshop Code: 231 44700 072242
VIN: TMBEP25XXXXXXXXXX License Plate:
Mileage: 61800km-38400mi Repair Order: dimmer switch fault
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 5J-SK25 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 37 44 56
VIN: TMBEP25XXXXXXXXXX Mileage: 61800km-38400miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAVE) Labels:. 03C-907-309-V1.clb
Part No SW: 03C 906 027 CE HW: 03C 906 027 CE
Component: 1.4l R4 TSI H15 9971
Revision: L2H15--- Serial number:
Coding: 00250012002400000000
Shop #: WSC 53850 001 1048576
ASAM Dataset: EV_ECM14TSI01103C906027CE 001013
ROD: EV_ECM14TSI01103C906027CE.rod
VCID: 66C3ED1499F16A7F03-8032
No fault code found.
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 0AM-927-769.clb
Part No SW: 0AM 300 060 A HW: 0AM 927 769 D
Component: GSG DSG AG7 431 6563
Revision: 00043014 Serial number: TFK01108310139
Coding: 0000020
Shop #: WSC 53850 001 1048576
VCID: 285FA32C9B65BC0FF1-807C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels:. 6R0-907-37x-ESP82.clb
Part No SW: 6R0 907 379 AL HW: 6R0 907 379 AF
Component: ESP8.2i front H05 0001
Revision: --------
Coding: 410148DB437300B3822712E9C2D200411700
Shop #: WSC 13765 790 00049
VCID: 081FC3ACBFA59C0FD1-805C
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 25021504650800
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF3A574E161D2BFEB-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels: 6Q0-907-044.lbl
Part No SW: 5J0 907 044 C HW: 5J0 907 044 C
Component: Climatronic H08 0103
Revision: K0000000
VCID: 2A5B592445698E1FE7-807E
1 Fault Found:
00457 - Central Electronics Control Module / BCM (J519)
013 - Check DTC Memory - Intermittent
Freeze Frame:
Fault Status: 00101101
Fault Priority: 6
Fault Frequency: 2
Reset counter: 173
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.21
Time: 09:02:48
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 122170091
Coding: 7A980B3848010000013806B03EEB9BC052C0621F60002041200400020000
Shop #: WSC 44700 231 72242
VCID: 2B555C204A9397171C-807E
Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 230714 05 54 0403
Coding: 0330AD
Subsystem 2 - Part No SW: 6R0 959 801 M HW: 6R0 959 801 M Labels: 6R0-959-801.CLB
Component: J386__TSG_FT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 3 - Part No SW: 6R0 959 802 P HW: 6R0 959 802 P Labels: 6R0-959-802.CLB
Component: J387__TSG_BT 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 4 - Part No SW: 3T0 959 537 E HW: 3T0 959 537 E
Component: E221__MFL-URO H07 0012
Serial number: 2164426
Coding: 810000
Subsystem 5 - Part No SW: 6R0 959 811 D HW: 6R0 959 811 D
Component: J388__TSG_HL 002 3211
Serial number: --------------------
Coding: 020000
Subsystem 6 - Part No SW: 6R0 959 812 D HW: 6R0 959 812 D
Component: J389__TSG_HR 002 3211
Serial number: --------------------
Coding: 020000
1 Fault Found:
02195 - Dimmer Switch Instrument Panel & Switch Lighting (E20)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 173
Mileage: 61801 km
Time Indication: 0
Date: 2014.01.21
Time: 09:04:03
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:. 7E0-919-475.clb
Part No SW: 7E0 919 475 S HW: 7N0 919 475
Component: PARKHILFE 8K H06 0210
Revision: -------- Serial number: 28261530202208
Coding: 108101
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_VW75XParkAssis8K 001011
ROD: N/A
VCID: 428B1184D519765FCF-8016
No ASAM data for: "EV_VW75XParkAssis8K" (SK25)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 K HW: 6R0 959 655 K
Component: VW10AirbagT20 H09 0020
Revision: -------- Serial number: 003GX00UUUCP
Coding: 003230
Shop #: WSC 13765 790 00049
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9B39A4ED29AE1F07-801E
Crash sensor for side airbag: driver side:
Serial number: 3495RRB40590NHDIJH62
Crash sensor for side airbag: front passenger side:
Serial number: 3505RRB40590NHDIAOG2
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 5J0 920 841 F HW: 5J0 920 841 F
Component: KOMBI H04 0305
Serial number: 00000000000000
Coding: 120C01
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04113
ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
VCID: 2D5152387C87992702-8078
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 032204
Shop #: WSC 44700 231 72242
VCID: 68DFE32C9BE57C0F31-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 0305
Serial number: 00000000000000
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09.rod
VCID: 6ADB99248DE94E1F27-803E
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation (J794) Labels:| 1K0-035-27x-37.clb
Part No SW: 5JA 035 193 E HW: 5JA 035 193 E
Component: RNS315-EU H85 0501
Serial number: SKZAZ2R0659899
Coding: 040004110400000000000000
Shop #: WSC 44700 231 72242
ASAM Dataset: EV_RNS315EUV2UDS 001705
ROD: EV_RNS315EUV2UDS.rod
VCID: 3A7B6964BDC93E9F97-806E
Data medium:
Subsystem 1 - Part No: 3AA 919 866
Component: EUR_W_V11 0073
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 6Q0-423-156.clb
Part No: 6R0 423 156 B
Component: LenkhilfeTRW V277
Coding: 11241
Shop #: WSC 13765
VCID: 2F6D4830EA8BEB3730-807A
No fault code found.
End-------------------------(Elapsed Time: 02:52)--------------------------
what must do my friend
Best regards
vv
Last edited by VASILEIOS1972 on Sat Oct 12, 2019 2:02 pm, edited 1 time in total.
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
Ok, wait a moment ...You already know that your dimmer is not for your Fabia, but we will try to make it work.
Faults in 08, 09 Addresses are for that reason... wait a moment please.
-
ciclo
- Bling Bling Diamond Member
- Posts: 8038
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Auto lights retrofit
Try this new BCM coding:
7A980B3848010000013806B03EEB9BC052C0621F60022041200400020000
Please report the result. Thanks. I'll wait.
7A980B3848010000013806B03EEB9BC052C0621F60022041200400020000
Please report the result. Thanks. I'll wait.
-
VASILEIOS1972
- Bronze Member
- Posts: 182
- Joined: Tue Feb 12, 2019 2:53 pm
- Drives: Polo 6R 1.2 tsi , Skoda Fabia 5J Vrs 1.4
- Location: Greece
Re: Auto lights retrofit
nothing my friend the same issue , no interior dimming and the same fault
