Hi all,

Noob here, so please be gentle I've done a search on the topic of this thread, and get multiple hits for earlier models, but not the MK10 (2018 onwards).

My wife's 2018 SE Tsi the washer pump isn't working. Check the fuse I thought, but my manual has no fuse layout. All it says is something about 'at the time of publication, a fuse layout isn't available'.
No problem I thought, I'll Google it - but I cant find one anywhere.

The only hit I got in this area was "phileep" thread on dashcam installation, but there's no fuse box layout with slot key there. The fuse box is between the steering column and headlights switch, I've popped the cover to check there's not a layout printed on the back of the cover, and there isn't.

Really don't want to go back to the dealer if I can help it, well not until I've ruled out the fuse. So, two questions; does anyone have a fuse box layout, and/or does anyone know which fuse slot is for the washer pump?

Many thanks in advance!

Does this help?

Owner's manual is Edition 11.2018.

Hi S_94 - many thanks, that's just what I was looking for. No idea why my owners manual doesn't have this chart. That aside, the chart doesn't mention the wiper washer pump. Is there another fuse box in the engine compartment?

neilltupman wrote: Sun Nov 01, 2020 1:55 pm Hi S_94 - many thanks, that's just what I was looking for. No idea why my owners manual doesn't have this chart. That aside, the chart doesn't mention the wiper washer pump. Is there another fuse box in the engine compartment?

Hello neilltupman,

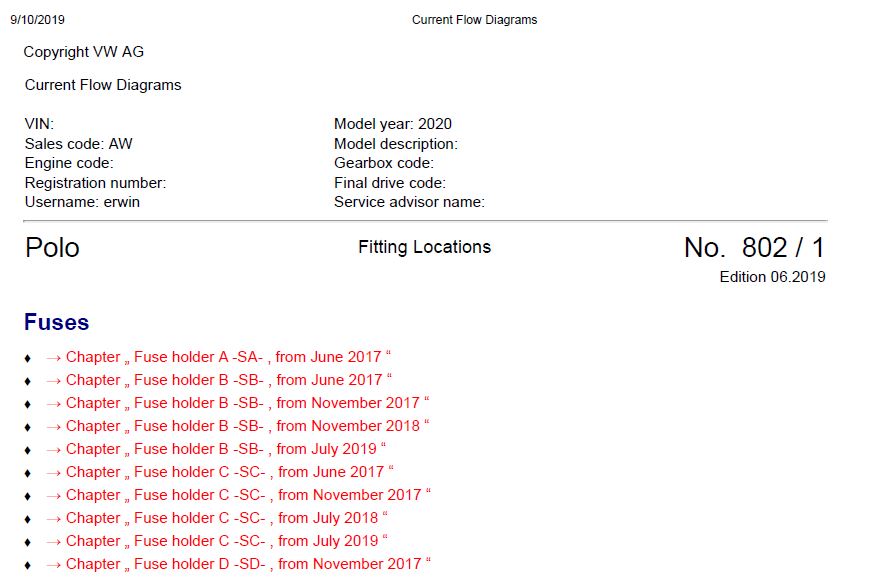

I have the VW original workshop Fuse & Relay diagrams of the AW Polo (MY20 or before), it is in pdf file format, so I can't upload it onto this forum.

If you interested, PM me your email address, I can email them to you.

Looks like ho8882000 can hopefully sort this for you!

As a side note, the engine compartment section in the Manual doesn't show any fuse diagrams.

ho8882000 wrote: Sun Nov 01, 2020 2:27 pm

neilltupman wrote: Sun Nov 01, 2020 1:55 pm Hi S_94 - many thanks, that's just what I was looking for. No idea why my owners manual doesn't have this chart. That aside, the chart doesn't mention the wiper washer pump. Is there another fuse box in the engine compartment?

Hello neilltupman,

I have the VW original workshop Fuse & Relay diagrams of the AW Polo (MY20 or before), it is in pdf file format, so I can't upload it onto this forum.

If you interested, PM me your email address, I can email them to you.


Hi there - that would be fantastic, thanks! Will figure out how to PM you now.

neilltupman wrote: Sun Nov 01, 2020 3:01 pm

ho8882000 wrote: Sun Nov 01, 2020 2:27 pm

neilltupman wrote: Sun Nov 01, 2020 1:55 pm Hi S_94 - many thanks, that's just what I was looking for. No idea why my owners manual doesn't have this chart. That aside, the chart doesn't mention the wiper washer pump. Is there another fuse box in the engine compartment?

Hello neilltupman,

I have the VW original workshop Fuse & Relay diagrams of the AW Polo (MY20 or before), it is in pdf file format, so I can't upload it onto this forum.

If you interested, PM me your email address, I can email them to you.


Hi there - that would be fantastic, thanks! Will figure out how to PM you now.

Hmmm, as I'm a new member I cannot send PMs. My email address is my username "at" hotmail dot com.

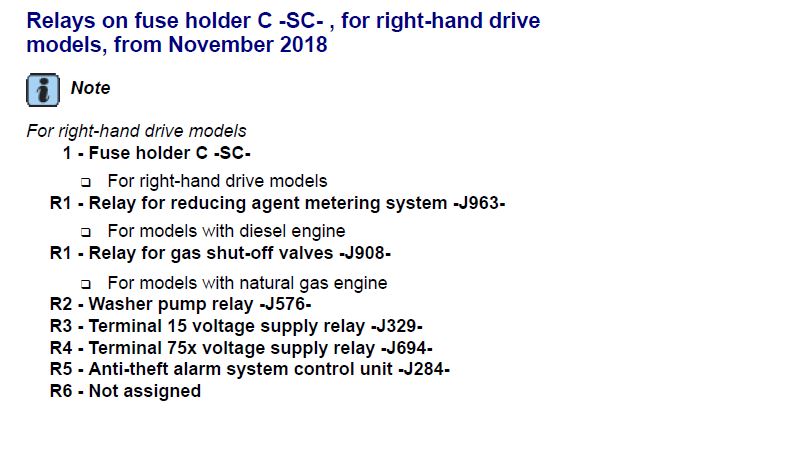

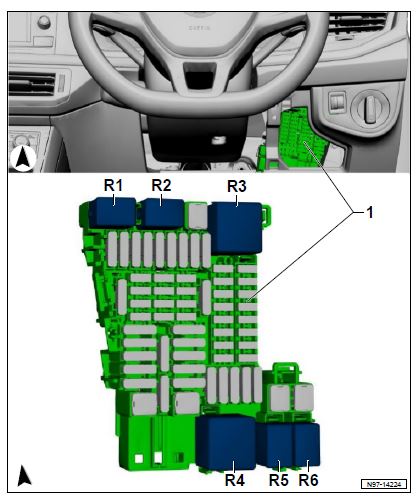

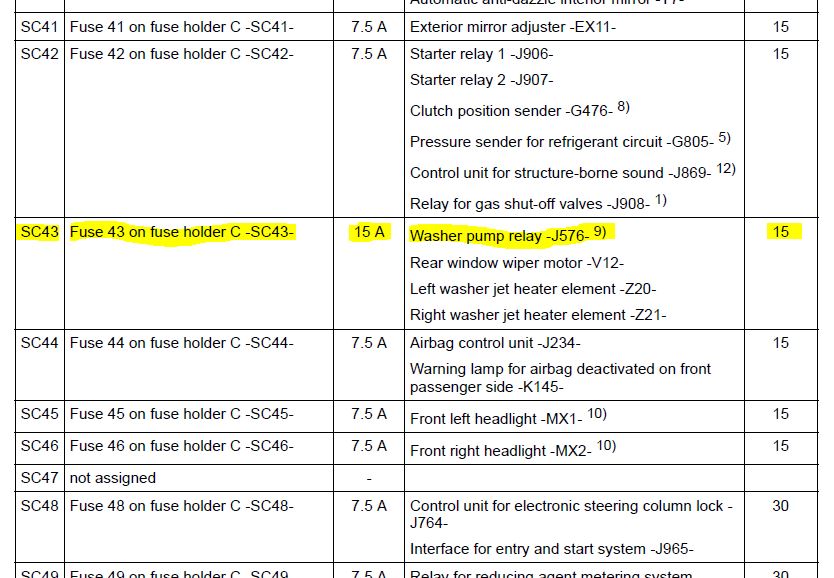

However , looking at your screenshots you've highlighted fuse 43 on fuse holder C, in location SC43. Yet the exploded view key doesn't show where SC43 is. Then, there's reference to relay R2 in another view. Confusing, or am I being thick?

neilltupman wrote: Sun Nov 01, 2020 3:11 pm

neilltupman wrote: Sun Nov 01, 2020 3:01 pm

ho8882000 wrote: Sun Nov 01, 2020 2:27 pm

Hello neilltupman,

I have the VW original workshop Fuse & Relay diagrams of the AW Polo (MY20 or before), it is in pdf file format, so I can't upload it onto this forum.

If you interested, PM me your email address, I can email them to you.


Hi there - that would be fantastic, thanks! Will figure out how to PM you now.

Hmmm, as I'm a new member I cannot send PMs. My email address is my username "at" hotmail dot com.

However , looking at your screenshots you've highlighted fuse 43 on fuse holder C, in location SC43. Yet the exploded view key doesn't show where SC43 is. Then, there's reference to relay R2 in another view. Confusing, or am I being thick?

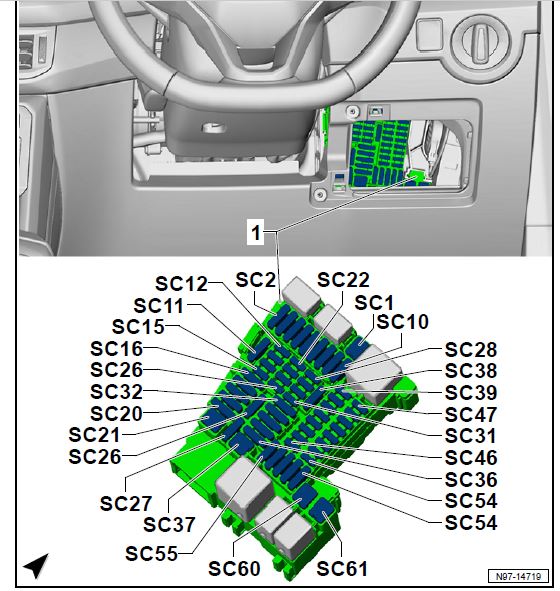

The picture show you the position of SC39 and SC46, from here onward you will have to count which one is SC43.
Because of the size of the picture, they can't possibility label every single fuse number on it.

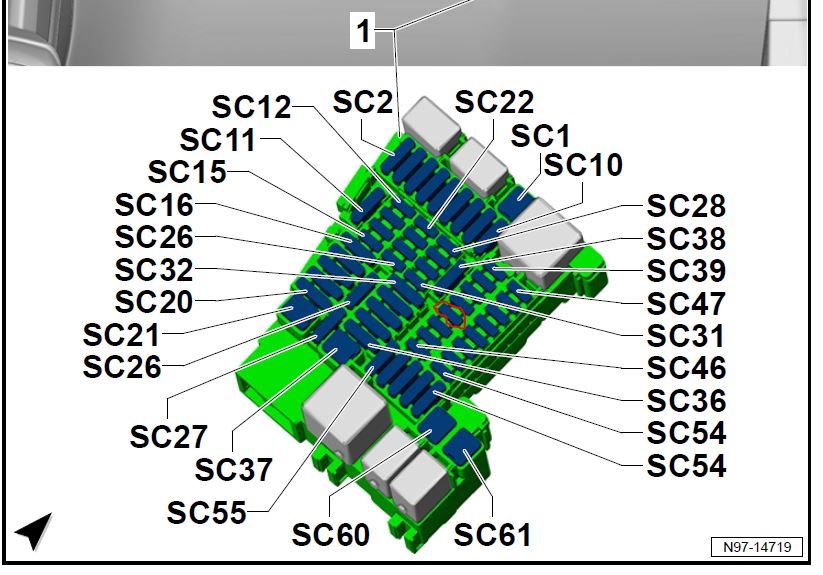

But I circled SC43 in RED below:

ho8882000 wrote: Sun Nov 01, 2020 3:44 pm

neilltupman wrote: Sun Nov 01, 2020 3:11 pm

neilltupman wrote: Sun Nov 01, 2020 3:01 pm

Hi there - that would be fantastic, thanks! Will figure out how to PM you now.

Hmmm, as I'm a new member I cannot send PMs. My email address is my username "at" hotmail dot com.

However , looking at your screenshots you've highlighted fuse 43 on fuse holder C, in location SC43. Yet the exploded view key doesn't show where SC43 is. Then, there's reference to relay R2 in another view. Confusing, or am I being thick?

The picture show you the position of SC39 and SC46, from here onward you will have to count which one is SC43.
Because of the size of the picture, they can't possibility label every single fuse number on it.

But I circled SC43 in RED below:

Right, got it - many thanks. 15A mini blade.

ho8882000 wrote: Sun Nov 01, 2020 3:44 pm

neilltupman wrote: Sun Nov 01, 2020 3:11 pm

neilltupman wrote: Sun Nov 01, 2020 3:01 pm

Hi there - that would be fantastic, thanks! Will figure out how to PM you now.

Hmmm, as I'm a new member I cannot send PMs. My email address is my username "at" hotmail dot com.

However , looking at your screenshots you've highlighted fuse 43 on fuse holder C, in location SC43. Yet the exploded view key doesn't show where SC43 is. Then, there's reference to relay R2 in another view. Confusing, or am I being thick?

The picture show you the position of SC39 and SC46, from here onward you will have to count which one is SC43.
Because of the size of the picture, they can't possibility label every single fuse number on it.

But I circled SC43 in RED below:

Right, got it - many thanks. 15A mini blade.

neilltupman wrote: Sun Nov 01, 2020 4:08 pm

ho8882000 wrote: Sun Nov 01, 2020 3:44 pm

neilltupman wrote: Sun Nov 01, 2020 3:11 pm

Hmmm, as I'm a new member I cannot send PMs. My email address is my username "at" hotmail dot com.

However , looking at your screenshots you've highlighted fuse 43 on fuse holder C, in location SC43. Yet the exploded view key doesn't show where SC43 is. Then, there's reference to relay R2 in another view. Confusing, or am I being thick?

The picture show you the position of SC39 and SC46, from here onward you will have to count which one is SC43.
Because of the size of the picture, they can't possibility label every single fuse number on it.

But I circled SC43 in RED below:

Right, got it - many thanks. 15A mini blade.

Check you mail box, I sent you an email.

ho8882000 wrote: Mon Nov 02, 2020 9:41 am

neilltupman wrote: Sun Nov 01, 2020 4:08 pm

ho8882000 wrote: Sun Nov 01, 2020 3:44 pm

The picture show you the position of SC39 and SC46, from here onward you will have to count which one is SC43.
Because of the size of the picture, they can't possibility label every single fuse number on it.

But I circled SC43 in RED below:

Right, got it - many thanks. 15A mini blade.

Check you mail box, I sent you an email.

Many thanks, I got your email - much appreciated.

I changed the 15A fuse in slot SC43 but nothing changed, so it looks like a trip to the dealer to see if its the pump itself.

neilltupman wrote: Mon Nov 02, 2020 9:07 pm

ho8882000 wrote: Mon Nov 02, 2020 9:41 am

neilltupman wrote: Sun Nov 01, 2020 4:08 pm
Right, got it - many thanks. 15A mini blade.

Check you mail box, I sent you an email.

Many thanks, I got your email - much appreciated.

I changed the 15A fuse in slot SC43 but nothing changed, so it looks like a trip to the dealer to see if its the pump itself.

Please give us some update after the dealer find the root cause of the problem. Thanks.
