lamps H4>H7/H7 Problem!

[Lee_Liu_Te]

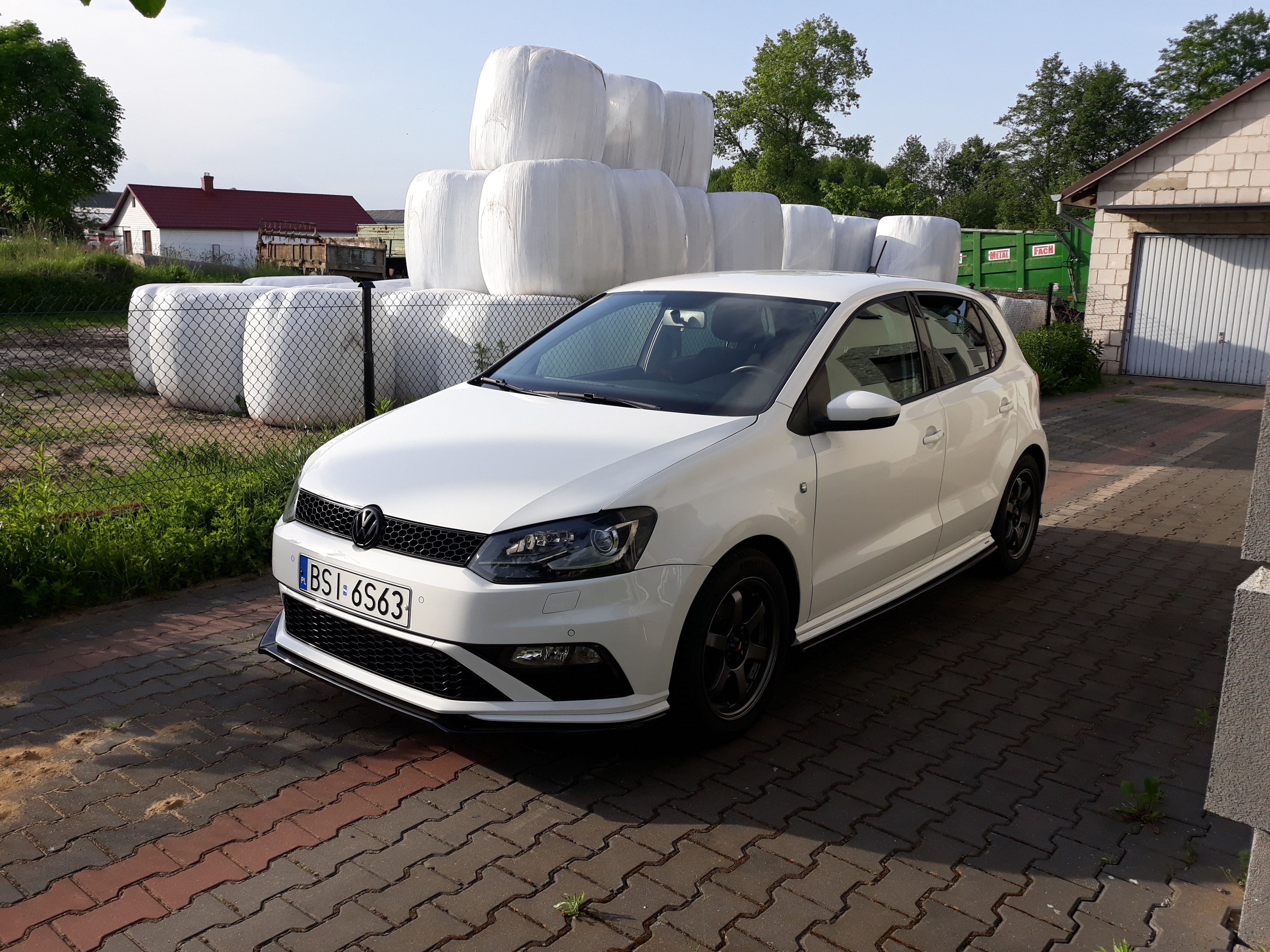

Hey guys I have a polo 6r 1.2 tdi bluemotion 2012. I converted the lights from h4 to h7 / h7. When the lamps are connected, the short ones go out when lighting long lamps. I saw a Russian guide on cable bridging at the steering wheel but it doesn't work for me. I also have a diagram about releasing a new cable from the J331 relay to the light switch, but I can't trace it at home (unless this diagram does not apply to my car viewtopic.php?f=56&t=68139. Request to you as if someone gave me a photo where J331 is in bluemotion. Or a wiring diagram (photo where I hold it with my hand) which goes to pin 40 at the steering wheel I would be very grateful. https: //scontent-frt3-1.xx.fbcdn net / v / t1.15752-9 / 98362294_652906858625516_3137040397851688960_n.jpg? _nc_cat = 107 & _nc_sid = b96e70 & _nc_ohc = ApFoWUdoZOgAX8GRNsf & _nc_ht = scontent-frt3-1.xx & oh = af70b77ed707520eb825df020f6b8fee & oe = 5EE6EA53

Sorry for my low English.

[iichel]

Do you have vcds? If so, please post your coding of 09 Central electrics

[Lee_Liu_Te]

I don't have, but my friend may have VCDS. Can you tell me step by step (photo, sreenshoot) how do I encode 09 central electrice? When I do this, do I have to add any additional wire from switch J331 to the light switch or something similar? Thank you so much for help!!!

[iichel]

First I need you to tell me the bcm part number and its coding. You can find these with vcds

[Lee_Liu_Te]

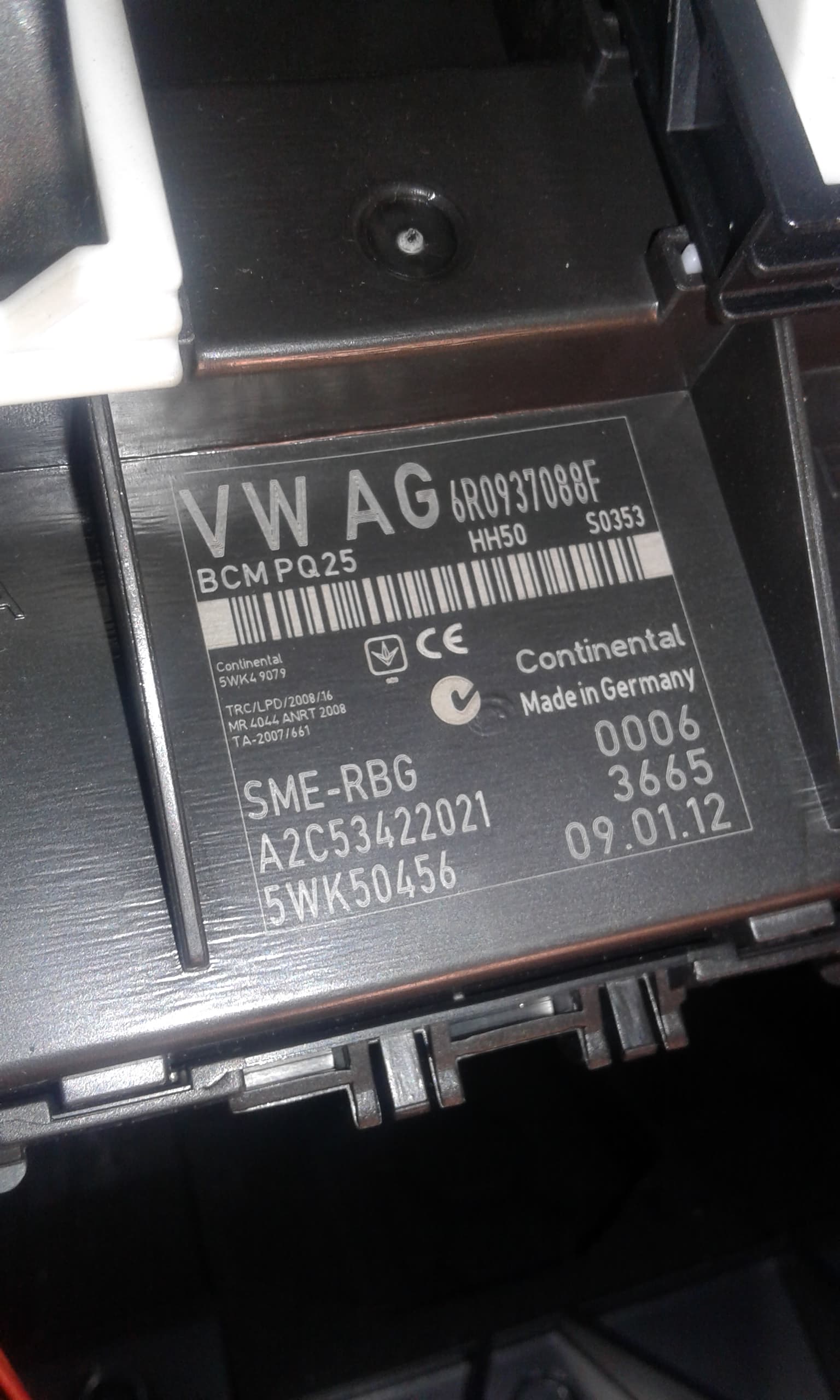

6R0937088F HH50 S0353

[iichel]

byte 22 of your bcm must be coded to 00

[Lee_Liu_Te]

Can you describe to me (photo) how to find this byte22 and how coding 00? I've never used VCDS and I'm green. Do I need to do anything after coding?

[iichel]

I'm not going to do it picture by picture, but this is where to click:
Open VCDS
Select control module
09 Central Electrics
Coding
Long code helper
Navigate to byte 22 in the squares
Write 00 with your keyboard
Press X to close Lcode2
Do it!
Coding was accepted --> OK
Open long code helper to check if coding changed
Check function of your high beam

[Lee_Liu_Te]

Thank you very much. So I change the entire byte22 (entering 00 in the square). bits in byte22 do not change (how are they there?). I hope I get it. Thanks again Iichel

[iichel]

Well, you're basically disabling byte 22 bit 2 (BIN 00000100 is HEX 04) but VCDS does not have a label for this byte. So you're doing it by keyboard, manually.

[Lee_Liu_Te]

Thanks a lot iichel. It works!!! I put you a big beer

[Colin21]

Hi, im sorry for cheating the forum with a seat ibiza sc 2012 but I have the some problem and was hoping if the line 22 also applies to seat, if anyone here would happen to know. Kind regard, Colin

[iichel]

i suppose you could try
