Skoda Rapid BCM Max Adaptation. 6R093708P upgrade 7h0937090d BUT!

[ciclo]

In addition to everything mentioned above, and within the possibilities of having made a mistake when doing the electrical installation, and since the original T17/4 and T17/7 wires have the same color, I wonder if whoever did the electrical installation confused these wires.



The correct one to transfer to the coupling is T17/7.
The T17/4 is the one that should be isolated.

IMP. Check diagrams, guide/instructions on page 3.
viewtopic.php?p=606872&sid=0204cfceaee7 ... d6#p606872
viewtopic.php?p=606891&sid=0204cfceaee7 ... d6#p606891

Just a thought...

[Juha]

Your comments on this are needed.

[ciclo]

Hi Juha, if you're referring to me, I can help you with anything you want to know about this thread.

[omerkartal]

Hello Ciclo,
It has been a long time. I hope you are doing well.
I'm writing to you again because I'm still trying to solve one remaining issue after completing the BCM MAX retrofit on my 2014 Skoda Rapid.
The retrofit is based on your wiring diagrams and recommendations. My BCM is 7H0 937 090 D (H78 0726).
The current status is:
Rain/Light Sensor works correctly.
AUTO headlights work correctly.
Coming Home / Leaving Home work.
Flash-to-pass works normally.
When I pull the stalk, the high beams switch on and the blue high beam indicator lights up.
However, when I push the stalk forward, the high beams do not latch on and the blue indicator does not illuminate.
I also carried out several tests:
I checked the BCM long coding in detail using LCode. I could not find anything obviously wrong.
I tested different Byte 18 Light Setup configurations, but there was no change.
In 09 - Central Electronics Output Tests, all other lighting outputs work correctly, but the high beam output does not activate at all.
Since the high beam also does not work during Output Test, I no longer think the problem is related to the steering column switch.
Do you think this could be caused by:
an incorrect wiring connection,
an incorrect BCM parameter set (dataset),
or is there something specific in the long coding that I may have overlooked?
If you have time, could you please have another look at my retrofit? I would really appreciate your advice because this is the only remaining issue preventing the retrofit from being fully OEM.
Thank you very much for all your previous help.
Best regards,
Ömer

[ciclo]

If you've finally decided to personally check the wiring that others installed (I don't remember exactly), refer to the explanations/posts I made here where the diagrams are located.

I haven't checked this thread again, but in case I didn't mention it, channels 53 and 54 of the BCM should both have a value of 0 (this affects the behavior of the high beams and other functions).


I wish you the best of luck from the bottom of my heart!

[omerkartal]

Thank you for your reply, Ciclo.
I checked Adaptation channels 53 and 54. Both are already set to 0.
I also performed Output Tests in module 09.
All lighting outputs work correctly except the high beam output.
During the Output Test, the BCM never activates the high beam output.
Flash-to-pass still works normally, but the latched high beam and the BCM Output Test do not.
Does this still point to a wiring issue, or could the BCM itself have an incorrect parameter set (dataset) or output configuration?

[ciclo]

The BCM 7H0937090D should work correctly according to the coding.

Please post a recent/fresh VCDS autoscan.

The most likely cause is a wiring installation issue. However, this BCM can be flashed to 7E0937090(x) (higher than 7H0) if you need to run tests to rule out a firmware problem.
If you personally lack the skills ot tools to perform checks, we won't achieve the magic moment of the solution.

[omerkartal]

Thank you for your reply.

I have attached the fresh VCDS Auto-Scan you requested.

As you mentioned, the problem could indeed be related to the wiring, so we are going to check the entire wiring installation again.

Is there any specific wire, connector, pin, or circuit that you would recommend checking first based on my symptoms?

Thank you again for your time and help.

Code: Select all

Tuesday,04,August,2026,11:33:01:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.3.0.0 (x64)
Data version: 20180927 DS296.0
www.Ross-Tech.com


VIN: TMBEJ6NH1E4530272   License Plate: FFCXCXC
Mileage: 180230km-111989mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: NH-SK25 (6N0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 2E 44 56 77

VIN: TMBEJ6NH1E4530272   Mileage: 180230km-111989miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Sporadic communication error 1000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: Malfunction 1010
77-Telephone -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine (J623-CAYB)       Labels:. 03L-906-023-CAY.clb
   Part No SW: 03L 906 023 QJ    HW: 03L 906 023 LK
   Component: 1,6l R4 CR td H33 5396
   Revision: --H33---    Serial number:
   Coding: 00254016002400080000
   Shop #: WSC 73430 031 00014
   ASAM Dataset: EV_ECM16TDI02103L906023QJ 003002
   ROD: EV_ECM16TDI02103L906023LL.rod
   VCID: 7EF34BFFE1F77C7BB1-802A

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 0AM-927-769.clb
   Part No SW: 0AM 300 065 L    HW: 0AM 927 769 D
   Component: GSG DSG AG7     431 6562
   Revision: 00043014    Serial number: CU501402236217
   Coding: 0000020
   Shop #: WSC 66565 257 00032
   VCID: 387F9DE74B53824B3B-806C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: Redir Fail!
   Part No SW: 6R0 614 517 BK    HW: 6R0 614 517 BK
   Component: EBC 460 ESP   H08 0004
   Serial number: A00JJGQ
   Coding: 4129481489B400B4824912D991A200404B0900
   Shop #: WSC 73430 031 00014
   ASAM Dataset: EV_Brake1ESPAEntryTRW 002011
   ROD: EV_Brake1ESPAEntryTRW.rod
   VCID: 7DF14CF3ECF16763A8-8028

1 Fault Found:
0459 - Tire Pressure Warning
          C102D 00 [008] -  -
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 64
                    Mileage: 179505 km
                    Date: 2026.08.04
                    Time: 18:52:29

                    DTC: 00 01 CB


-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 6Q0-907-044.lbl
   Part No SW: 5JA 907 044     HW: 5JA 907 044
   Component: Climatronic   H05 0106
   Revision: A1001000    Serial number:  1312101A-0409
   VCID: 78FF5DE7CBD3424BFB-802C

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
   Part No SW: 7H0 937 090 D    HW: 7H0 937 090
   Component: BCM PQ25 Max4 H78 0726
   Revision: B9078001    Serial number: 0661 193160019
   Coding: 7A980B2000C32C00010806B07EEB9EC8EE80410F60AE2041020000024000
   Shop #: WSC 12345 123 61029
   VCID: 2F6DA6BB7E1D45F36A-807A

   Subsystem 1 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 101109 05  54  0402
   Coding: 0350CD

   Subsystem 2 - Part No SW: 5E0 919 719 F    HW: 5E0 919 719 F
   Component: E221__MFL-PR6  H04 0130
   Serial number: 000000000A1751040314
   Coding: 820000

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 5JA-919-475.clb
   Part No SW: 5JA 919 475 A    HW: 5J0 919 475 A
   Component: PARKHILFE 3K  H11 0005
   Revision: --------    Serial number: 32901406403569
   Coding: 100102
   Shop #: WSC 73430 031 00014
   ASAM Dataset: EV_EPHVA14SK25X0000 001002
   ROD: EV_EPHVA14SK25X0000.rod
   VCID: 4487F917CF9BD6ABA7-8010

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5Q0-959-655.clb
   Part No SW: 34D 959 655 B    HW: 34D 959 655 B
   Component: AirbagVW20    004 0365
   Serial number: 003K7R0344SA
   Coding: 88CCC00000000000400000C8000000000065
   Shop #: WSC 73430 790 00014
   ASAM Dataset: EV_AirbaVW20SMEVW253 001108
   ROD: EV_AirbaVW20SMEVW253.rod
   VCID: 3467A9D79F3B662B17-8060

   Side Sensor Driver Front:
   Subsystem 1 - Part No SW: -----------    HW: 480 411 902 14
   Component: SideSensor_Df  003 0148
   Serial number: 349651A01A1509535F8E
   Coding: 2D2D2D

   Side Sensor Passenger Front:
   Subsystem 2 - Part No SW: -----------    HW: 480 410 103 14
   Component: SideSensor_Pf  003 0148
   Serial number: 350651A01B440AF26F6I
   Coding: 2D2D2D

   Side Sensor Driver Rear:
   Subsystem 3 - Part No SW: -----------    HW: 480 410 103 14
   Component: SideSensor_Dr  003 0148
   Serial number: 351651A01B4403027F5/
   Coding: 2D2D2D

   Side Sensor Passenger Rear:
   Subsystem 4 - Part No SW: -----------    HW: 480 410 103 14
   Component: SideSensor_Pr  003 0148
   Serial number: 352651A01B4C05642C14
   Coding: 2D2D2D

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 5JA 920 840 E    HW: 5JA 920 840 E
   Component: KOMBI         H04 0709
   Serial number: 00000000000000
   Coding: 111A01
   Shop #: WSC 12345 123 61029
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
   VCID: 3C7781F7B76BAE6BDF-8068

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
   Part No SW: 6N0 909 901     HW: 7H0 937 090
   Component: GW-K-CAN TP20 H78 0726
   Revision: B9078001
   Coding: 932200
   Shop #: WSC 12345 123 61029
   VCID: 70EF65C7A3A31A0B33-8024

2 Faults Found:
01304 - Radio
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 236
                    Reset counter: 108
                    Mileage: 179271 km
                    Time Indication: 0
                    Date: 2020.12.25
                    Time: 12:07:22

02078 - Media Player Position 3 (R120)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 235
                    Reset counter: 108
                    Mileage: 179271 km
                    Time Indication: 0
                    Date: 2020.12.25
                    Time: 12:07:22


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0709
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09.rod
   VCID: 6ADB77AF8D7FE0DB7D-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels:. 5N0-035-342.lbl
   Part No SW: 5N0 035 342 G    HW: 5N0 035 342 G
   Component: SG EXT.PLAYER H19 0770
   Revision: A1001003    Serial number: 7665928097
   Coding: 030100
   Shop #: WSC 73430 790 00014
   VCID: 2B55B2AB4A0539D346-807E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J792)       Labels:| 6Rx-909-144-V2.clb
   Part No SW: 6R1 909 144 R    HW: 6R1 909 144 E
   Component: EPS_TRW_ALow  311 3111
   Serial number: CE3C0068
   Coding: 0003
   Shop #: WSC 63796 001 1048576
   ASAM Dataset: EV_SteerAssisUDSTRW 011021
   ROD: EV_SteerAssisUDSTRW_011.rod
   VCID: 4683E31FF9A7E4BBB9-8012

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
   Part No SW: 7P6 035 730 N    HW: 7P6 035 730 N
   Component: TELEFON       H15 4217
   Revision: 1B001001    Serial number: 00007665927221
   Coding: 0200000000010110
   Shop #: WSC 73430 031 00014
   ASAM Dataset: EV_UHVNA 002720
   ROD: EV_UHVNA_002.rod
   VCID: 3D718CF3AC71A763E8-8068

2 Faults Found:
9457427 - Left audio channel for speech/telephone
          B104F 13 [009] - Short to GND
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 2
                    Mileage: 179262 km
                    Date: 2026.08.04
                    Time: 11:41:40

9457171 - Right audio channel for speech/telephone
          B104E 13 [009] - Short to GND
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 2
                    Mileage: 179262 km
                    Date: 2026.08.04
                    Time: 11:41:40


End-------------------------(Elapsed Time: 02:56)--------------------------

[ciclo]

A good starting point before checking the installed wiring would be to code the BCM as follows:

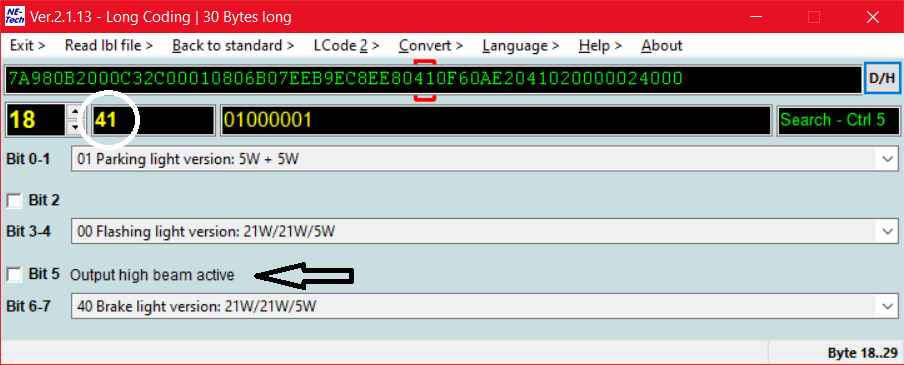

Currently, the hexadecimal value of Byte18 Bit5 is 41...

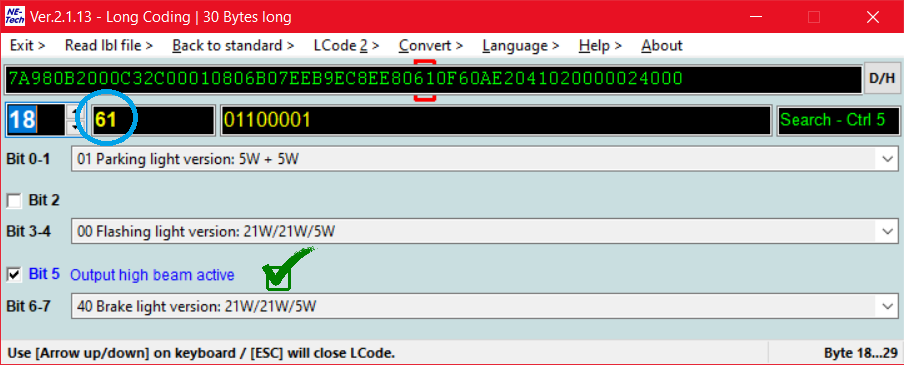

... and should be 61...


For a direct change:
Copy and paste the following new BCM coding.
7A980B2000C32C00010806B07EEB9EC8EE80610F60AE2041020000024000

If it still doesn't work, proceed to check the wiring. You should primarily focus your check on this part of the wiring ("wire to T73a/62"):
viewtopic.php?p=606992#p606992 indications in green on the diagram (do not confuse with T73b/52).

[omerkartal]

Hello Ciclo,
I changed the coding exactly as you suggested (Byte 18 from 60 to 61), but unfortunately there was no change.
The high beam still does not activate during the BCM Output Test, and pushing the stalk forward still does not latch the high beam.
Since the high beam output is also inactive during the Output Test, I agree that the problem is probably not related to the coding.
We will inspect the wiring again, paying special attention to the T73a/62 wire as you recommended.
Thank you again for your valuable help
