Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
To do this, I have to unscrew the steering wheel and pass the wires through it, it will take me some time due to the limited amount of time, these 2 cables will solve the problem with the mirrors and windows?
-
ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Do not know, maybe it won't fix it and you have to reinstall everything as it was at the beginning.
---
https://www.youtube.com/watch?v=wKz3wxf_6N4
.
.
https://www.youtube.com/watch?v=PUrg02fFTkg
.
.
.
.
https://www.youtube.com/watch?v=Ob0QCogk040
https://www.youtube.com/watch?v=SVSDAqcBbsU
---
https://www.youtube.com/watch?v=wKz3wxf_6N4
.
.
https://www.youtube.com/watch?v=PUrg02fFTkg
.
.
.
.
https://www.youtube.com/watch?v=Ob0QCogk040
https://www.youtube.com/watch?v=SVSDAqcBbsU
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Ok Cyclo, in my free time I will try to understand it and we will come back to the topic on Monday 23.08, I do not know if my car has cables T73b / 57 to T32 / 29 and T73b54 to T32 / 28 because I do not have time to check it now, but looking at the wiring ibizy 6j5 2013, this is where the cables are connected
- Attachments
-

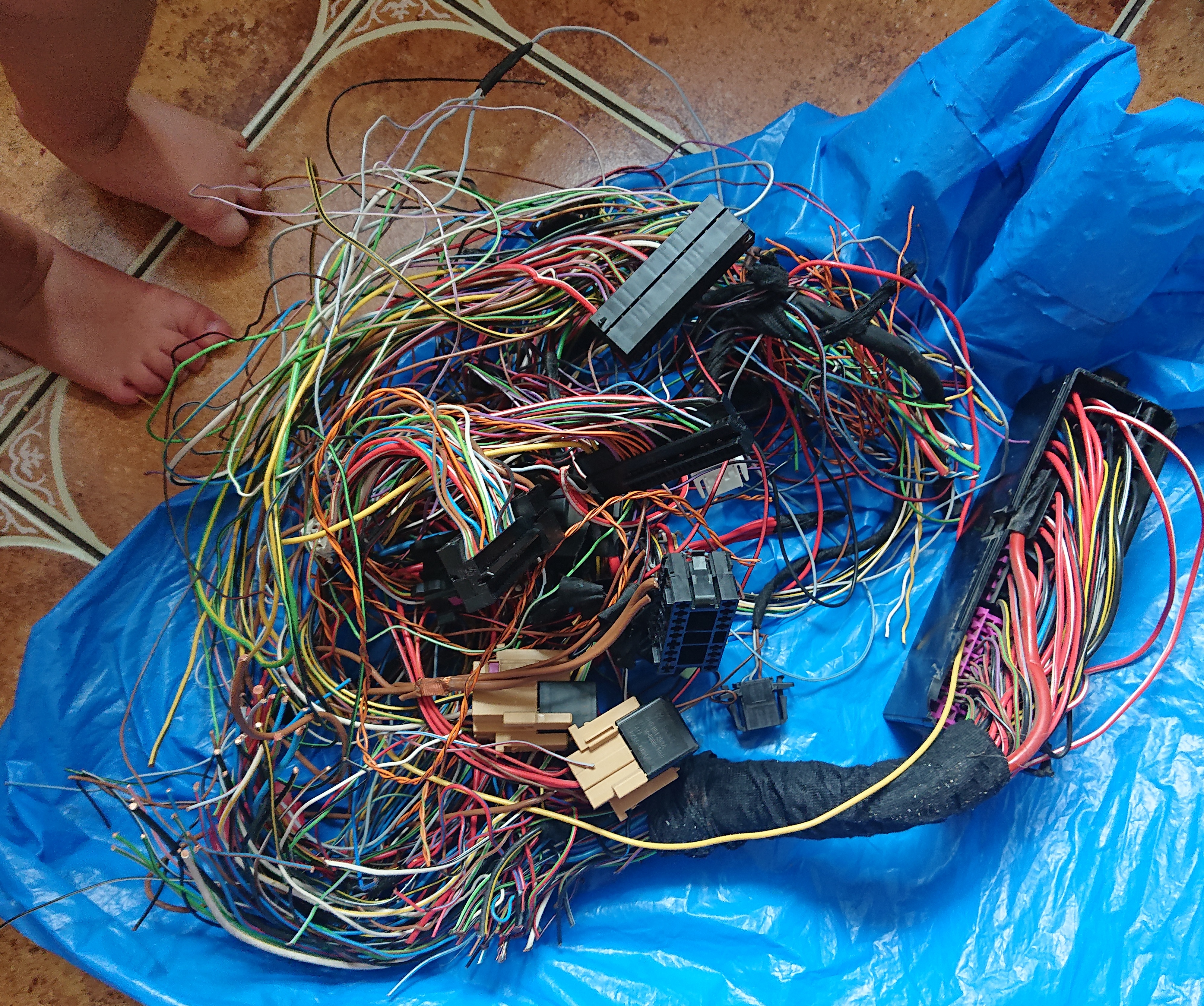

- DSC_0821.JPG (4.95 MiB) Viewed 4748 times
-

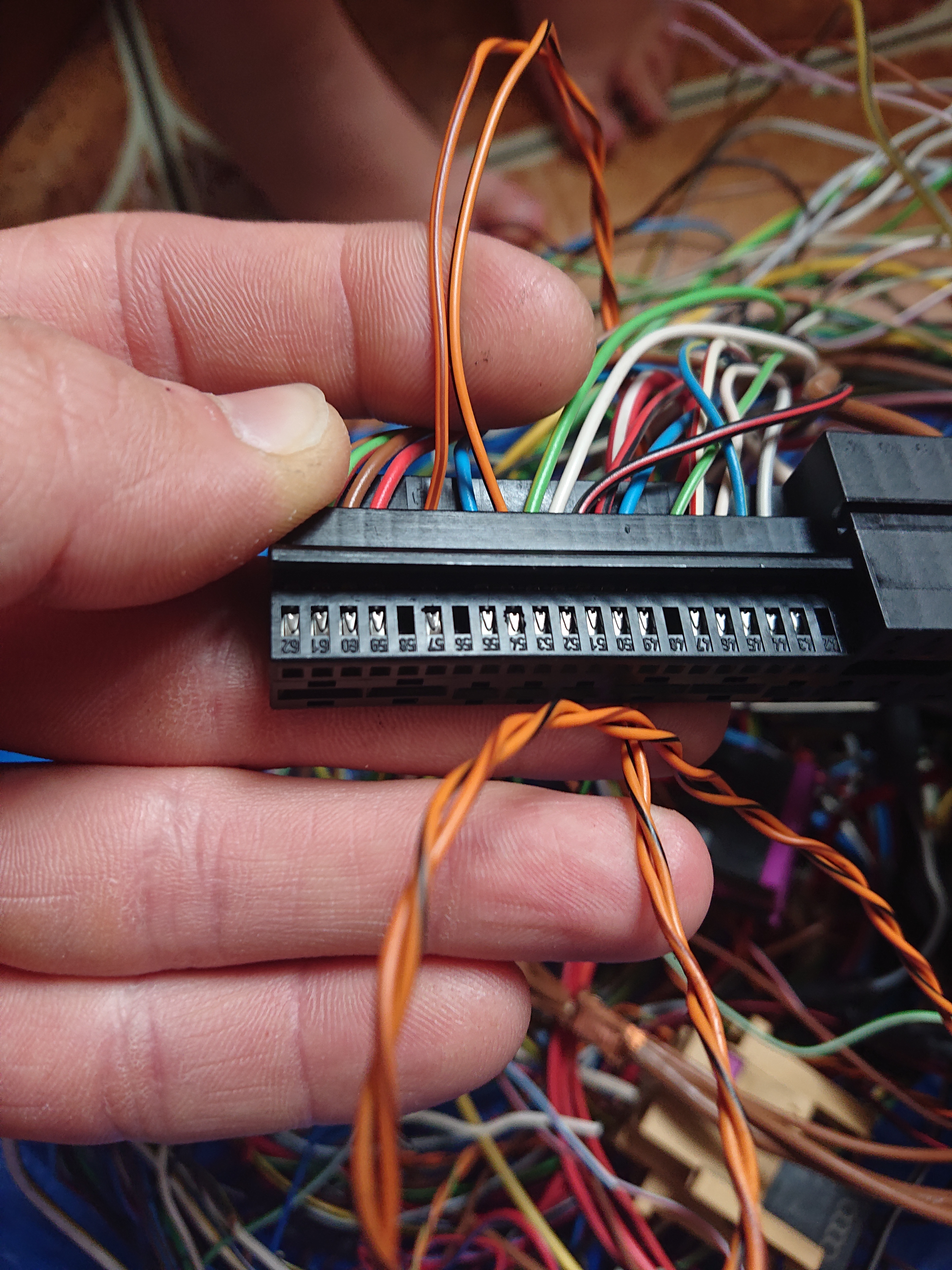

- DSC_0820.JPG (6.49 MiB) Viewed 4748 times
-
iichel
- Bling Bling Diamond Member
- Posts: 6403
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Your car does not have these cables, only cars with BCM 090 will have them.
-
ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
+1
Those wiring looms will be perfect for our purpose
, they confirm our suspicions and knowledge about your 7H0 BCM Max and PQ25 platform...- edit:
If everything goes well with the new CAN lines for your 7H0 BCM Max, the study for the rest of the wires and correct BCM coding for Automatic lights + CH & LH is already done ...
By the way, you have very small feet and large hands, which confirms that this forum helps all kinds of beings ...
-
ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
You have to tell me exactly the month of manufacture of your Ibiza 6J (documentation) and take a clear photo of the BCM 087K serial number if it is the original/factory BCM.
I downloaded all the SEAT diagrams (all models
) from erWin and there may be discrepancies between those manufactured since June 2012 and those manufactured since November 2012.
I downloaded all the SEAT diagrams (all models
) from erWin and there may be discrepancies between those manufactured since June 2012 and those manufactured since November 2012.-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Hi cyclo, my cables are twisted, but there is no time for assembly, maybe I will find a moment today to cover it, on August 26 I will be posting info on whether the windows are working on 7h0937090 to go further with the work on ibiza production of my ibiza 04.2012 BCM 6R0937087K Z11, 7H0937090 comes from Ibiza 6j5 03.2013
production of my ibiza 04.2012 BCM 6R0937087K Z11, 7H0937090 comes from Ibiza 6j5 03.2013 -
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
- Attachments
-

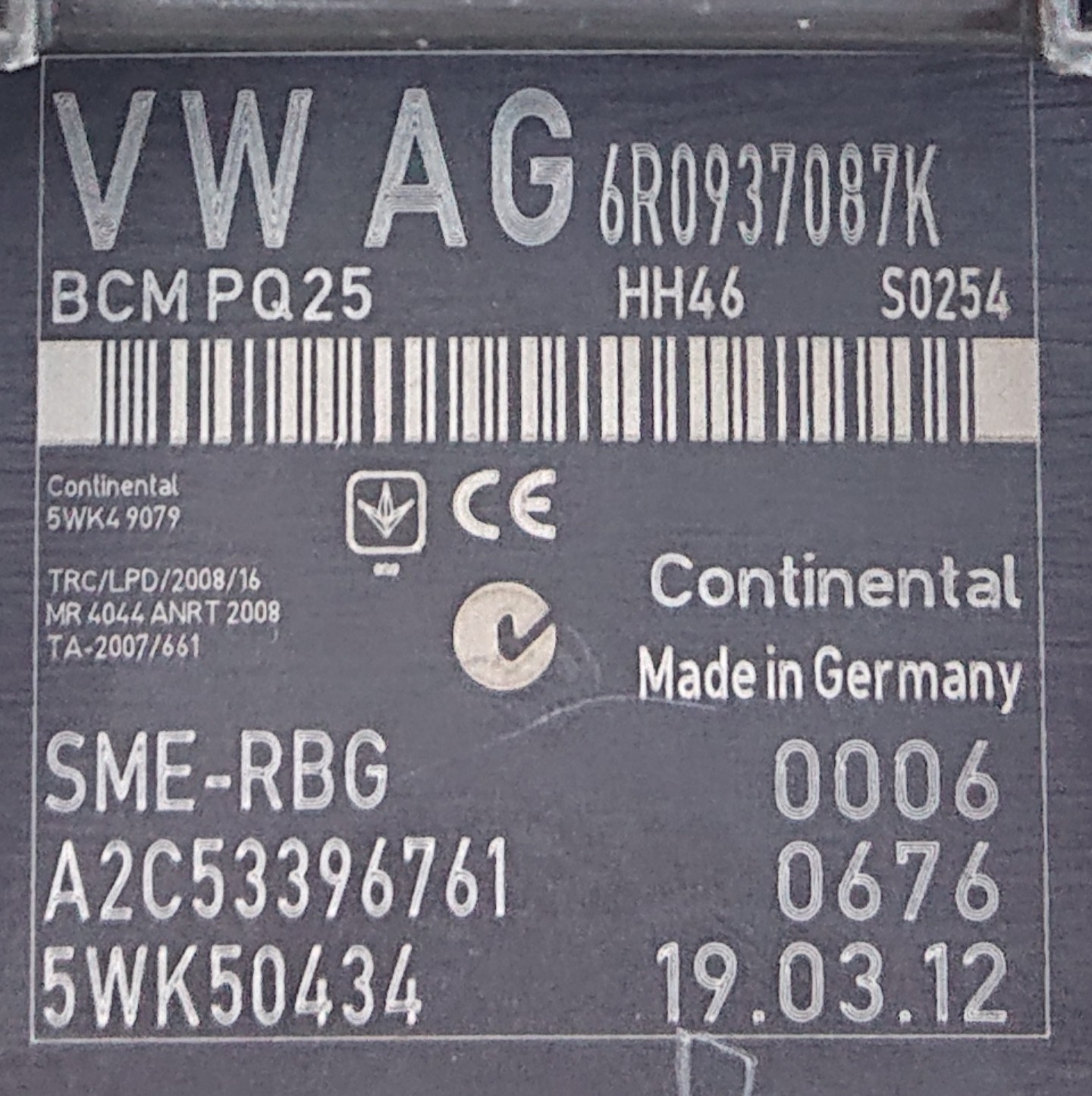

- _20210824_175348.JPG (392.39 KiB) Viewed 4520 times
-
ciclo
- Bling Bling Diamond Member
- Posts: 7841
- Joined: Sun Feb 24, 2013 10:20 am
- Drives: 6R'13/G7.5'19
- Location: Earth ♥, sPAIN, Magiclands (Mordor).
- Contact:
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Thanks.
Ok, ok, now I understand some technical questions related to the VIN and the diagrams and that are not important to be explained.
Well, assuming that the new CAN lines will make the 7H0 BCM better manage the control units in your Ibiza, the next step is to feed the 7H0 BCM so that it can subsequently exercise full control over the low/dipped beams. Currently your dipped beams are managed/powered by relay J331.
Relay J331 is activated according to headlight models.
- From light switch ... for H7 dual headlights.
- From light switch + steering combination switch (HB/LB stalk/lever) ... for H4 headlights.
With 7H0 BCM this relay is not necessary (it must be removed, first remove and isolate the blue wire on the light switch T17/7), however this relay (holder/adapter) receives a RED power wire that is perfect for you to feed two pins of your 7H0 BCM, T73a/63 and T73b/68, from this RED wire.
Note (minor): These two new red/white wires also feed other pins on the 7H0 BCM (lights and BCM internals), which will cause some diagnostic faults. Some faults can be corrected by coding, but others cannot, and new wires must be installed to avoid diagnostic faults. Don't worry at this time, it has an easy solution.
---
The next step is to connect directly to the BCM connectors the Yellow and Yellow/Black wires that you remove from the output of the SC57 and SC58 fuses. The following diagrams shows the assignment.
---
The next step is to add a new 0.5mm2 wire from the SC36 fuse output to T73a/62.
---
The next step is to add the headlight control relay that will make automatic low beam control possible. This relay is called J828.
I show you in images/diagrams the identification and what you must do to install this relay.
Indentification:
Installation:
---
The next step is to add 5 new wires. Light switch - BCM - Dimmer. 58 signal, 58 power supply (58d), License plate lights, Auto function.
Note: If in your previous wire installation in the light switch you have done something different or if any of these 5 wires are joined together to achieve some trick
, your installation is not correct.
To install these 5 new wires follow the order that I have established in the following diagram (download the image to see it enlarged).
---
The next step is to have the reversing light (back-up light) and rear fog light under BCM control.
To avoid confusion, I explain what you should do instead of showing it in diagrams.
Reversing light:
Only for manual gearbox, for DSG it is not necessary to do this step.
Explained for LHD models. For RHD models, it is the same but in the opposite taillight.
- Remove and isolate the original T6/4 wire from the right taillight connector.
- Add a new 0.5 mm2 wire from T73b/12 to T6/4. ...(5.5 - 6.5m)
Rear fog light:
- Remove the original wire T17/9 from the light switch and splice a new 1.0mm2 wire to this original wire, take/run this new wire up to T73a/6 BCM black connector.
- Add a new 0.5mm2 wire from T17/9 to T73b/43 BCM white connector.
---
Daytime running lights (DRL) (TFL -Tagfahrlicht-) for retrofitted 6P halogen headlights (PQ26) on an Ibiza 6J with an adapted BCM Max (PQ25).
Installation:
From Light switch - to BCM.
- Install a new 0.5mm2 wire from T17/3 light switch connector to T73b/29 BCM white connector.
From BCM - to 6P Halogen headlights with LED module.
The 6P Halogen headlights LED modules receive two power signals from the BCM, the one dedicated to the DRLs and the one dedicated to the Sidelights/Parking Lights.
Left headlight (two new 0.5mm2 wires).
DRL.
- Install a new wire from T73b/3 to T10/4 in headlight connector.
Parking/Side light.
Edition, November 11, 2021.
Do not perform the next step for parking lights. Reason here
viewtopic.php?p=587292#p587292
- Remove and isolate original T10/10 in headlight connector.
- Install a new wire from T73b/5 to T10/10.
Right headlight (two new 0.5mm2 wires).
DRL.
- Install a new wire from T73a/5 to T10/4 in headlight connector.
Parking/Side light.
Edition, November 11, 2021.
Do not perform the next step for parking lights. Reason here viewtopic.php?p=587292#p587292
- Remove and isolate original T10/10 in headlight connector.
- Install a new wire from T73b/6 to T10/10.
---
After doing this installation/adaptation it is necessary to code the BCM Max.
---
Editing ... please wait.. step by step, do not do anything at the moment until you know the results of the new CAN lines ... (SOLVED!)
I will support this info with diagrams and images.
Ok, ok, now I understand some technical questions related to the VIN and the diagrams and that are not important to be explained.
Well, assuming that the new CAN lines will make the 7H0 BCM better manage the control units in your Ibiza, the next step is to feed the 7H0 BCM so that it can subsequently exercise full control over the low/dipped beams. Currently your dipped beams are managed/powered by relay J331.
Relay J331 is activated according to headlight models.
- From light switch ... for H7 dual headlights.
- From light switch + steering combination switch (HB/LB stalk/lever) ... for H4 headlights.
With 7H0 BCM this relay is not necessary (it must be removed, first remove and isolate the blue wire on the light switch T17/7), however this relay (holder/adapter) receives a RED power wire that is perfect for you to feed two pins of your 7H0 BCM, T73a/63 and T73b/68, from this RED wire.
Note (minor): These two new red/white wires also feed other pins on the 7H0 BCM (lights and BCM internals), which will cause some diagnostic faults. Some faults can be corrected by coding, but others cannot, and new wires must be installed to avoid diagnostic faults. Don't worry at this time, it has an easy solution.
---
The next step is to connect directly to the BCM connectors the Yellow and Yellow/Black wires that you remove from the output of the SC57 and SC58 fuses. The following diagrams shows the assignment.
---
The next step is to add a new 0.5mm2 wire from the SC36 fuse output to T73a/62.
---
The next step is to add the headlight control relay that will make automatic low beam control possible. This relay is called J828.
I show you in images/diagrams the identification and what you must do to install this relay.
Indentification:
Installation:
---
The next step is to add 5 new wires. Light switch - BCM - Dimmer. 58 signal, 58 power supply (58d), License plate lights, Auto function.
Note: If in your previous wire installation in the light switch you have done something different or if any of these 5 wires are joined together to achieve some trick
, your installation is not correct.To install these 5 new wires follow the order that I have established in the following diagram (download the image to see it enlarged).
---
The next step is to have the reversing light (back-up light) and rear fog light under BCM control.
To avoid confusion, I explain what you should do instead of showing it in diagrams.
Reversing light:
Only for manual gearbox, for DSG it is not necessary to do this step.
Explained for LHD models. For RHD models, it is the same but in the opposite taillight.
- Remove and isolate the original T6/4 wire from the right taillight connector.
- Add a new 0.5 mm2 wire from T73b/12 to T6/4. ...(5.5 - 6.5m)
Rear fog light:
- Remove the original wire T17/9 from the light switch and splice a new 1.0mm2 wire to this original wire, take/run this new wire up to T73a/6 BCM black connector.
- Add a new 0.5mm2 wire from T17/9 to T73b/43 BCM white connector.
---
Daytime running lights (DRL) (TFL -Tagfahrlicht-) for retrofitted 6P halogen headlights (PQ26) on an Ibiza 6J with an adapted BCM Max (PQ25).
Installation:
From Light switch - to BCM.
- Install a new 0.5mm2 wire from T17/3 light switch connector to T73b/29 BCM white connector.
From BCM - to 6P Halogen headlights with LED module.
The 6P Halogen headlights LED modules receive two power signals from the BCM, the one dedicated to the DRLs and the one dedicated to the Sidelights/Parking Lights.
Left headlight (two new 0.5mm2 wires).
DRL.
- Install a new wire from T73b/3 to T10/4 in headlight connector.
Parking/Side light.
Edition, November 11, 2021.
Do not perform the next step for parking lights. Reason here
viewtopic.php?p=587292#p587292 - Remove and isolate original T10/10 in headlight connector.
- Install a new wire from T73b/5 to T10/10.
Right headlight (two new 0.5mm2 wires).
DRL.
- Install a new wire from T73a/5 to T10/4 in headlight connector.
Parking/Side light.
Edition, November 11, 2021.
Do not perform the next step for parking lights. Reason here
viewtopic.php?p=587292#p587292 - Remove and isolate original T10/10 in headlight connector.
- Install a new wire from T73b/6 to T10/10.
---
After doing this installation/adaptation it is necessary to code the BCM Max.
---
Editing ... please wait.. step by step, do not do anything at the moment until you know the results of the new CAN lines ... (SOLVED!)
I will support this info with diagrams and images.
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Cables T32 / 29 - -> T73B / 57, T32 / 28 ---> T73b / 54 when released, the car does not start the windows do not work
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Original cables T32 / 28, T32 / 29 removed and individually insulated, something wrong is my ibiza resistant to modification?
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
https://youtube.com/shorts/DHhIZ_aSoVQ?feature=share
https://youtube.com/shorts/knHXhTaAh5s?feature=share
In the evening I will throw in an autoscan
https://youtube.com/shorts/knHXhTaAh5s?feature=share
In the evening I will throw in an autoscan
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Code: Select all
Typ podwozia: 6J-SE25 (6N0)
Skanowanie: 01 03 04 08 09 15 17 19 25 2E 44 4B 56 77
VIN: VSSZZZ6JZDR026882
01-Silnik -- Stan: Usterka 0010
03-ABS/hamulce -- Stan: Usterka 0010
04-Kąt skrętu kierow. -- Stan: OK 0000
08-Klimatyzacja -- Stan: Usterka 0010
09-Centr.zesp.elektr. -- Stan: Usterka 0010
15-Airbag -- Stan: Usterka 0010
17-Zest.wskaźników -- Stan: OK 0000
19-CAN Gateway -- Stan: OK 0000
25-Immobiliser -- Stan: OK 0000
2E-Media Player 3 -- Stan: OK 0000
44-Wsp.kierownicy -- Stan: Usterka 0010
4B-Moduł wielofunkc. -- Stan: Usterka 0010
56-Radio -- Stan: Usterka 0010
77-Telefon -- Stan: Usterka 0010
-------------------------------------------------------------------------------
Adres 01: Silnik Plik etykiet: 03C-906-024-BXW.lbl
Oznaczenie elementu SW: 03C 906 024 CD HW: 03C 906 024 CD
Komponent: CGGB MM4HV G 8548
Weryfikacja: --H09--- Numer seryjny:
Kodowanie: 0000071
Kod serwisu: WSC 00200 935 12345
VCID: 62CB1F8FBE4FB89BB5-5178
2 - ilość znalezionych błędów. Oto one:
17978 - Sterownik silnika zablokowany przez immobiliser
P1570 - 000 -
Ramka zamrożona:
Stan błędu: 01100000
Priorytet błędu: 2
Częstość błędu: 1
Wew.licznik błędów: 162
Wskaźnik czasu: 0
Ramka zamrożona:
Bity binarnie: 00000001
Obciążenie: 25.9 %
Lambda: 0.0 %
Prędkość: 0.0 km/h
Temperatura: 72.0*C
Ciśnienie rzecz.: 303.6 mbar
Obroty silnika: 969 /min
28827 - Brak komunikacji z zestawem wskaźników
U0155 - 000 -
Ramka zamrożona:
Stan błędu: 01100000
Priorytet błędu: 6
Częstość błędu: 1
Wew.licznik błędów: 162
Wskaźnik czasu: 0
Ramka zamrożona:
Bity binarnie: 00000100
Obciążenie: 0.0 %
Lambda: 0.0 %
Prędkość: 0.0 km/h
Temperatura: 56.0*C
Ciśnienie rzecz.: 975.4 mbar
Obroty silnika: 0 /min
Kody gotowości: 0110 0001
-------------------------------------------------------------------------------
Adres 03: ABS/hamulce (J104) Plik etykiet:. 6R0-907-37x-ESP82.clb
Oznaczenie elementu SW: 6R0 907 379 BC HW: 6R0 907 379 AF
Komponent: ESP8.2i front H05 0002
Weryfikacja: --------
Kodowanie: 110224DB216F00B8882D24EA84D300401100
Kod serwisu: WSC 00200 935 12345
VCID: 000F350797030A8BC3-8054
2 - ilość znalezionych błędów. Oto one:
01317 - Sterownik w zestawie wskaźników (J285)
004 - Brak sygnału / brak komunikacji
Ramka zamrożona:
Stan błędu: 01100100
Priorytet błędu: 0
Częstość błędu: 3
Wew.licznik błędów: 167
Przebieg: 0 km
Wskaźnik czasu: 0
Ramka zamrożona:
Wartość Hex: 0x0007
Wartość Hex: 0x0000
Wartość Hex: 0x3011
Wartość Hex: 0x259A
Wartość Hex: 0x007F
Wartość Hex: 0x7F7F
Wartość Hex: 0x7FF8
00474 - Sterownik immobilisera
004 - Brak sygnału / brak komunikacji
Ramka zamrożona:
Stan błędu: 01100100
Priorytet błędu: 0
Częstość błędu: 3
Wew.licznik błędów: 167
Przebieg: 0 km
Wskaźnik czasu: 0
Ramka zamrożona:
Wartość Hex: 0x0000
Wartość Hex: 0x0000
Wartość Hex: 0x3032
Wartość Hex: 0x149A
Wartość Hex: 0x007F
Wartość Hex: 0x7F7F
Wartość Hex: 0x7FF8
-------------------------------------------------------------------------------
Adres 08: Klimatyzacja (J255) Plik etykiet: 6R0-907-044.clb
Oznaczenie elementu SW: 6J0 820 043 D HW: 6J0 820 043 D
Komponent: Climatronic H08 0707
Weryfikacja: S0000000
VCID: 254144932CE10FA390-8070
Znaleziono 1 błąd:
01317 - Sterownik w zestawie wskaźników (J285)
004 - Brak sygnału / brak komunikacji
Ramka zamrożona:
Stan błędu: 01100100
Priorytet błędu: 6
Częstość błędu: 1
Wew.licznik błędów: 167
Wskaźnik czasu: 0
-------------------------------------------------------------------------------
Adres 09: Centr.zesp.elektr. (J519) Plik etykiet:. 7H0-937-08x-09.clb
Oznaczenie elementu SW: 7H0 937 090 HW: 7H0 937 090
Komponent: BCM PQ25 Max4 H72 0708
Weryfikacja: B9072001 Numer seryjny: 0531 063131236
Kodowanie: 7C8829F8C861010001200EF07EA80EC8F0C042FF60842040200000000000
Kod serwisu: WSC 00200 935 12345
VCID: 6BD572AB8A85F9D306-803E
Podsystem 1 - Oznaczenie elementu: 1K0 955 559 AH Plik etykiet: 1K0-955-559-AG.CLB
Komponent: RLS 120315 05 54 0403
Kodowanie: 07302D
Podsystem 2 - Oznaczenie elementu SW: 6R0 959 801 AK HW: 6R0 959 801 AK Plik etykiet: 6R0-959-801.CLB
Komponent: J386__TSG_FT 007 5110
Numer seryjny: --------------------
Kodowanie: 020000
Podsystem 3 - Oznaczenie elementu SW: 6R0 959 802 AR HW: 6R0 959 802 AR Plik etykiet: 6R0-959-802.CLB
Komponent: J387__TSG_BT 007 5110
Numer seryjny: --------------------
Kodowanie: 020000
2 - ilość znalezionych błędów. Oto one:
01516 - Zacisk 30 po lewej stronie
011 - Przerwa w obwodzie
Ramka zamrożona:
Stan błędu: 01101011
Priorytet błędu: 3
Częstość błędu: 1
Wew.licznik błędów: 167
Wskaźnik czasu: 0
00927 - Zacisk 30 po prawej stronie
011 - Przerwa w obwodzie
Ramka zamrożona:
Stan błędu: 01101011
Priorytet błędu: 3
Częstość błędu: 1
Wew.licznik błędów: 167
Wskaźnik czasu: 0
-------------------------------------------------------------------------------
Adres 15: Airbag (J234) Plik etykiet:| 5K0-959-655.clb
Oznaczenie elementu SW: 6R0 959 655 K HW: 6R0 959 655 K
Komponent: VW10AirbagA01 H10 0020
Weryfikacja: -------- Numer seryjny: 003GX016A6B0
Kodowanie: 003031
Kod serwisu: WSC 06401 785 00200
Zbiór danych ASAM: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4A9BD72FEDBF00DB5D-801E
Czujnik zderzenia bocznej poduszki bezpieczeństwa kierowcy:
Numer seryjny: 3495RRB406316Q1G31E
Czujnik zderzenia bocznej poduszki bezpieczeństwa po stronie przedniego pasażera:
Numer seryjny: 3505RRB405117HSIJ13A
2 - ilość znalezionych błędów. Oto one:
12670208 - Magistrala danych
U1122 00 [009] - niewiarygodna informacja
[Nowa funkcja - rozszerzone informacje o kodach błędów (protokół UDS) - jest dostępna wyłącznie przy użyciu najnowszych interfejsów, oferowanych na VCDS
Potwierdzony - Testowany od skasowania kodów błędów
Ramka zamrożona:
Stan błędu: 00000001
Priorytet błędu: 6
Częstość błędu: 1
Wew.licznik błędów: 167
Przebieg: 0 km
Data: 2000.00.00
Czas: 00:00:00
12674816 - Magistrala danych
U1122 00 [009] - niewiarygodna informacja
[Nowa funkcja - rozszerzone informacje o kodach błędów (protokół UDS) - jest dostępna wyłącznie przy użyciu najnowszych interfejsów, oferowanych na VCDS
Potwierdzony - Testowany od skasowania kodów błędów
Ramka zamrożona:
Stan błędu: 00000001
Priorytet błędu: 6
Częstość błędu: 1
Wew.licznik błędów: 167
Przebieg: 0 km
Data: 2000.00.00
Czas: 00:00:00
-------------------------------------------------------------------------------
Adres 17: Zest.wskaźników
Nie może być osiągnięty
-------------------------------------------------------------------------------
Adres 19: CAN Gateway (J533) Plik etykiet:. 6N0-909-901-6R.clb
Oznaczenie elementu SW: 6N0 909 901 HW: 7H0 937 090
Komponent: GW-K-CAN TP20 H72 0708
Weryfikacja: B9072001
Kodowanie: 422000
Kod serwisu: WSC 00200 935 12345
VCID: 70EF65C7A3A31A0B33-8024
2 - ilość znalezionych błędów. Oto one:
02830 - Sterowanie mag.CAN jedn.odłączania syst.wspomagających kierowcę
000 - -
Ramka zamrożona:
Stan błędu: 01100000
Priorytet błędu: 3
Częstość błędu: 1
Wew.licznik błędów: 167
Wskaźnik czasu: 0
00381 - Magistrala danych zestawu wskaźników
014 - wadliwy
Ramka zamrożona:
Stan błędu: 01101110
Priorytet błędu: 1
Częstość błędu: 1
Wew.licznik błędów: 167
Wskaźnik czasu: 0
-------------------------------------------------------------------------------
Adres 25: Immobiliser
Nie może być osiągnięty
-------------------------------------------------------------------------------
Adres 2E: Media Player 3 (J650) Plik etykiet:. 5N0-035-342.lbl
Oznaczenie elementu SW: 6J0 035 342 E HW: 6J0 035 342 E
Komponent: SG EXT.PLAYER H13 0240
Weryfikacja: A1001003 Numer seryjny: 7662260740
Kodowanie: 020000
Kod serwisu: WSC 64564 324 38760
VCID: 2643439F51E704BB99-8072
Nie znaleziono błędów.
-------------------------------------------------------------------------------
Adres 44: Wsp.kierownicy Plik etykiet: 6Q0-423-156.clb
Oznaczenie elementu: 6R0 423 156 B
Komponent: LenkhilfeTRW V277
Kodowanie: 11211
Kod serwisu: WSC 06402
VCID: 2F6DA6BBEA1D45F36A-807A
Znaleziono 1 błąd:
01317 - Sterownik w zestawie wskaźników (J285)
49-00 - Brak komunikacji
-------------------------------------------------------------------------------
Adres 4B: Moduł wielofunkc. Plik etykiet: 6J0-959-441.clb
Oznaczenie elementu: 6J0 959 441 A
Komponent: MF-Modul 0007 0001
Kodowanie: 0000002
Kod serwisu: WSC 77005 000 00000
VCID: 3169A0C3A82953037C-8064
Znaleziono 1 błąd:
00470 - Grupowa magistrala danych układu komfortu w jednoprzewodowym trybie pracy
011 - Przerwa w obwodzie - Sporadyczny
-------------------------------------------------------------------------------
Adres 56: Radio (J503) Plik etykiet:. 6J0-035-153.clb
Oznaczenie elementu SW: 6J1 035 153 G HW: 6J1 035 153 G
Komponent: Radio H15 0204
Weryfikacja: R0000000 Numer seryjny: SEZAZ2M4042195
Kodowanie: 0001040002
Kod serwisu: WSC 04941 000 00000
VCID: 295948A340F92BC3B4-807C
Nie znaleziono błędów.
-------------------------------------------------------------------------------
Adres 77: Telefon (J412) Plik etykiet:| 7P6-035-730.clb
Oznaczenie elementu SW: 7P6 035 730 F HW: 7P6 035 730 F
Komponent: TELEFON H09 2730
Weryfikacja: 1B001001 Numer seryjny: 00007662181617
Kodowanie: 0E00000001010110
Kod serwisu: WSC 06402 785 00200
Zbiór danych ASAM: EV_UHVNA A01015
ROD: EV_UHVNA_A01_VW25.rod
VCID: 356194D394417F2320-8060
Znaleziono 1 błąd:
12670208 - Brak komunikacji z zestawem wskaźników
U0155 00 [009] - -
[Nowa funkcja - rozszerzone informacje o kodach błędów (protokół UDS) - jest dostępna wyłącznie przy użyciu najnowszych interfejsów, oferowanych na VCDS]
Potwierdzony - Testowany od skasowania kodów błędów
Ramka zamrożona:
Stan błędu: 00000001
Priorytet błędu: 6
Częstość błędu: 1
Wew.licznik błędów: 162
Koniec --------------------(Skanowanie trwało: 02:54)----------------------
-
iichel
- Bling Bling Diamond Member
- Posts: 6403
- Joined: Fri Nov 14, 2014 2:14 pm
- Drives: Polo 6R 2.0 TDI, Passat B8 2.0 TSI
- Location: http://mypassat.nl/
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Could you please install the English version of vcds?
-
KamilPL
- Bronze Member
- Posts: 125
- Joined: Tue Aug 03, 2021 4:26 pm
- Drives: Seat Ibiza 6j1
- Location: Poland
Re: Ibiza 6j1 2012 Upgrade BCM 6R0937087K--->7H0937090 Cyclo HELP :)
Yes, I can, but it's only tomorrow because I do not have access to the EN program installation
